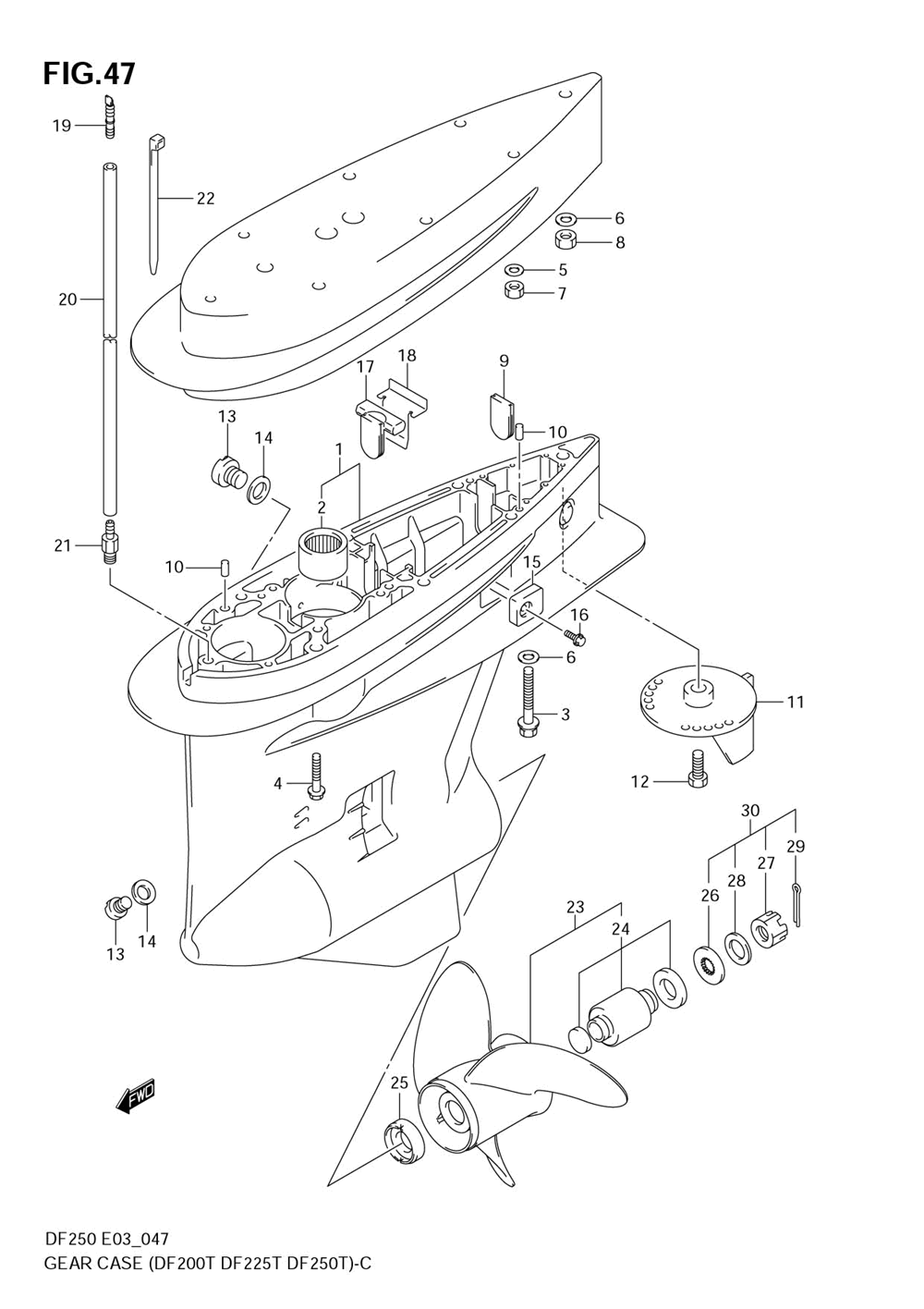

Gear case (df200t

Suzuki Marine DF200/DF225/DF250

Gear case (df200t

#

oem код

название

цена

1-1

55110-93J20-0EP

Case Comp, Gear ()

Case Comp, Gear ()

2-1

Brg, Pinion, 32x4 ()

Brg, Pinion, 32x4 ()

2-2

.bearing, Pinion (df200t:510124~df225t:510043~df250t:510308~)

.bearing, Pinion (df200t:510124~df225t:510043~df250t:510308~)

3

Bolt L:70(sus) (type:l, X)

Bolt L:70(sus) (type:l, X)

4

Bolt, 10x55 (type:l, X)

Bolt, 10x55 (type:l, X)

5

Washer (10.5x19x2) (type:xx<-09160-10082)

Washer (10.5x19x2) (type:xx<-09160-10082)

6

.washer (12.5x22x2.5) ()

.washer (12.5x22x2.5) ()

7

Nut (type:xx<-09140-10031)

Nut (type:xx<-09140-10031)

8

Nut (type:xx)

Nut (type:xx)

9

Grommet ()

Grommet ()

10

Pin ()

Pin ()

11

55125-98J00-0EP

Tab, Trim ()

Tab, Trim ()

12

Bolt, 8x22 (<-09116-08121)

Bolt, 8x22 (<-09116-08121)

13-1

Plug, Drain (df200t:510124~df225t:510043~df250t:510308~)

Plug, Drain (df200t:510124~df225t:510043~df250t:510308~)

14-1

Gasket, Drain Pl (df200t:510124~df225t:510043~df250t:510308~)

Gasket, Drain Pl (df200t:510124~df225t:510043~df250t:510308~)

15

Zinc Set, Protec ()

Zinc Set, Protec ()

16

Bolt, 6x15 ()

Bolt, 6x15 ()

17

Rubber, Exhaust ()

Rubber, Exhaust ()

18

Plate, Exhaust S ()

Plate, Exhaust S ()

19

Union, Speedomet ()

Union, Speedomet ()

20-1

09355-40805-00B

Hose (type:l, Xl:2000->1600l:2000->1700 Model:05~08type:xxl:2000->1700)

Hose (type:l, Xl:2000->1600l:2000->1700 Model:05~08type:xxl:2000->1700)

21

Nipple ()

Nipple ()

22

.clamp, Harness (l:140) ()

.clamp, Harness (l:140) ()

23-1

99105-00800-17P

Ssprop Dfv63x16 (not For Us Market)

Ssprop Dfv63x16 (not For Us Market)

23-2

99105-00800-185

Ssprop Dfv63x16 (not For Us Market)

Ssprop Dfv63x16 (not For Us Market)

23-3

99105-00800-20P

Ssprop Dfv63x16 (not For Us Market)

Ssprop Dfv63x16 (not For Us Market)

23-4

99105-00800-215

Ssprop Dfv63x16 (not For Us Market)

Ssprop Dfv63x16 (not For Us Market)

23-5

99105-00800-23P

Ssprop Dfv63x16 (not For Us Market)

Ssprop Dfv63x16 (not For Us Market)

23-6

99105-00800-245

Ssprop Dfv63x16 (not For Us Market)

Ssprop Dfv63x16 (not For Us Market)

24

Bush Set, Propel (opt)

Bush Set, Propel (opt)

25-1

Stopper, Propell ()

Stopper, Propell ()

26

Spacer, Nut(t:6. ()

Spacer, Nut(t:6. ()

27

Гайка

Гайка

28

Washer (18.5x31x1.0) ()

Washer (18.5x31x1.0) ()

29

Cotter Pin (l:25) ()

Cotter Pin (l:25) ()

30

Prop Hdwr V-6 M (opt)

Prop Hdwr V-6 M (opt)

31

Lu Sealkit Df V (opt Not Shown)

Lu Sealkit Df V (opt Not Shown)
