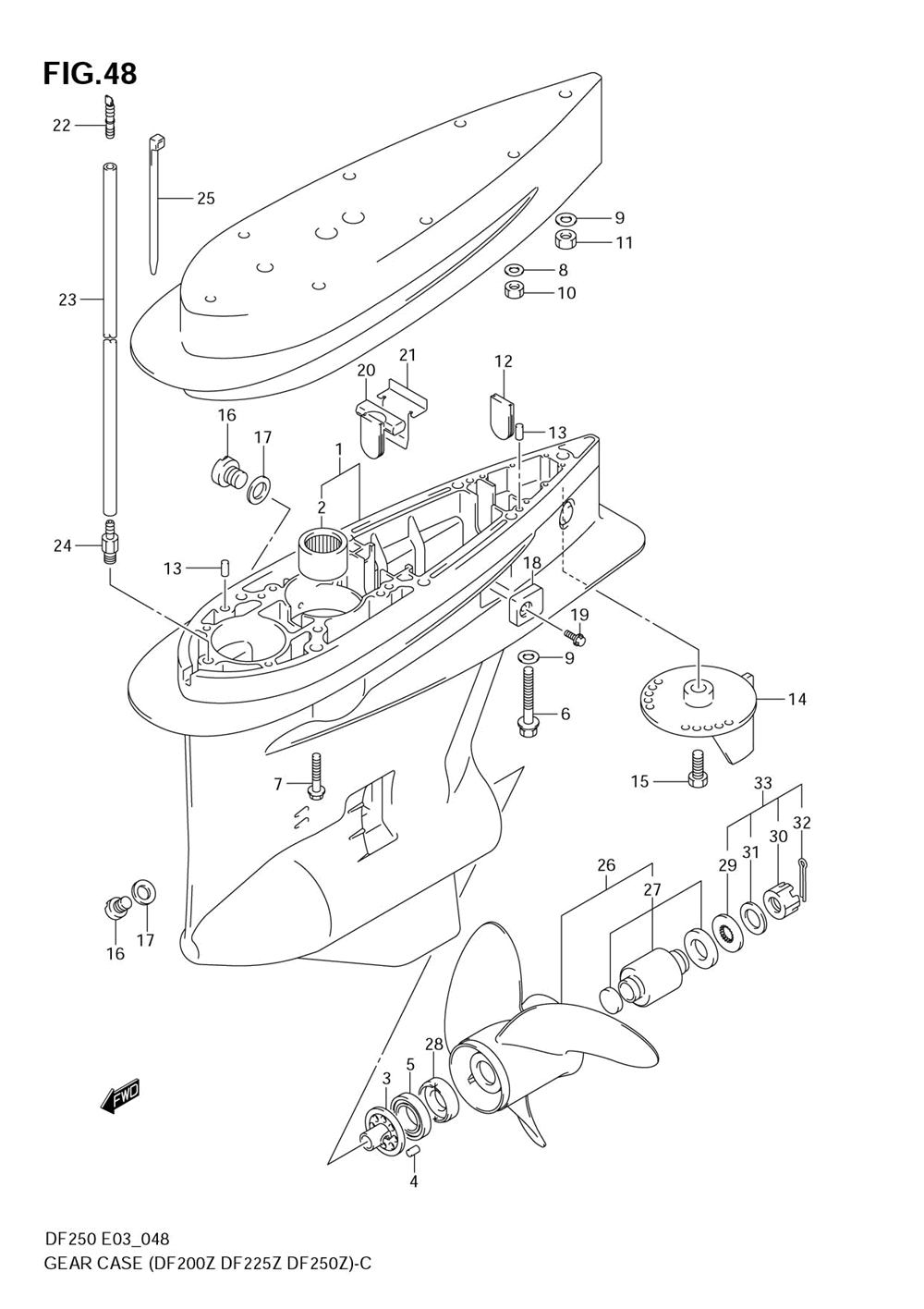

Gear case (df200z

Suzuki Marine DF200/DF225/DF250

Gear case (df200z

#

oem код

название

цена

1-1

55110-93J30-0EP

Case Comp, Gear ()

Case Comp, Gear ()

2-1

Brg, Pinion, 32x4 ()

Brg, Pinion, 32x4 ()

2-2

.bearing, Pinion (df200z:510023~df225z:510008~df250z:510070~)

.bearing, Pinion (df200z:510023~df225z:510008~df250z:510070~)

3

Housing, Shift C ()

Housing, Shift C ()

4

.pin, Shift Cam Housing ()

.pin, Shift Cam Housing ()

5

.bearing, Fwd Thrust ()

.bearing, Fwd Thrust ()

6

Bolt L:70(sus) (type:x)

Bolt L:70(sus) (type:x)

7

Bolt, 10x55 (type:x)

Bolt, 10x55 (type:x)

8

Washer (10.5x19x2) (type:xx<-09160-10082)

Washer (10.5x19x2) (type:xx<-09160-10082)

9

.washer (12.5x22x2.5) ()

.washer (12.5x22x2.5) ()

10

Nut (type:xx<-09140-10031)

Nut (type:xx<-09140-10031)

11

Nut (type:xx)

Nut (type:xx)

12

Grommet ()

Grommet ()

13

Pin ()

Pin ()

14

55125-98J00-0EP

Tab, Trim ()

Tab, Trim ()

15

Bolt, 8x22 (<-09116-08121)

Bolt, 8x22 (<-09116-08121)

16-1

Plug, Drain (df200z:510023~df225z:510008~df250z:510070~)

Plug, Drain (df200z:510023~df225z:510008~df250z:510070~)

17-1

Gasket, Drain Pl (df200z:510023~df225z:510008~df250z:510070~)

Gasket, Drain Pl (df200z:510023~df225z:510008~df250z:510070~)

18

Zinc Set, Protec ()

Zinc Set, Protec ()

19

Bolt, 6x15 ()

Bolt, 6x15 ()

20

Rubber, Exhaust ()

Rubber, Exhaust ()

21

Plate, Exhaust S ()

Plate, Exhaust S ()

22

Union, Speedomet ()

Union, Speedomet ()

23-1

09355-40805-00B

Hose (type:xl:2000->1600l:2000->1700 Model:05~08type:xxl:2000->1700)

Hose (type:xl:2000->1600l:2000->1700 Model:05~08type:xxl:2000->1700)

24

Nipple ()

Nipple ()

25

.clamp, Harness (l:140) ()

.clamp, Harness (l:140) ()

26-1

99105-0080L-185

Sspropcrv63x16x (not For Us Market)

Sspropcrv63x16x (not For Us Market)

26-2

99105-0080L-20P

Sspropcrv63x16x (not For Us Market)

Sspropcrv63x16x (not For Us Market)

26-3

99105-0080L-215

Sspropcrv63x16x (not For Us Market)

Sspropcrv63x16x (not For Us Market)

26-4

99105-0080L-23P

Sspropcrv63x16x (not For Us Market)

Sspropcrv63x16x (not For Us Market)

26-5

99105-0080L-17P

Sspropcrdfv63x1 (not For Us Market)

Sspropcrdfv63x1 (not For Us Market)

26-6

99105-0080L-245

Sspropcrv63x16x (not For Us Market)

Sspropcrv63x16x (not For Us Market)

27

Bush Set, Propel (opt)

Bush Set, Propel (opt)

28-1

Stopper, Propell ()

Stopper, Propell ()

29

Spacer, Nut(t:6. ()

Spacer, Nut(t:6. ()

30

Гайка

Гайка

31

Washer (18.5x31x1.0) ()

Washer (18.5x31x1.0) ()

32

Cotter Pin (l:25) ()

Cotter Pin (l:25) ()

33

Prop Hdwr V-6 M (opt)

Prop Hdwr V-6 M (opt)

34

Lu Sealkit Df V (opt Not Shown)

Lu Sealkit Df V (opt Not Shown)
