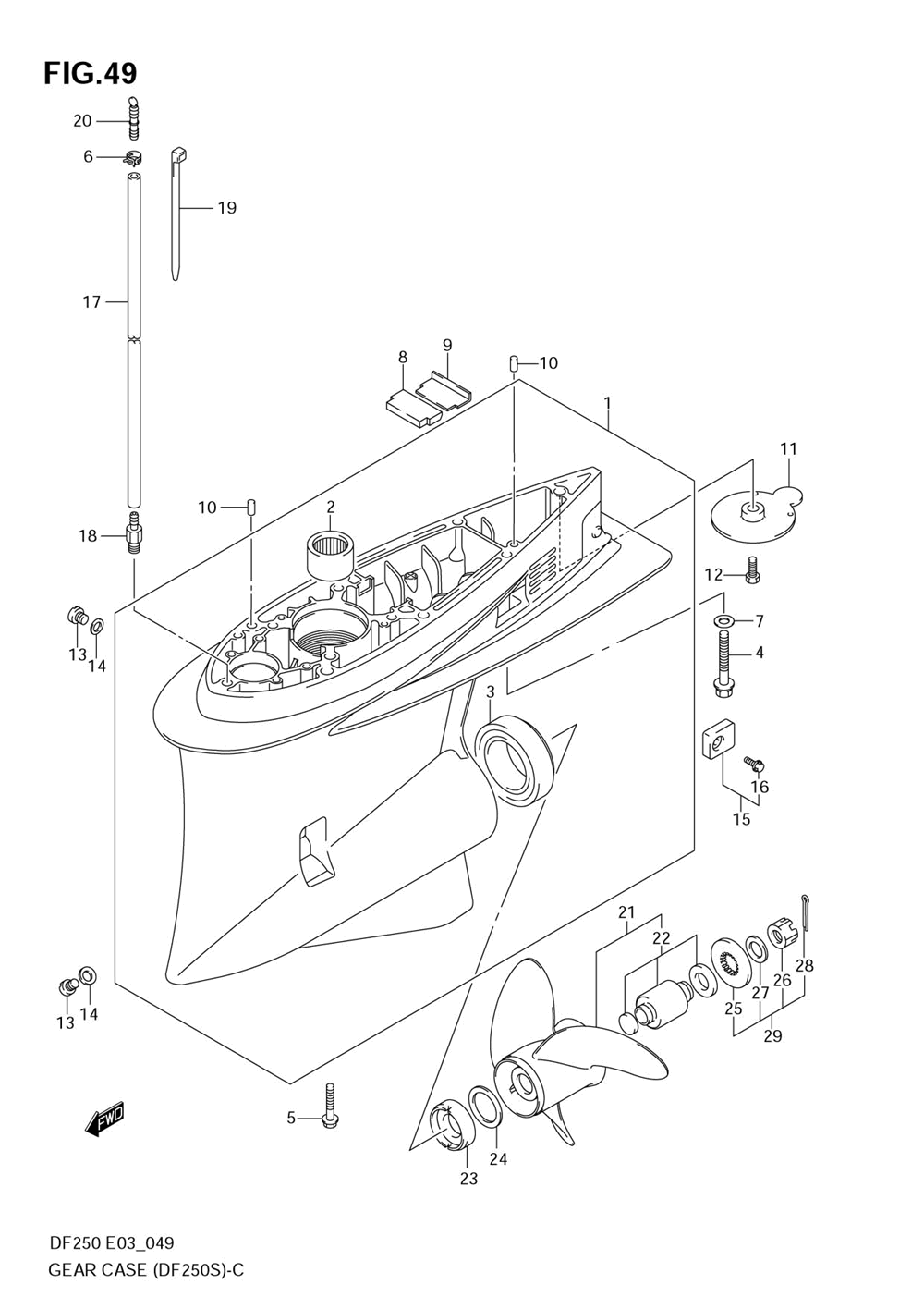

Картер (Gear Case) (DF250S)

Suzuki Marine DF200/DF225/DF250
Suzuki Marine
#oem кодцена
1
55110-98J01-0EP
Case Comp, Gear( ()
2
09263-36004
.bearing, Pinion (36x51x32) ()
3
09265-50001
.bearing, Fwd Gear (50x90x32) ()
4
09100-12052
Bolt L:70(sus) ()
5
09116-10150
Bolt, 10x55 ()
6
09401-08412
Clip ()
7
09160-12066
.washer (12.5x22x2.5) ()
8
55332-98J00
Rubber, Exhaust ()
9
55333-98J00
Plate, Exhaust S ()
10
09202-08006
Pin ()
12
09116-08137
Bolt, 8x22 ()
13
55128-93J00
Plug, Drain ()
14
09168-10034
Gasket, Drain Pl ()
15
55320-95311
Zinc Set, Protec ()
16
09116-06094
Bolt, 6x15 ()
17
09355-40805-00B
Hose (l:2000->1700)
18
09362-09008
Nipple ()
19
09407-10404
.clamp ()
20
55127-87D00
Union, Speedomet ()
21-1
99105-00800-17P
Ssprop Dfv63x16 (not For Us Market)
21-2
99105-00800-185
Ssprop Dfv63x16 (not For Us Market)
21-3
99105-00800-20P
Ssprop Dfv63x16 (not For Us Market)
21-4
99105-00800-215
Ssprop Dfv63x16 (not For Us Market)
21-5
99105-00800-23P
Ssprop Dfv63x16 (not For Us Market)
21-6
99105-00800-245
Ssprop Dfv63x16 (not For Us Market)
22
58105-93J00
Bush Set, Propel (opt)
23
57632-93J20
Stopper, Propell ()
24
09160-37006
Шайба
25
57633-87D30
Spacer, Nut(t:6. ()
26
09141-18005
Гайка
27
09160-18028
Washer (18.5x31x1.0) ()
28
09204-03003
Cotter Pin (l:25) ()
29
57630-92E00
Prop Hdwr V-6 M (opt)
30
25700-98J00
L.u.seal Kit 30 (opt Not Shown)
