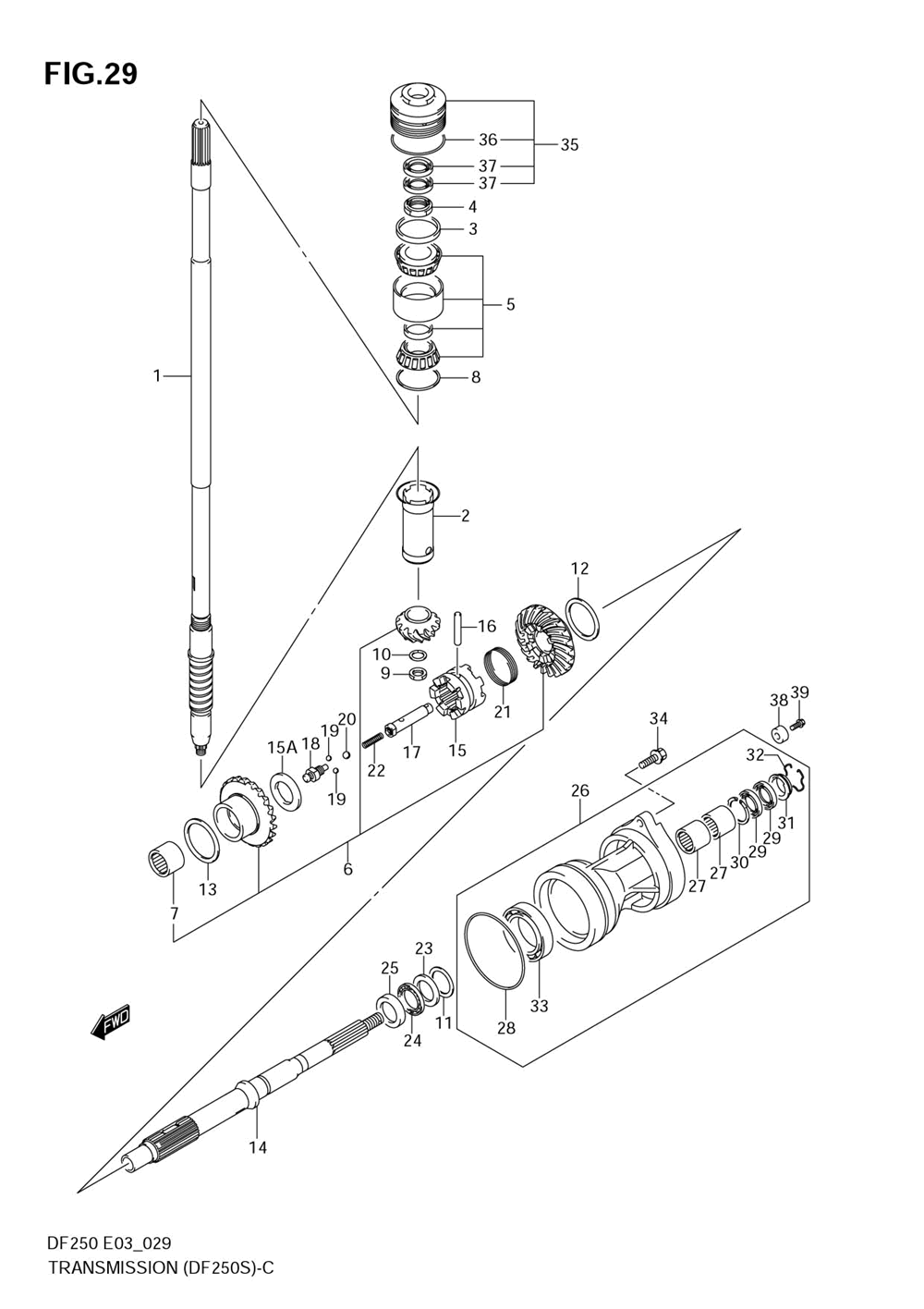

Трансмиссия (df250s)
Трансмиссия (df250s)

Трансмиссия (df250s)

Suzuki Marine DF200/DF225/DF250

Трансмиссия (df250s)

#

oem код

название

цена

1

Shaft, Drive (l) ()

Shaft, Drive (l) ()

2

Collar, Drive Sh ()

Collar, Drive Sh ()

3

Spacer, Drive Sf ()

Spacer, Drive Sf ()

4

Nut, Drive Sft B ()

Nut, Drive Sft B ()

5

Bearing, Drive S ()

Bearing, Drive S ()

6

Pinion / Gear S ()

Pinion / Gear S ()

7

Bearing, 25x32x2 ()

Bearing, 25x32x2 ()

8-1

Shim, Drive Shaf ()

Shim, Drive Shaf ()

8-2

Shim, Drive Shaf ()

Shim, Drive Shaf ()

8-3

Shim, Drive Shaf ()

Shim, Drive Shaf ()

8-4

Shim, Drive Shaf ()

Shim, Drive Shaf ()

8-5

Shim, Drive Shaf ()

Shim, Drive Shaf ()

8-6

Shim, Drive Shaf ()

Shim, Drive Shaf ()

8-7

Shim, Drive Shaf ()

Shim, Drive Shaf ()

8-8

Shim, Drive Shaf ()

Shim, Drive Shaf ()

8-9

Shim, Drive Shaf ()

Shim, Drive Shaf ()

8-10

Shim, Drive Shaf ()

Shim, Drive Shaf ()

9

Nut, Pinion ()

Nut, Pinion ()

10

Washer, Pinion Nut ()

Washer, Pinion Nut ()

11-1

Washer, 35x46x0. (prop Shaft Rev)

Washer, 35x46x0. (prop Shaft Rev)

11-2

Washer, 35x46x0. ()

Washer, 35x46x0. ()

11-3

Washer, 35x46x0. ()

Washer, 35x46x0. ()

11-4

Washer, 35x46x0. ()

Washer, 35x46x0. ()

11-5

Washer, 35x46x0. ()

Washer, 35x46x0. ()

11-6

Washer, 35x46x1. ()

Washer, 35x46x1. ()

11-7

Washer, 35x46x1. ()

Washer, 35x46x1. ()

11-8

Washer, 35x46x1. ()

Washer, 35x46x1. ()

11-9

Washer, 35x46x1. ()

Washer, 35x46x1. ()

12-1

Shim (t:0.45) (rev Gear)

Shim (t:0.45) (rev Gear)

12-2

Shim (t:0.50) ()

Shim (t:0.50) ()

12-3

Shim (t:0.55) ()

Shim (t:0.55) ()

12-4

Shim (t:0.60) ()

Shim (t:0.60) ()

12-5

Shim (t:0.65) ()

Shim (t:0.65) ()

12-6

Shim (t:0.70) ()

Shim (t:0.70) ()

12-7

Shim (t:0.75) ()

Shim (t:0.75) ()

12-8

Shim (t:0.80) ()

Shim (t:0.80) ()

12-9

Shim (t:0.85) ()

Shim (t:0.85) ()

12-10

Shim (t:0.90) ()

Shim (t:0.90) ()

14

Shaft, Propeller ()

Shaft, Propeller ()

15

Shifter, Clutch ()

Shifter, Clutch ()

15A

Washer, 25x38x1 ()

Washer, 25x38x1 ()

16

Pin, Clutch Dog Shifter ()

Pin, Clutch Dog Shifter ()

17

Pin, Connector N ()

Pin, Connector N ()

18

Pin, Connector N ()

Pin, Connector N ()

19

Ball, Detent No.1 ()

Ball, Detent No.1 ()

20

Ball ()

Ball ()

21

Spring, Clutch Dog Shifter ()

Spring, Clutch Dog Shifter ()

22

Spring, Detent ()

Spring, Detent ()

23

Washer, Prop Rev (32x47x3) ()

Washer, Prop Rev (32x47x3) ()

24

Bearing, Prop Shaft Rev Thrus ()

Bearing, Prop Shaft Rev Thrus ()

25

Washer, Prop Rev (30x47x6) ()

Washer, Prop Rev (30x47x6) ()

26

56120-98J00-0EP

Housing, Prop Sh ()

Housing, Prop Sh ()

27

.bearing ()

.bearing ()

28

O-ring, Prop(id: ()

O-ring, Prop(id: ()

29

Oil Seal 30x45x ()

Oil Seal 30x45x ()

30

.circlip ()

.circlip ()

31

Protector, Oil S ()

Protector, Oil S ()

32

Set Ring (sus) ()

Set Ring (sus) ()

33

Bearing ()

Bearing ()

34

Bolt, Prop Sft Brg Hsg ()

Bolt, Prop Sft Brg Hsg ()

35

Housing Comp, Dr ()

Housing Comp, Dr ()

36

O-ring(id:65.4, ()

O-ring(id:65.4, ()

37

.oil Seal ()

.oil Seal ()

38

Anode, Protectio ()

Anode, Protectio ()

39

Bolt (6x14) ()

Bolt (6x14) ()
