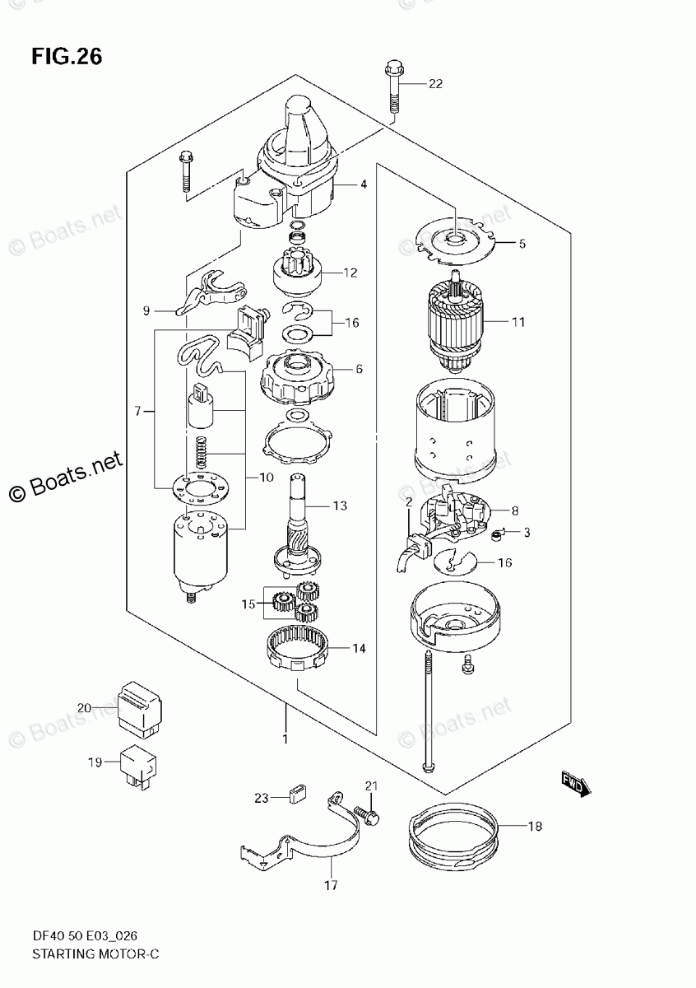

Starting Motor (Model:05%10)
Starting Motor (Model:05%10)

Starting Motor (Model:05%10)

Suzuki Marine DF 40TLK8

oem код

название

цена

31100-94J21

STARTING MOTOR *{<-31100-94J10}*

BRUSH SET, PLUS

SPRING

CASE, GEAR

PLATE, CENTER

BRACKET, PLANET GEAR

7-1

31171-94J00

COVER KIT, DUST *{->31190-94J00 LEVER & DUST COV KIT}*

7-2

31171-96J00

COVER KIT, DUST *{DF40:880595~ DF50:881903~}*

31173-94J00

HOLDER ASSY, BRUSH

9-2

31191-96J00

LEVER, SHIFT *{DF40:880595~ DF50:881903~}*

9-1

31191-90J00

LEVER, SHIFT *{->31190-94J00 LEVER & DUST COV KIT}*

SWITCH, MAGNET

ARMATURE

PINION

SHAFT, PINION

INTERNAL GEAR

GEAR, PLANETARY

WASHER SET

BAND, STARTING MOTOR

18-1

31918-90J00

DAMPER, LOWER

18-2

31918-90J10

DAMPER, LOWER *{MODEL:06~10}*

38860-76F01

RELAY, STARTING MOTOR

38915-90J00

HOLDER, RELAY

21-1

01547-06207

BOLT, LOWER *{MODEL:05~07}*

21-2

01547-06207

BOLT, LOWER *{MODEL:08~10}*

21-3

01547-06167

BOLT, LOWER *{MODEL:08~10}*

01550-08257

BOLT, UPPER

09329-01007

CUSHION, PARTS HOLDER
