RING GEAR COVER Каталог оригинальных запчастей для лодочных моторов Suzuki Marine DF 300TXK8 (2008)

ОПТОВО-РОЗНИЧНЫЙ МАГАЗИН МОТОЗАПЧАСТЕЙ

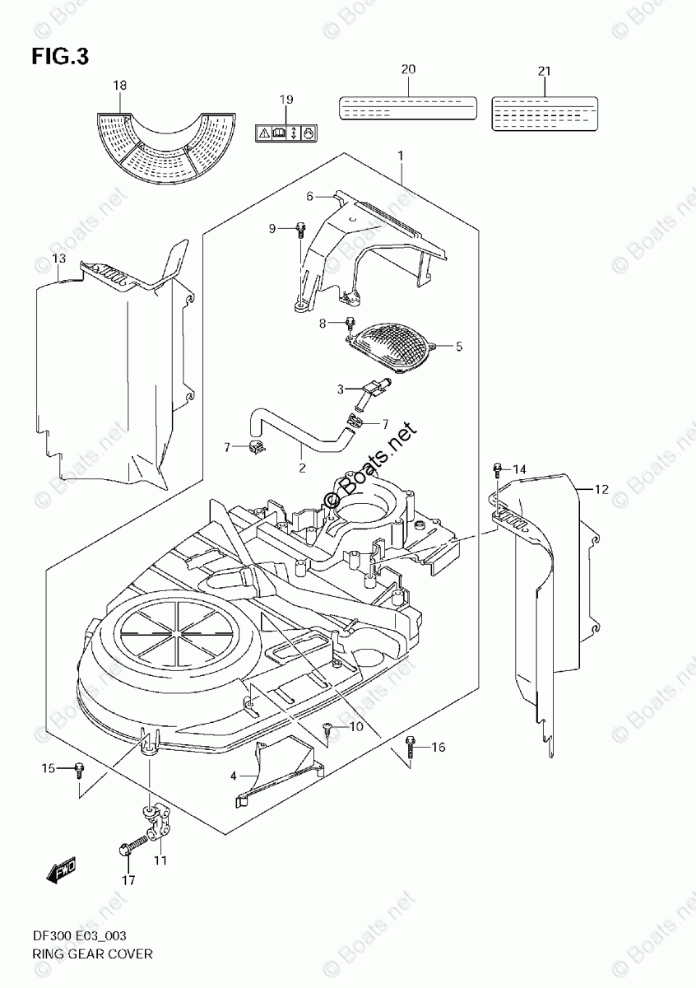

RING GEAR COVER

Suzuki Marine DF 300TXK8

RING GEAR COVER

#

oem код

название

цена

1

COVER, RING GEAR

COVER, RING GEAR

2

HOSE, BREATHER

HOSE, BREATHER

3

UNION, BREATHER

UNION, BREATHER

4

PLATE, RING GEAR COVER

PLATE, RING GEAR COVER

5

ARRESTER, FLAME

ARRESTER, FLAME

6

SILENCER, UPPER COVER

SILENCER, UPPER COVER

7

CLIP, HOSE

CLIP, HOSE

8

BOLT, FLAME ARRESTER

BOLT, FLAME ARRESTER

9

BOLT, SILENCER

BOLT, SILENCER

10-1

SCREW

SCREW

10-2

SCREW *{MODEL:08~}*

SCREW *{MODEL:08~}*

11

BRACE, RING GEAR COVER

BRACE, RING GEAR COVER

12

GUARD, AIR DUCT STBD

GUARD, AIR DUCT STBD

13

GUARD, AIR DUCT PORT

GUARD, AIR DUCT PORT

14

BOLT, AIR DUCT

BOLT, AIR DUCT

15

BOLT, NO.1

BOLT, NO.1

16

BOLT, NO.2

BOLT, NO.2

17

BOLT, BRACE

BOLT, BRACE

18

LABEL, MAG COVER

LABEL, MAG COVER

19

LABEL (S.I.G.P)

LABEL (S.I.G.P)

20

LABEL, CLEARANCE *{MODEL:09~}*

LABEL, CLEARANCE *{MODEL:09~}*

21

LABEL, OIL *{MODEL:09~}*

LABEL, OIL *{MODEL:09~}*
