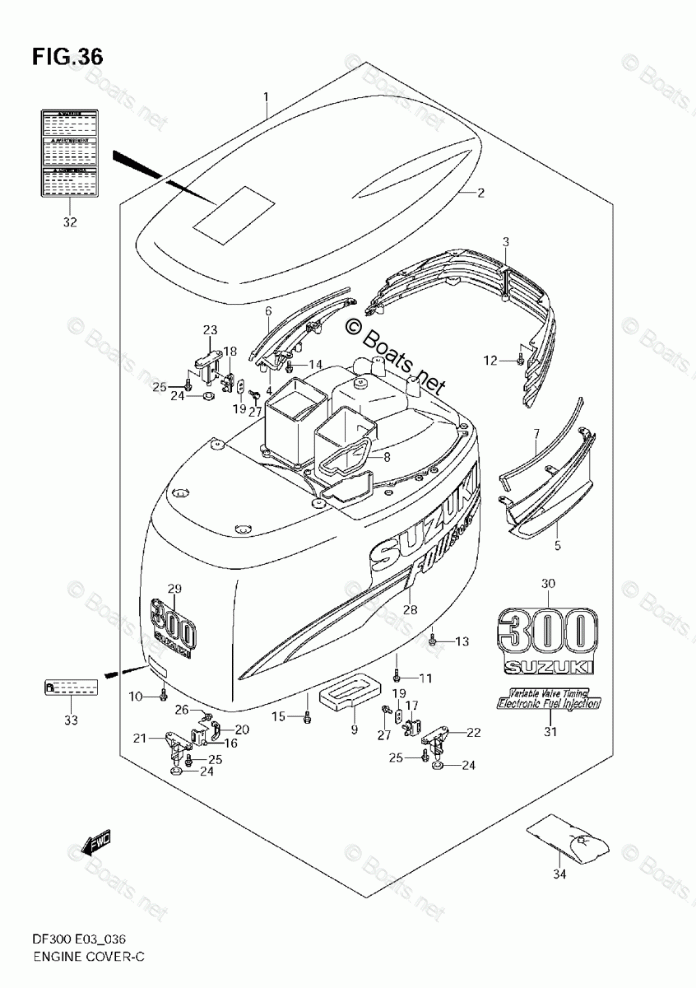

Engine Cover (Model:07%09)

Suzuki Marine DF 300TXK8
Suzuki Marine
#oem кодцена
1-2
61400-98Y32-0EP
COVER SET, ENGINE (BLACK) *{DF300T:980307~ DF300Z:980108~}*
1-1
61400-98Y31-0EP
COVER SET, ENGINE (BLACK)
1-3
61400-98Y33-0EP
COVER SET, ENGINE (BLACK) *{DF300T:980538~ DF300Z:980192~}*
2
61431-98J01-0EP
COVER, TOP
3-2
61432-98J01
LOUVER, AIR INTAKE *{DF300T:980307~ DF300Z:980108~}*
3-1
61432-98J00
LOUVER, AIR INTAKE *{->61432-98J01 USED W/03542-06169(5PCS)}*
4-1
61433-98J00
GRIP, UPPER COVER STBD *{->61433-98J01 USED W/03542-06169(3PCS)}*
4-2
61433-98J01
GRIP, UPPER COVER STBD *{DF300T:980307~ DF300Z:980108~}*
5-1
61434-98J00
GRIP, UPPER COVER PORT *{->61434-98J01 USED W/03542-06169(3PCS)}*
5-2
61434-98J01
GRIP, UPPER COVER PORT *{DF300T:980307~ DF300Z:980108~}*
6
61439-98J00
SEAL, GRIP STBD
7
61439-98J10
SEAL, GRIP PORT
8
61439-98J20
SEAL, AIR VENT NO.2
9
61476-98J00
SEAL, AIR VENT NO.1
10
01550-06167
BOLT, ENGINE COVER TOP
11
01550-06207
BOLT, ENGINE COVER
12
01550-06167
BOLT, LOUVER UPPER
13-2
03542-06169
SCREW, LOUVER LOWER *{DF300T:980307~ DF300Z:980108~}*
13-1
01550-06167
BOLT, LOUVER LOWER
14
01550-06167
BOLT, HANDLE UPPER
15-1
01550-06167
BOLT, HANDLE LOWER
15-2
03542-06169
SCREW, HANDLE LOWER *{DF300T:980307~ DF300Z:980108~}*
16
61610-98J00
FASTENER (FRONT)
17-1
61610-98J10
FASTENER (PORT)
17-2
61610-98J30
FASTENER (PORT) *{DF300T:980538~ DF300Z:980192~}*
18-1
61610-98J20
FASTENER (STBD)
18-2
61610-98J40
FASTENER (STBD) *{DF300T:980538~ DF300Z:980192~}*
19
61616-98J00
PLATE *{DF300T:~980537 DF300Z:~980191}*
20
61614-98J00
PROTECTOR, FASTENER
21
61621-98J01
BRACKET, FASTENER FRONT
22-2
61624-98J10
BRACKET, FASTENER PORT *{DF300T:980538~ DF300Z:980192~}*
22-1
61624-98J01
BRACKET, FASTENER PORT
23-1
61625-98J01
BRACKET, FASTENER STBD
23-2
61625-98J10
BRACKET, FASTENER STBD *{DF300T:980538~ DF300Z:980192~}*
24
61619-98J00
CUSHION, ENG COV FASTENER
25
01547-06167
BOLT, FASTENER BRACKET
26
01550-06127
BOLT, ENG COV FASTENER
27-1
01547-06167
BOLT, ENG COV FASTENER
27-2
01550-06127
BOLT, ENG COV FASTENER *{DF300T:980538~ DF300Z:980192~}*
28-2
61453-98J00
STRIPE, ENGINE COVER PORT
28-1
61443-98J00
STRIPE, ENGINE COVER STBD
29
61422-98J00
MARK, EMBLEM FRONT (300)
30
61435-98J00
MARK, EMBLEM REAR (300)
31
61446-93J13
DECAL, EFI & VVT
32
61458-99E31
LABEL, ENGINE COVER
33
69716-99E13
LABEL, FUEL LIMITATION
34
09800-81834
TOOL SET
35
SPECIAL-NOTE
REFER TO FIG.36A(G- 6) FOR MODEL:10~
