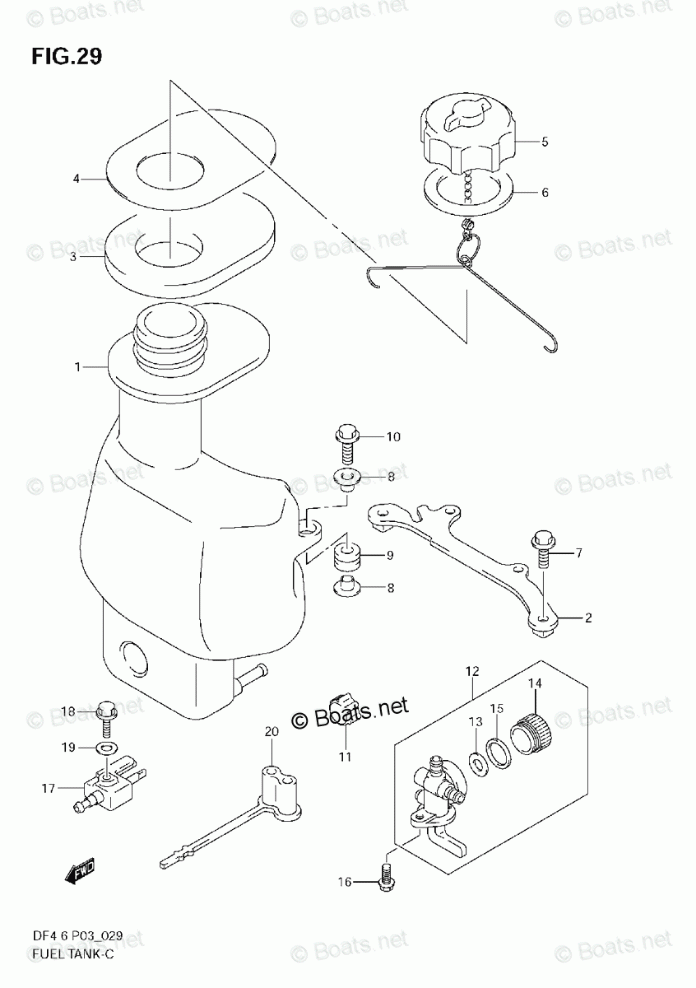

ТОПЛИВНЫЙ БАК

Suzuki Marine DF 6LK7
Suzuki Marine
#oem кодцена
1
65110-91J01
TANK, FUEL
2
65260-91J00
BRACKET, FUEL TANK
3
65281-91J11
RUBBER, FUEL TANK
4-2
65284-91JL0
RUBBER, FUEL TANK GROMMET *{DF4:110001~ DF6:110001~}*
4-1
65284-91J00
RUBBER, FUEL TANK GROMMET
5
65510-91J01
CAP, FUEL TANK
6
09168-32001
GASKET
7
09103-06125
BOLT (6X16)
8-1
09169-06067
WASHER
8-2
09169-06088
WASHER *{DF4:110001~ DF6:110001~}*
9
09320-09039
CUSHION
10
01550-06257
BOLT
11
61151-91J01
CUSHION
12
66100-91J10
COCK ASSY, FUEL
13
66152-98300
FILTER
14
66171-98301
CUP
15
66273-98300
GASKET
16
09136-04010
SCREW (4X12)
17
65720-986B0
PLUG, FUEL CONNECTOR *{DF6}*
18
09103-06237
BOLT (6X12.5) *{DF6}*
19
09160-06085
WASHER (6.5X15X1.0) *{DF6}*
20-2
65727-91JL0
CAP, FUEL CONNECTOR PLUG *{DF4:110001~ DF6:110001~}*
20-1
65727-91J00
CAP, FUEL CONNECTOR PLUG *{DF6}*
