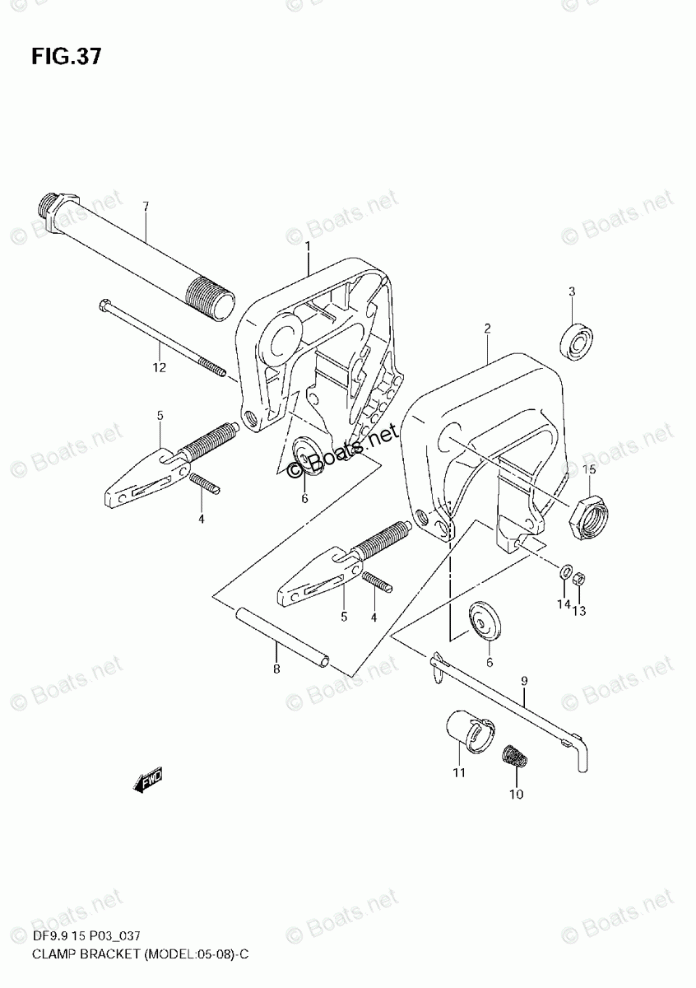

Clamp Bracket (Model:05-)
Clamp Bracket (Model:05-)

Clamp Bracket (Model:05-)

Suzuki Marine DF 9.9RSK7

oem код

название

цена

1-2

41111-94J20-0EP

BRACKET, CLAMP STBD (BLACK) *{MODEL:10~}*

1-1

41111-94J00-0EP

BRACKET, CLAMP STBD (BLACK)

2-2

41121-94J20-0EP

BRACKET, CLAMP PORT (BLACK) *{MODEL:10~}*

2-1

41121-94J00-0EP

BRACKET, CLAMP PORT (BLACK)

41161-94400

SEAL, STEERING CABLE *{DF9.9R}*

09205-06007

PIN (6X27)

5-1

41210-89E00

SCREW, CLAMP *{OPT}*

5-2

41210-89E10

SCREW, CLAMP *{DF15:110001~}*

41213-98100

PLATE, CLAMP

7-1

41130-89E20

SHAFT, CLAMP BRKT

7-2

41130-93E02

SHAFT, CLAMP BRKT *{DF9.9R}*

09180-06163

SPACER

9-2

45420-99J00

PIN, TILT LOCK *{MODEL:10~}*

9-1

PIN, TILT LOCK

SPRING

STOPPER

BOLT (6X140)

NUT

WASHER, LOCK

NUT

REFER TO FIG.38(F- 4) FOR TYPE:T/TH
