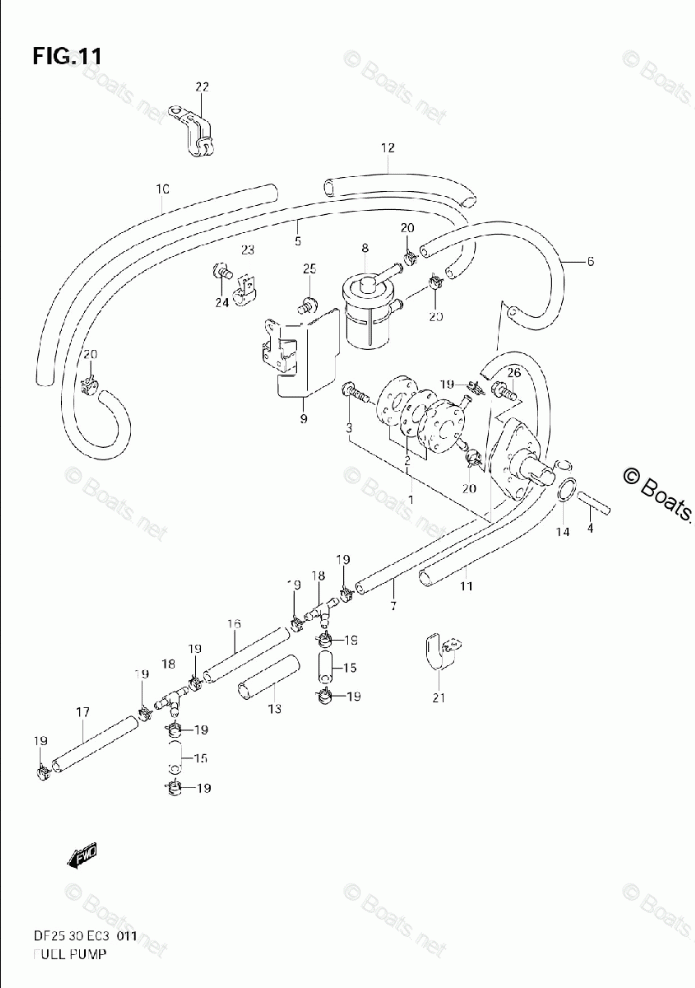

ТОПЛИВНЫЙ НАСОС

Suzuki Marine DF 30TLK7
Suzuki Marine
#oem кодцена
1
15100-89J00
PUMP ASSY, FUEL
2
15170-99E00
DIAPHRAGM
3
15251-93E00
SCREW
4
15131-89J00
ROD, FUEL PUMP
5
15191-89J00
HOSE, FUEL (CONN TO FILTER)
6
15192-89J00
HOSE, FUEL (FILTER TO PUMP)
7
15193-89J00
HOSE, FUEL (PUMP TO 3 WAY)
8
15410-87J10
FILTER, FUEL
9
15420-89J00
BRACKET, FUEL FILTER
10
18498-99E10
PROTECTOR (CONN TO CYL) *{L:610->560}*
11
18498-89J10
PROTECTOR (PUMP TO CARB) *{L:180}*
12
18498-99E10
PROTECTOR (CYL TO FTR) *{L:610->180}*
13
18498-89J10
PROTECTOR (CARB TO CARB) *{L:180->60 DF25:~510310 DF30:~680095}*
14
09280-26005
O RING (D:2.4,ID:26.2)
15
09355-50105-600
HOSE, FUEL (3 WAY TO CARB) *{L:600->35}*
16
09355-50105-600
HOSE, FUEL (3 WAY TO 3 WAY) *{L:600->50}*
17
09355-50105-600
HOSE, FUEL (3 WAY TO TOP) *{L:600->110}*
18
09367-06007
3 WAY (PUMP TO CARB)
19-2
17815-90J00
CLIP *{MODEL:06,07}*
19-1
09401-09403
CLIP
20-1
09401-11407
CLIP
20-2
17818-90J00
CLIP *{MODEL:06,07}*
21
09403-11315
CLAMP
22
09403-12317
CLAMP
23
09403-13408
CLAMP
24
01550-06107
BOLT
25
01550-06127
BOLT
26
01550-06257
BOLT
