  6. БОКОВАЯ КРЫШКА

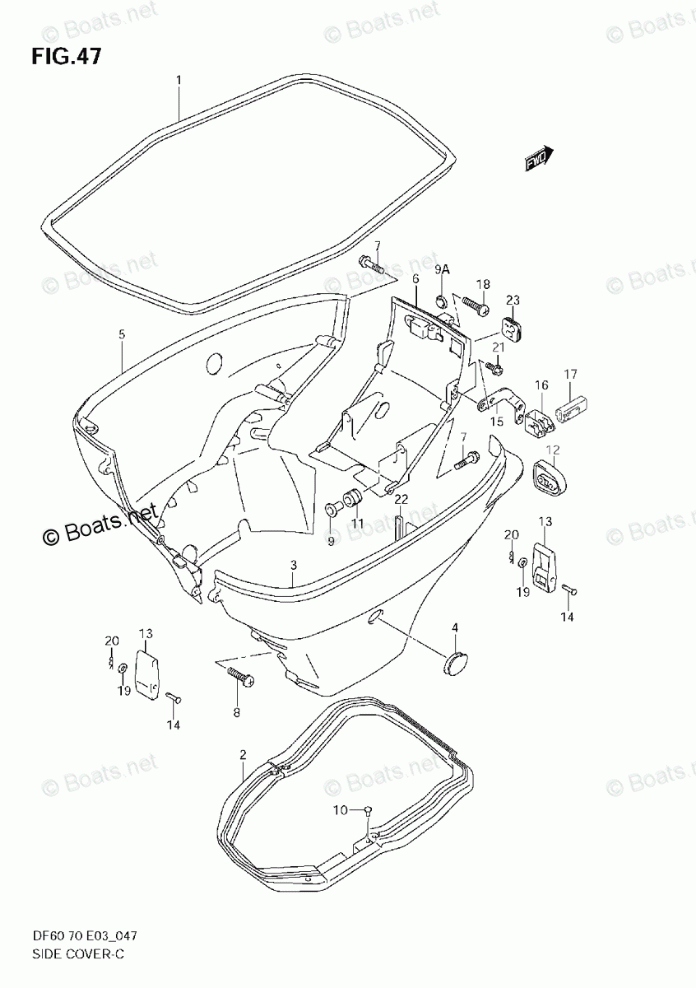

БОКОВАЯ КРЫШКА

Suzuki Marine DF 60TLK7
Suzuki Marine
#oem кодцена
1
61112-99E01
RUBBER, SIDE COVER
2
61134-99E02
SEAL, SIDE COVER
3-3
61811-99E02-0EP
COVER, SIDE STBD (BLACK) *{DF60T:780233~ DF70T:780891~}*
3-2
61811-99E01-0EP
COVER, SIDE STBD (BLACK) *{DF60T:861256~780232 DF70T:861336~780890 ->61810-99810-0EP COVER SET,SIDE}*
3-1
61811-99E00-0EP
COVER, SIDE STBD (BLACK) *{->61811-99E01-0EP USED WITH 61124-99E01}*
3-4
61811-99E03-0EP
COVER, SIDE STBD (BLACK) *{MODEL:08~09}*
4
61817-99E00
PLUG, SIDE COVER
5-3
61821-99E02-0EP
COVER, SIDE PORT (BLACK) *{MODEL:08~09}*
5-2
61821-99E01-0EP
COVER, SIDE PORT (BLACK) *{DF60T:780233~ DF70T:780891~}*
5-1
61821-99E00-0EP
COVER, SIDE PORT (BLACK) *{->61810-99810-0EP COVER SET,SIDE}*
6-2
61831-99E11-0EP
PANEL, FRONT (BLACK) *{MODEL:01~09}*
6-1
61831-99E00-0EP
PANEL, FRONT (BLACK) *{MODEL:98~00}*
7
09118-08127
BOLT (8X40)
8-1
09136-06144
SCREW (6X30)
8-2
09136-06148
SCREW (6X35) *{DF60T:780233~ DF70T:780891~}*
9
09169-08039
WASHER
9A
09250-12006
PLUG *{MODEL:01~05 DF60:~510598 DF70:~512083}*
10
09409-05302-5PK
PIN (BLACK)
11
09320-11013
CUSHION
12
61124-99E01
GROMMET, REMOCON CABLE
13
61610-93901
FASTENER
14
61616-93E00
PIN, LEVER
15
61833-99E02
BRACKET, FRONT PANEL
16
67341-99E00
HOLDER, REMOCON CABLE
17
67343-99E00
STOPPER, REMOCON CABLE
18
09136-06142
SCREW (6X30)
19
09161-04012
WASHER (4.2X11X1.0)
20
09385-04003
PIN, SNAP
21
01550-06207
BOLT
22
61135-99E00
CUSHION, SIDE COVER
23-3
36658-99E10
GROMMET, CABLE *{MODEL:05~09}*
23-2
36658-99E10
GROMMET, CABLE *{DF60TH,70TH}*
23-1
36658-99E01
GROMMET, CABLE *{DF60T,70T}*
