Gear case (df200t Каталог оригинальных запчастей для лодочных моторов Suzuki Marine DF200/DF225/DF250 (2006)

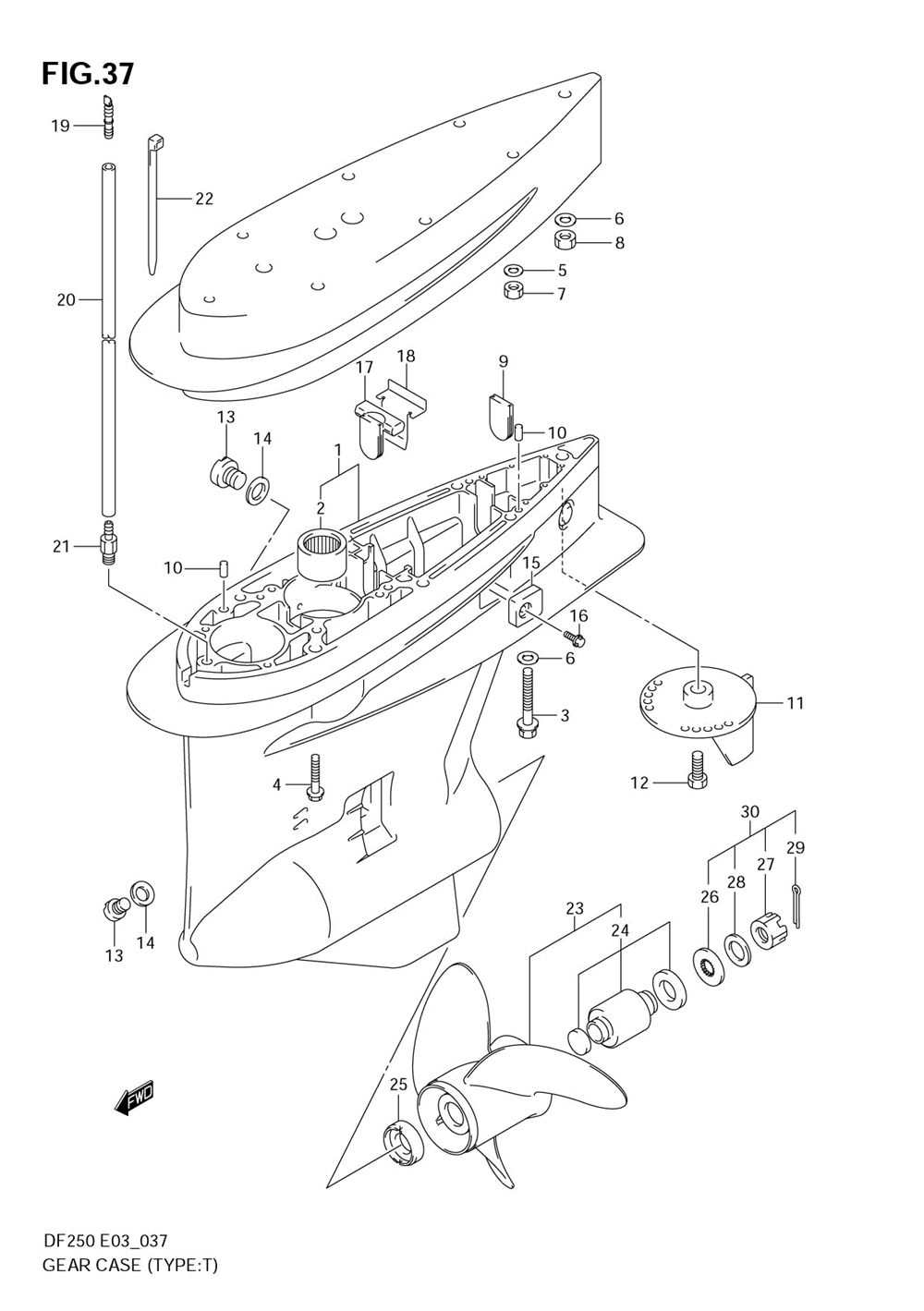

Gear case (df200t

Suzuki Marine DF200/DF225/DF250

oem код

название

цена

1-1

55110-93J20-0EP

Case Comp, Gear

2-1

09263-32016

Brg, Pinion, 32x4

2-2

09263-32017

.bearing, Pinion (df200t:510124~df225t:510043~df250t:510308~)

Bolt L:70(sus)

Bolt, 10x55

Шайба

.washer (12.5x22x2.5)

Гайка

Гайка

Уплотнитель

Штифт

Tab, Trim

Bolt, 8x22

13-1

55128-93J00

Plug, Drain (df200t:510124~df225t:510043~df250t:510308~)

14-1

09168-10034

Gasket, Drain Pl (df200t:510124~df225t:510043~df250t:510308~)

Zinc Set, Protec

Болт 6x15

Rubber, Exhaust

Plate, Exhaust S

Union, Speedomet

20-1

09355-40805-00B

Hose (type:xl:2000->1600l:2000->1700 Model:05~07type:xxl:2000->1700)

09362-09008

Ниппель

09407-14407

Стяжка L-140

23-1

99105-00800-17P

Ssprop Dfv63x16

23-2

99105-00800-185

Ssprop Dfv63x16

23-3

99105-00800-20P

Ssprop Dfv63x16

23-4

99105-00800-215

Ssprop Dfv63x16

23-5

99105-00800-23P

Ssprop Dfv63x16

23-6

99105-00800-245

Ssprop Dfv63x16

58105-93J00

Bush Set, Propel

25-1

Stopper, Propell

Spacer, Nut(t:6.

Гайка

Washer (18.5x31x1.0)

Cotter Pin (l:25)

Prop Hdwr V-6 M

Lu Sealkit Df V
