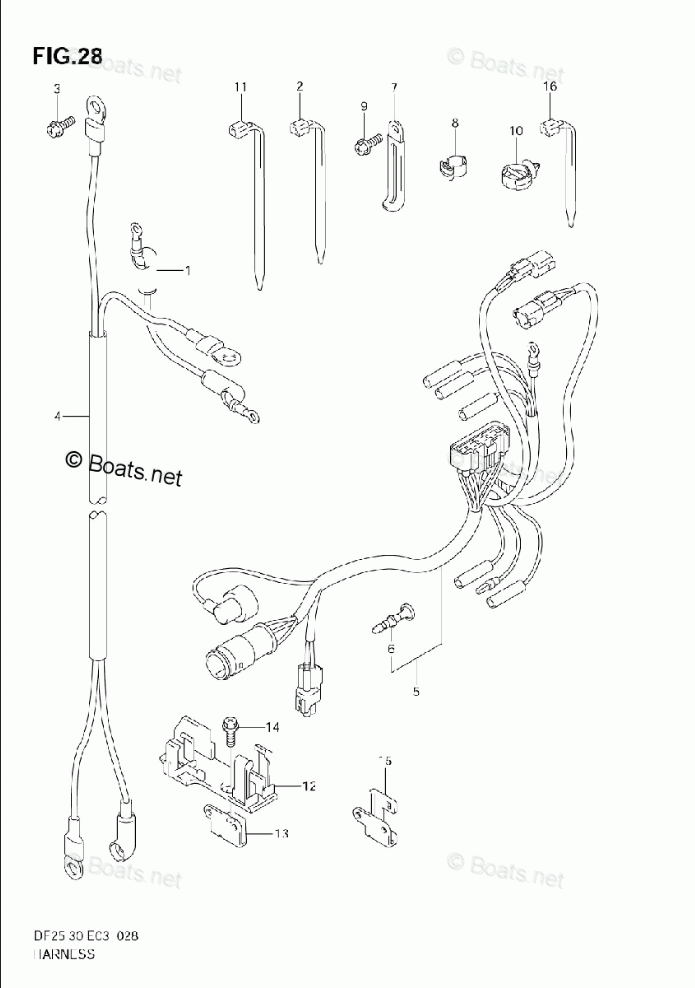

ПРОВОДКА

Suzuki Marine DF 25MQLK6
Suzuki Marine
#oem кодцена
1
33820-89E01
CABLE, STARTER MOTOR SUB *{ELECTRIC STARTER}*
2
09407-14403
CLAMP (L:125) *{ELECTRIC STARTER}*
3
02162-06167
SCREW *{ELECTRIC STARTER}*
4
33810-93E02
CABLE, STARTER *{ELECTRIC STARTER}*
5-3
36610-89J30
HARNESS ASSY, WIRING *{TYPE:T MODEL:01~03}*
5-6
36610-89JV0
HARNESS ASSY, WIRING *{TYPE:T MODEL:05~07 <-36610-89JA0}*
5-5
36610-89J60
HARNESS ASSY, WIRING *{TYPE:Q MODEL:04}*
5-4
36610-89J50
HARNESS ASSY, WIRING *{TYPE:Q MODEL:04~07}*
5-1
36610-89J00
HARNESS ASSY, WIRING *{TYPE:Q MODEL:01~03}*
5-2
36610-89J10
HARNESS ASSY, WIRING *{TYPE:QR}*
6
36615-96300
TERMINAL, RESIN *{TYPE:Q/QR}*
7
09404-06435
CLAMP (L:135)
8-2
09408-00184
CLAMP *{TYPE:Q MODEL:05~07}*
8-1
09408-00184
CLAMP
9
02162-06127
SCREW
10
09403-20308
CLAMP *{MANUAL STARTER}*
11
09407-18402
CLAMP (L:165) *{TYPE:QR/T MODEL:00}*
12
36616-89J00
HOLDER, CONNECTOR *{TYPE:QR/T MODEL:00~04}*
13
36617-89J00
BRACKET, HOLDER CONNECTOR *{TYPE:QR/T MODEL:00~04}*
14
02162-06127
SCREW *{TYPE:QR/T MODEL:00~04}*
15
36616-89J10
HOLDER, CONNECTOR *{TYPE:T MODEL:05~07}*
16
09407-11401
CLAMP (L:95) *{TYPE:Q MODEL:05~07}*
