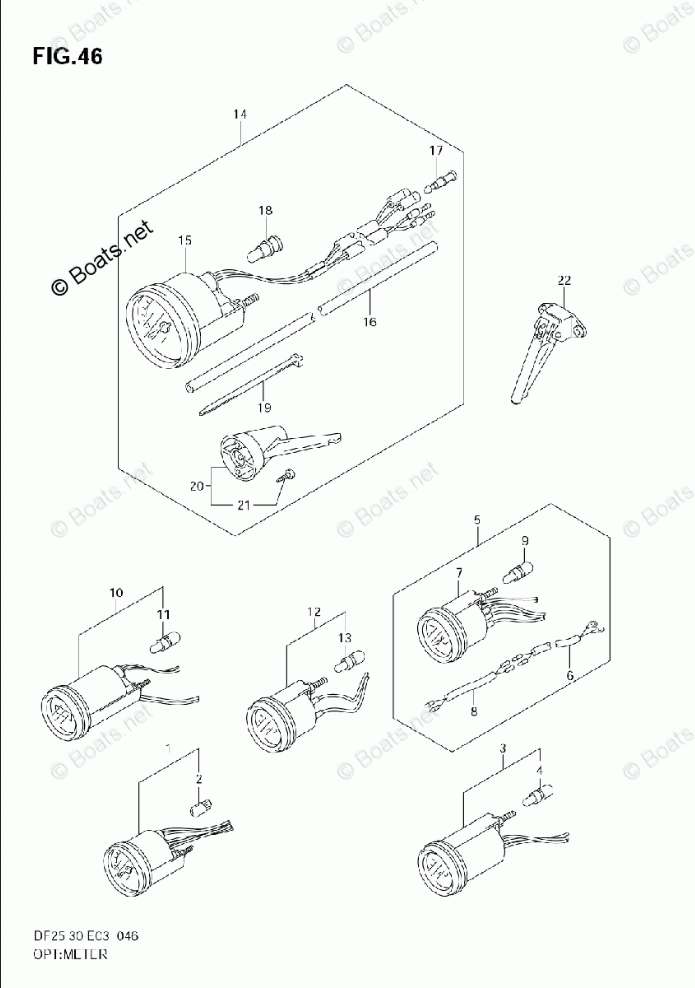

ОПЦИЯ: ПРИБОРЫ

Suzuki Marine DF 30EQLK6
Suzuki Marine
#oem кодцена
1
34200-92E02
TACHOMETER
2
09471-12179
BULB
3-2
34800-90J02
METER ASSY, TRIM *{MODEL:02~04(2WIRE)NOT FOR US MARKET}*
3-1
34800-92E00
METER ASSY, TRIM *{MODEL:00,01(4WIRE)NOT FOR US MARKET}*
4
09471-12180
BULB
5
34300-92E01
GAUGE ASSY, FUEL
6
34310-92E00
LEAD, FUEL GAUGE
7
34320-92E01
GAUGE, FUEL
8
34360-92E00
ADAPTER, FUEL GAUGE
9
09471-12180
BULB
10
34500-92E00
METER ASSY, HOUR
11
09471-12180
BULB
12
34600-92E00
METER ASSY, VOLTAGE
13
09471-12180
BULB
14-2
34102-92E20
SPEEDOMETER SET *{NOT FOR US MARKET}*
14-1
34102-92E10
SPEEDOMETER SET *{NOT FOR US MARKET}*
15-2
34100-92E20
SPEEDOMETER *{NOT FOR US MARKET}*
15-1
34100-92E10
SPEEDOMETER *{NOT FOR US MARKET}*
16
34191-92E00
TUBE, SPEEDOMETER
17
36615-96300
TERMINAL, RESIN
18
09471-12179
BULB
19
09407-14407
CLAMP
20
34190-95500
SENDER ASSY, SPEEDOMETER *{NOT FOR US MARKET}*
21
03112-06303
SCREW *{NOT FOR US MARKET}*
22
34190-87D00
SENDER, SPEEDOMETER
23
SPECIAL-NOTE
REFER TO FIG.46A(H- 4) FOR MODEL:05~07
