Opt:Meter (Model:98%04) Каталог оригинальных запчастей для лодочных моторов Suzuki Marine DF 60TLK6 (2006)

Главная
Каталог оригинальных запчастей для лодочных моторов
Suzuki Marine
2006
DF 60TLK6

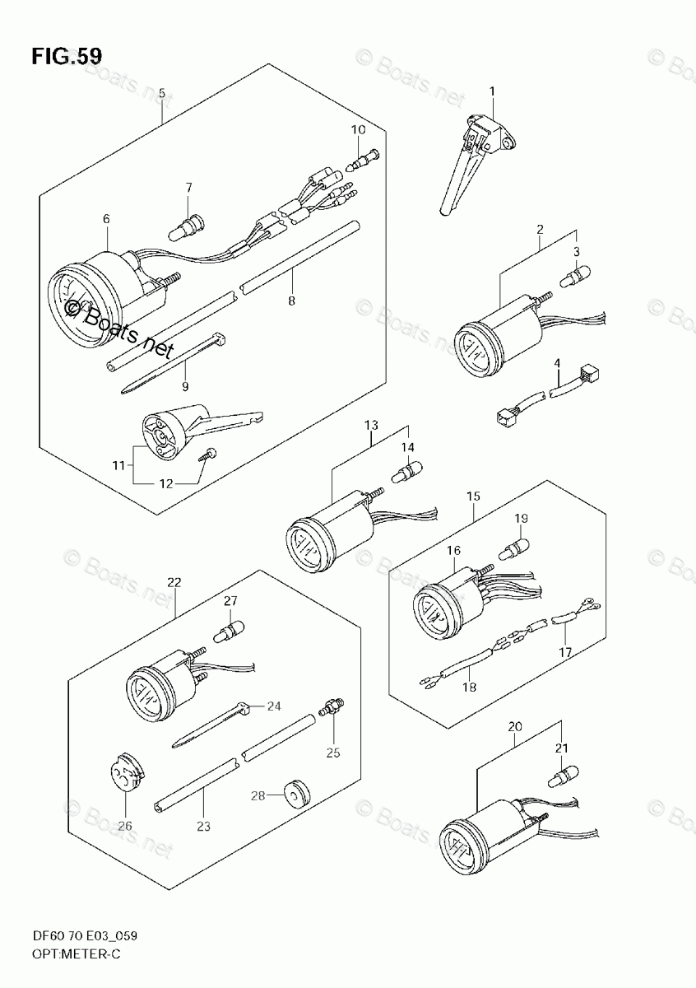

Opt:Meter (Model:98%04)
Opt:Meter (Model:98%04)

Opt:Meter (Model:98%04)

Suzuki Marine DF 60TLK6

oem код

название

цена

34190-87D00

SENDER ASSY, SPEEDOMETER

2-1

34800-92E00

METER ASSY, TRIM *{MODEL:98~01 4WIRE}*

2-2

34800-90J02

METER ASSY, TRIM *{MODEL:02~04 2WIRE}*

09471-12180

BULB

36682-92E00

WIRE, TRIM GAUGE EXT *{MODEL:98~01 4WIRE}*

5-1

34102-92E00

SPEEDOMETER SET (80MPH) *{NOT FOR US MARKET}*

5-2

34102-92E10

SPEEDOMETER SET (50MPH) *{NOT FOR US MARKET}*

5-3

34102-92E20

SPEEDOMETER SET (45KNOTS)

6-1

34100-92E00

SPEEDOMETER *{MAX 80MPH}*

6-2

34100-92E10

SPEEDOMETER *{MAX 50MPH}*

6-3

34100-92E20

SPEEDOMETER *{MAX 45KNOTS}*

BULB

TUBE

BAND

TERMINAL, RESIN

SENDER ASSY, SPEEDOMETER *{NOT FOR US MARKET}*

03112-06303

SCREW *{NOT FOR US MARKET}*

METER, VOLTAGE

BULB

GAUGE ASSY, FUEL

GAUGE, FUEL

LEAD, FUEL GAUGE

ADAPTER, FUEL GAUGE

BULB

METER ASSY, HOUR

BULB

22-1

34650-92E00

GAUGE ASSY, WATER PRESSURE *{30PSI}*

22-2

34650-92E10

GAUGE ASSY, WATER PRESSURE *{15PSI MODEL:98}*

TUBE

BAND

UNION

GROMMET

BULB

GROMMET

REFER TO FIG.60(I- 3) FOR MODEL:05~
