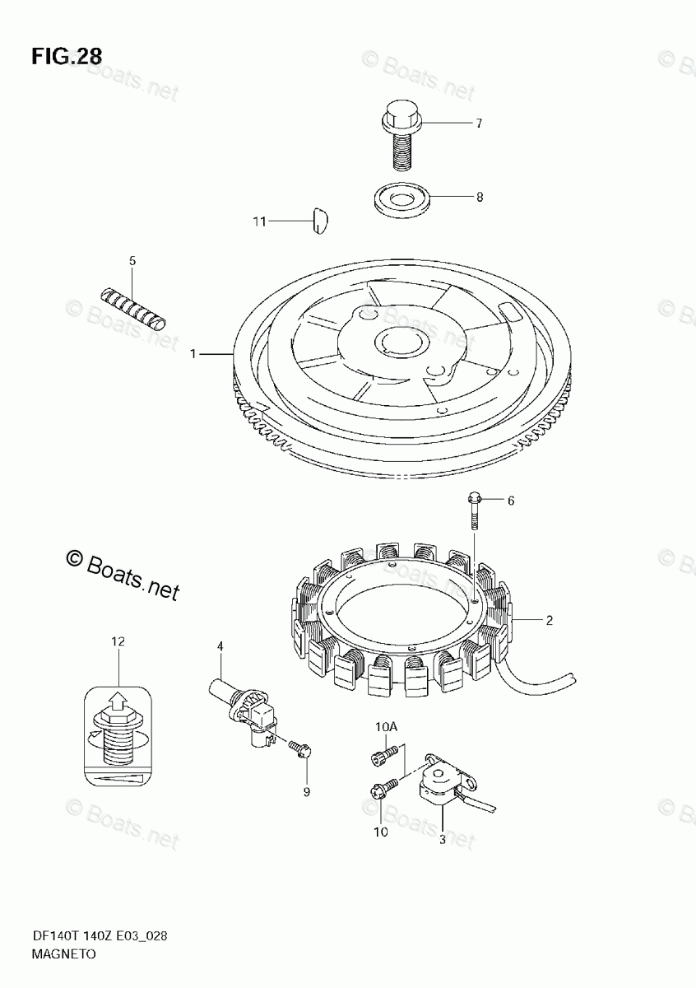

ГЕНЕРАТОР

Suzuki Marine DF 140TXK6
Suzuki Marine
#oem кодцена
1-2
32102-92J10
FLYWHEEL *{MODEL:03~ N/ROPE HOOK}*
1-1
32102-92J00
FLYWHEEL
2-1
32120-90J00
COIL, BATTERY CHARGING
2-2
32120-90J10
COIL, BATTERY CHARGING *{MODEL:03~05}*
2-3
32120-90J20
COIL, BATTERY CHARGING *{MODEL:06~}*
3-1
32160-87J00
COIL, IGNITION TIMING
3-3
32160-87L00
COIL, IGNITION TIMING *{MODEL:10~}*
3-2
32160-87J10
COIL, IGNITION TIMING *{MODEL:03~09}*
4
33220-76G02
SENSOR, CAM POSITION
5
33833-91J00
TUBE *{L:250->100 <-33833-95510}*
6
09103-06231
BOLT (6X35)
7
09103-16003
BOLT (16X50)
8
09160-16048
WASHER (16.5X60.5X7.0)
9
01547-06167
BOLT
10
02162-05167
SCREW *{DF140T:~983167 DF140Z:~980303}*
10A
09106-05030
BOLT *{DF140T:983168~ DF140Z:980304~}*
11
08341-31059
KEY, WOODRUFF
12
32118-90J00
LABEL, MAG BOLT
