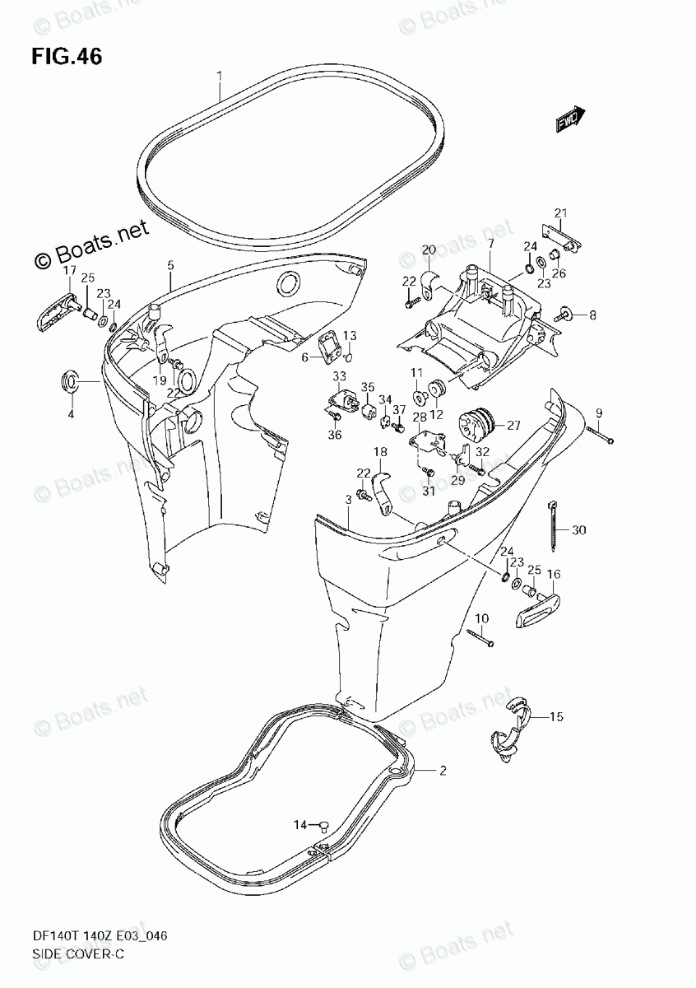

БОКОВАЯ КРЫШКА

Suzuki Marine DF 140TXZK6
Suzuki Marine
#oem кодцена
1
61112-90J00
RUBBER, SIDE COVER
2-2
61134-90J10
SEAL, SIDE COVER *{MODEL:04~}*
2-1
61134-90J01
SEAL, SIDE COVER
3
61810-90J01-0EP
COVER, SIDE STBD (BLACK)
4
61817-89J00
PLUG, SIDE COVER
5
61820-90J01-0EP
COVER, SIDE PORT (BLACK)
6
61827-90J00
HOLDER, SIDE COVER
7-1
61831-90J01-0EP
PANEL, FRONT (BLACK) *{->61831-90J02-0EP USED W/09307-13006}*
7-3
61831-90J11-0EP
PANEL, FRONT (BLACK) *{MODEL:07~}*
7-2
61831-90J02-0EP
PANEL, FRONT (BLACK) *{DF140T:421160~ DF140Z:421015~}*
8
09118-08127
BOLT (8X40)
9
09136-06148
SCREW (6X35)
10
09136-06149
SCREW (6X55)
11
09169-08039
WASHER
12
09320-11013
CUSHION
13
09321-08022
CUSHION
14
09409-05302-5PK
PIN (BLACK)
15
09403-20308
CLIP
16-2
61633-90J02-0EP
LEVER, HOOK REAR *{DF140T:983426~ DF140Z:980324~}*
16-1
61633-90J01-0EP
LEVER, HOOK RR STBD (BLACK) *{->61633-90J02-0EP USED W/61637-90J02}*
17-2
61633-90J02-0EP
LEVER, HOOK REAR *{DF140T:983426~ DF140Z:980324~}*
17-1
61634-90J01-0EP
LEVER, HOOK RR PORT (BLACK) *{->61633-90J02-0EP USED W/61638-90J02}*
18-2
61637-90J02
HOOK, ENGINE COVER RR STBD *{DF140T:983426~ DF140Z:980324~}*
18-1
61637-90J00
HOOK, ENGINE COVER RR STBD
19-1
61638-90J00
HOOK, ENGINE COVER RR PORT
19-2
61638-90J02
HOOK, ENGINE COVER RR PORT *{DF140T:983426~ DF140Z:980324~}*
20
61641-87D00
HOOK, ENGINE COVER FRONT
21
61645-90J01-0EP
LEVER, HOOK FRONT (BLACK)
22
09116-06127
BOLT (6X12)
23
09160-13014
WASHER (13.2X25X1.0)
24
09164-14008
WASHER, WAVE
25
09306-13008
BUSH, REAR
26-2
09307-13006
BUSH *{DF140T:421160~ DF140Z:421015~}*
26-1
09307-13003
BUSH, FRONT
27-2
61124-90J30
GROMMET, REMOCON CABLE *{MODEL:07~}*
27-1
61124-90J00
GROMMET, REMOCON CABLE
28
67341-90J01
HOLDER, REMOCON CABLE *{MODEL:02 ->67300-90800}*
29
67343-90J01
STOPPER, REMOCON CABLE *{MODEL:02}*
30
09407-25402
CLAMP
31
01550-06167
BOLT *{MODEL:02}*
32
01550-06257
BOLT *{MODEL:02}*
33
67341-90J32
HOLDER, REMOCON CABLE *{MODEL:03~}*
34
67343-90J20
STOPPER, REMOCON CABLE *{MODEL:03~}*
35
67344-90J00
CUSHION, REMOCON CABLE *{MODEL:03~}*
36
01550-06167
BOLT *{MODEL:03~}*
37
01580-08257
BOLT *{MODEL:03~}*
