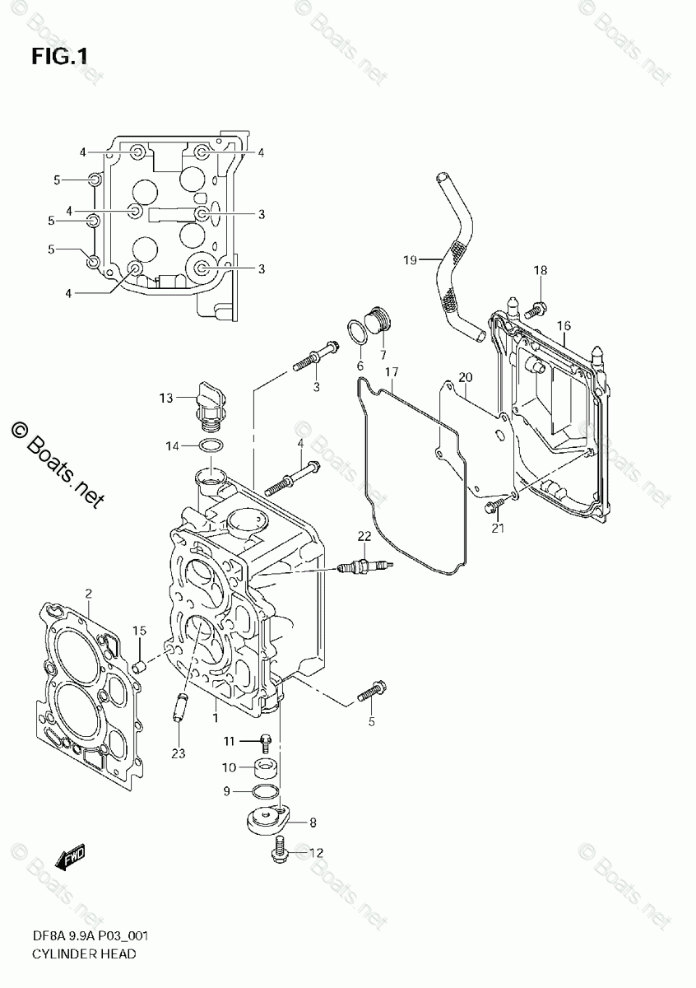

ГОЛОВКА ЦИЛИНДРА

Suzuki Marine DF 8ALK10
Suzuki Marine
#oem кодцена
1
11110-99J00
HEAD, CYLINDER
2
11141-99J00
GASKET, CYLINDER HEAD
3-1
11118-99J00
BOLT, NO.1 (8X67)
3-2
11118-99JL0
BOLT, NO.1 (8X67) *{DF8A:110001~ DF9.9A:110001~}*
4-2
11119-99JL0
BOLT, NO.2 (8X77) *{DF8A:110001~ DF9.9A:110001~}*
4-1
11119-99J00
BOLT, NO.2 (8X77)
5
01550-06257
BOLT, NO.3
6
11216-90J00
GASKET.OIL GALLERY PLUG
7
09248-22002
PLUG
8
11261-93J00
COVER, PROTECTION ANODE
9
09280-22019
O RING, PROTECTION COVER (D:1.9 ID:21.8)
10
55321-87J00
ANODE, PROTECTION
11
09103-06281
BOLT, PROTECTION ANODE
12
01550-08207
BOLT, PROTECTION COVER
13
11382-93E00
CAP, OIL FILLER
14
09280-17003
O RING, OIL FILLER CAP (D:3.1 ID:16.8)
15
04211-09109
PIN
16
11170-99J00
COVER, CYLINDER HEAD
17
11178-99J00
O RING, CYLINDER HEAD COVER
18
01550-06207
BOLT, CYLINDER HEAD COVER
19
11196-99J00
HOSE, BREATHER
20
11173-99J00
PLATE, BREATHER
21
01550-0612A
BOLT, BREATHER PLATE
22-2
09482-00L01
PLUG, SPARK (CR6E) *{DF8A:110001~ DF9.9A:110001~}*
22-1
09482-00528
PLUG, SPARK (CR6E)
23
11115-09G00-001
GUIDE, VALVE (OS) *{OPT}*
