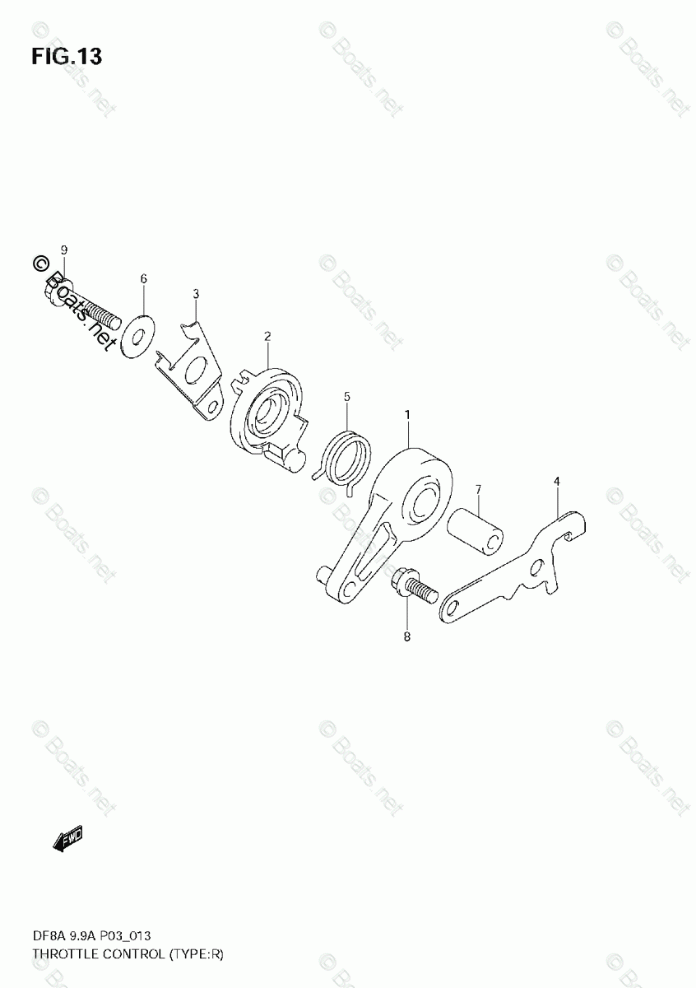

Throttle Control (Type:R)
Throttle Control (Type:R)

Throttle Control (Type:R)

Suzuki Marine DF 8ALK10

Throttle Control (Type:R)

#

oem код

название

цена

1

LEVER, THROTTLE CONTROL

LEVER, THROTTLE CONTROL

2

LEVER, INTERLINK THROTTLE NO.

LEVER, INTERLINK THROTTLE NO.

3

LEVER, INTERLINK THROTTLE NO.

LEVER, INTERLINK THROTTLE NO.

4

PLATE, THROTTLE LINK

PLATE, THROTTLE LINK

5

SPRING, THROTTLE LEVER

SPRING, THROTTLE LEVER

6

WASHER, THROTTLE LINK (6.5X20X1.5)

WASHER, THROTTLE LINK (6.5X20X1.5)

7

SPACER, THROTTLE LINK NO.1 (6.2X12.6X21)

SPACER, THROTTLE LINK NO.1 (6.2X12.6X21)

8

BOLT, THROTTLE CABLE BRACKET

BOLT, THROTTLE CABLE BRACKET

9

BOLT, THROTTLE LINK

BOLT, THROTTLE LINK
