Suzuki Marine DF 8ARLK10

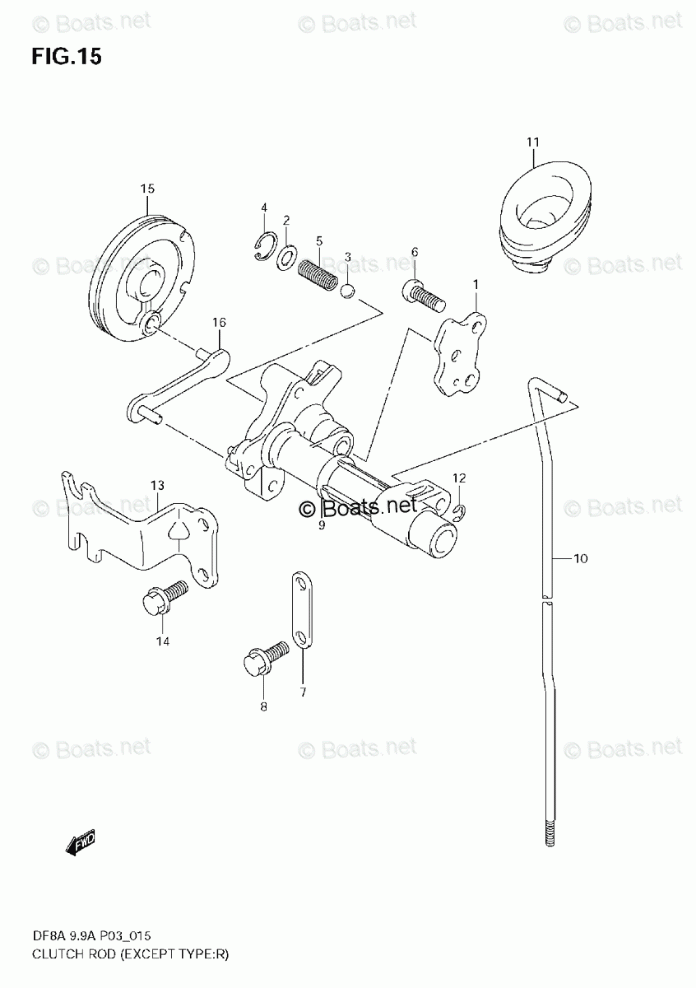

Clutch Rod (Except Type:R)

#

oem код

название

цена

1

PLATE, CLUTCH NOTCH

PLATE, CLUTCH NOTCH

2

WASHER, NOTCH SPRING (6.5X13X1)

WASHER, NOTCH SPRING (6.5X13X1)

3

BALL, CLUTCH NOTCH

BALL, CLUTCH NOTCH

4

CIRCLIP, NOTCH SPRING

CIRCLIP, NOTCH SPRING

5

SPRING, CLUTCH NOTCH

SPRING, CLUTCH NOTCH

6

SCREW, NOTCH PLATE

SCREW, NOTCH PLATE

7

HOLDER, CLUTCH SHAFT

HOLDER, CLUTCH SHAFT

8

BOLT, HOLDER

BOLT, HOLDER

9

SHAFT, CLUTCH LEVER

SHAFT, CLUTCH LEVER

10-1

ROD, CLUTCH (S)

ROD, CLUTCH (S)

10-2

ROD, CLUTCH (L)

ROD, CLUTCH (L)

11

BOOT, CLUTCH ROD

BOOT, CLUTCH ROD

12

E RING

E RING

13

BRACKET, SHIFT CABLE

BRACKET, SHIFT CABLE

14

BOLT, SHIFT CABLE BRACKET

BOLT, SHIFT CABLE BRACKET

15

DRUM, SHIFT

DRUM, SHIFT

16

LINK, SHIFT DRUM

LINK, SHIFT DRUM

17

REFER TO FIG.16(D- 3) FOR TYPE:R

REFER TO FIG.16(D- 3) FOR TYPE:R
