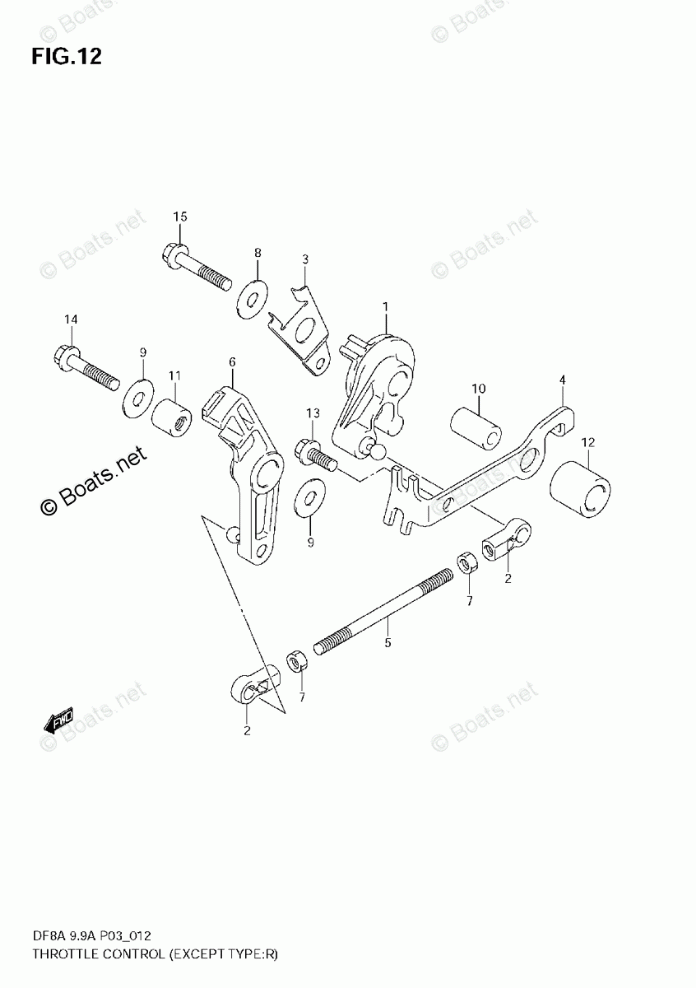

Throttle Control (Except Type:R)
Throttle Control (Except Type:R)

Throttle Control (Except Type:R)

Suzuki Marine DF 8ASK10

Throttle Control (Except Type:R)

#

oem код

название

цена

1

DRUM, THROTTLE CONTROL

DRUM, THROTTLE CONTROL

2

CONNECTOR, THROTTLE ROD

CONNECTOR, THROTTLE ROD

3

LEVER, INTERLINK THROTTLE NO.

LEVER, INTERLINK THROTTLE NO.

4

BRACKET, THROTTLE CABLE

BRACKET, THROTTLE CABLE

5

ROD, THROTTLE

ROD, THROTTLE

6

STOPPER, THROTTLE

STOPPER, THROTTLE

7

NUT, THROTTLE STOPPER ROD

NUT, THROTTLE STOPPER ROD

8

WASHER, THROTTLE LINK (6.5X20X1.5)

WASHER, THROTTLE LINK (6.5X20X1.5)

9

WASHER, THROTTLE STOPPER (6.5X20X1.5)

WASHER, THROTTLE STOPPER (6.5X20X1.5)

10

SPACER, THROTTLE LINK NO.1 (6.2X12.6X21)

SPACER, THROTTLE LINK NO.1 (6.2X12.6X21)

11

SPACER, THROTTLE STOPPER (6.2X12.6X12.5)

SPACER, THROTTLE STOPPER (6.2X12.6X12.5)

12

SPACER, THROTTLE LINK NO.2 (12.2X20X19.9)

SPACER, THROTTLE LINK NO.2 (12.2X20X19.9)

13

BOLT, THROTTLE CABLE BRACKET

BOLT, THROTTLE CABLE BRACKET

14

BOLT, THROTTLE STOPPER

BOLT, THROTTLE STOPPER

15

BOLT, THROTTLE LINK

BOLT, THROTTLE LINK

16

REFER TO FIG.13(C- 6) FOR TYPE:R

REFER TO FIG.13(C- 6) FOR TYPE:R
