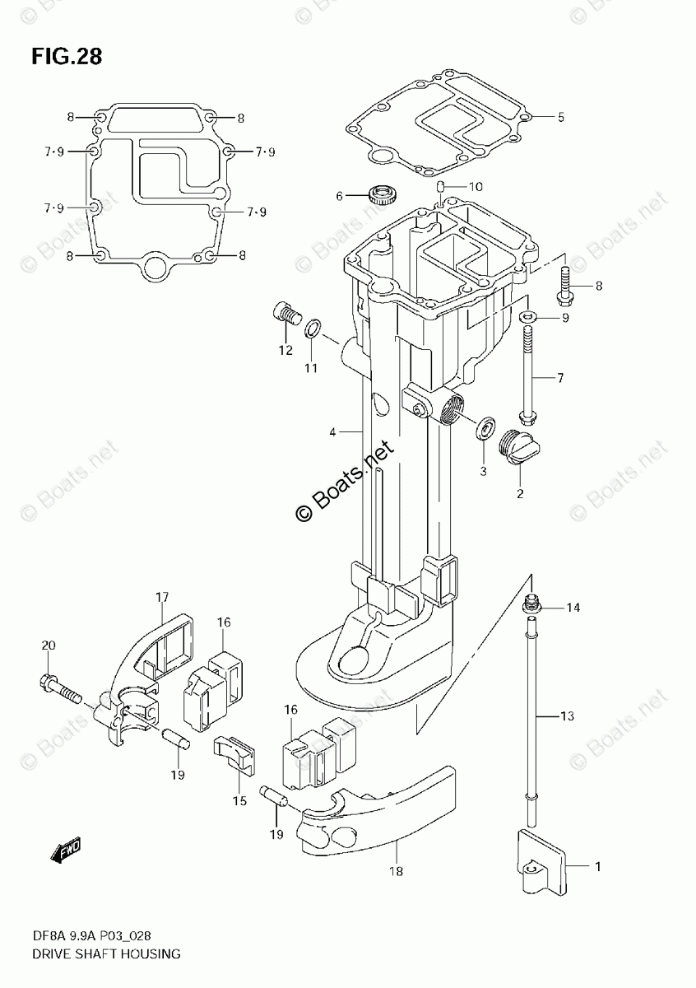

КОРПУС ПРИВОДНОГО ВАЛА

Suzuki Marine DF 8ASK10
Suzuki Marine
#oem кодцена
1
17565-99J00
GUIDE, WATER TUBE
2
17913-93J00
PLUG, WATER
3
17914-93J00
GASKET, WATER PLUG
4-2
52110-99J10-0EP
HOUSING, DRIVE SHAFT (L)
4-1
52110-99J00-0EP
HOUSING, DRIVE SHAFT (S)
5
52113-99J00
GASKET, DRIVE SHAFT HSG
6
57135-99J00
GUIDE, DRIVE SHAFT
7
09100-08228
BOLT, DRIVE SHAFT HSG (8X105)
8
09116-08122
BOLT, DRIVE SHAFT HSG (8X30)
9
09160-08082
WASHER, DRIVE SHAFT HSG (8.5X16X1.2)
10
09202-06023
PIN, KNOCK (6X10)
11
09168-12017
GASKET, DRAIN PLUG (12X17X1)
12
09248-12009
PLUG, DRAIN (12X18.65)
13-1
17561-99J00
TUBE, WATER (S)
13-2
17561-99J10
TUBE, WATER (L)
14
17563-94J00
GROMMET, WATER TUBE
15
54151-99J00
MOUNT, LWR THRUST
16
54167-99J00
MOUNT, LWR SIDE
17
54211-99J00-0EP
COVER, LWR MOUNT STBD
18
54221-99J00-0EP
COVER, LWR MOUNT PORT
19
54213-93901
PIN, KNOCK
20
09116-08138
BOLT, LWR MOUNT COVER (8X40)
