Opt:Remote Control Parts

Suzuki Marine DF 9.9ASK10
Suzuki Marine
#oem кодцена

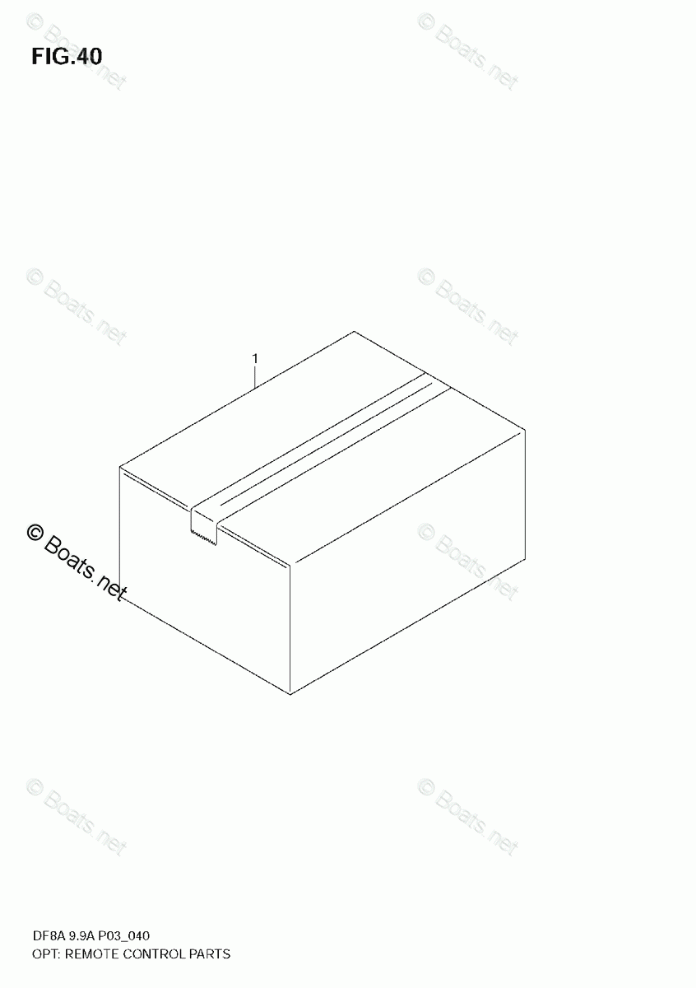

1
67130-99J00
PARTS SET, REMOTE CONTROL
2
19120-99J10
DRUM, THROTTLE CONTROL *{NOT SHOWN,REF FIG.13}*
3
19122-99J00
LEVER, INTERLINK THROTTLE NO. *{NOT SHOWN,REF FIG.13}*
4
19184-99J10
PLATE, THROTTLE LINK *{NOT SHOWN,REF FIG.13}*
5
19185-99J00
SPRING, THROTTLE LEVER *{NOT SHOWN,REF FIG.13}*
6
21241-99J00
LINK, CLUTCH LEVER *{NOT SHOWN,REF FIG.16}*
7
23210-99J00
LEVER, CLUTCH CONTROL *{NOT SHOWN,REF FIG.16}*
8
09204-01002
PIN, CLUTCH LEVER LINK *{NOT SHOWN,REF FIG.16}*
9
09160-05029
WASHER, CL LINK LEVER (5.5X12X0.8) *{NOT SHOWN,REF FIG.16}*
10
09385-04003
CLIP, CL LEVER LINK *{NOT SHOWN,REF FIG.16}*
11
43755-99J00
ATTACHMENT, STRG BRKT *{NOT SHOWN,REF FIG.26}*
12
09108-08286
BOLT, ATTACHMENT STUD *{NOT SHOWN,REF FIG.26}*
13
09159-08059
NUT, ATTACHMENT (M8) *{NOT SHOWN,REF FIG.26}*
14
09160-08082
WASHER, ATTACHMENT (8.5X16X1.2) *{NOT SHOWN,REF FIG.26}*
15
36360-99J10
INDICATOR, OIL PRESSURE *{NOT SHOWN,REF FIG.22}*
16
36610-99J20
HARNESS ASSY, WIRING *{NOT SHOWN,REF FIG.23}*
17
09481-20501
FUSE (20A) *{NOT SHOWN,REF FIG.23}*
18
36656-99J10
GROMMET, CABLE (PORT) *{NOT SHOWN,REF FIG.23}*
19
09407-14403
CLAMP, HARNESS *{NOT SHOWN,REF FIG.23}*
20
09407-14407
CLAMP, HARNESS *{NOT SHOWN,REF FIG.23}*
21
61124-99J10
GROMMET, R/CON CABLE (STBD) *{NOT SHOWN,REF FIG.30}*
22
67467-89J01
CONNECTOR, R/CON CABLE *{NOT SHOWN,REF FIG.35}*
23
09160-06055
WASHER, R/CON CABLE CONNECTOR (7X12X1) *{NOT SHOWN,REF FIG.35}*
24
09385-06012
CLIP, R/CON CABLE CONNECTOR *{NOT SHOWN,REF FIG.35}*
25
67340-99J00
HOLDER, REMOCON CABLE *{NOT SHOWN,REF FIG.35}*
26
01550-06167
BOLT, REMOCON CABLE HOLDER *{NOT SHOWN,REF FIG.35}*
