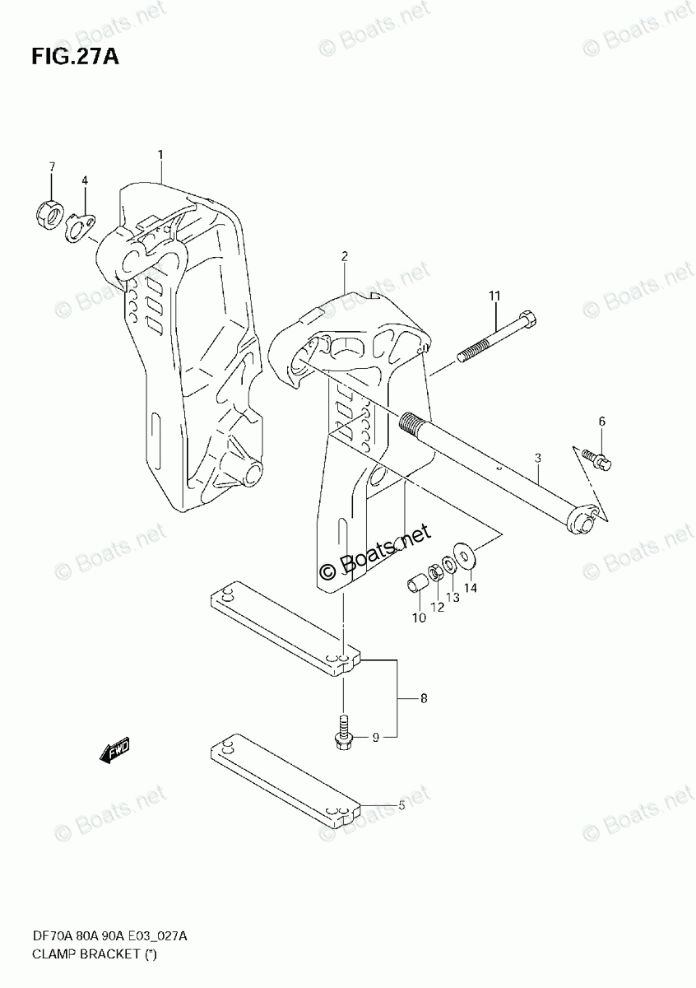

CLAMP BRACKET (SEE NOTE)
CLAMP BRACKET (SEE NOTE)

CLAMP BRACKET (SEE NOTE)

Suzuki Marine DF 70ATLK10

CLAMP BRACKET (SEE NOTE)

#

oem код

название

цена

1

41111-87L10-0EP

BRACKET, CLAMP STBD

BRACKET, CLAMP STBD

2

41121-87L10-0EP

BRACKET, CLAMP PORT

BRACKET, CLAMP PORT

3

SHAFT, CLAMP BRACKET

SHAFT, CLAMP BRACKET

4

WASHER, CLAMP BRACKET SHAFT

WASHER, CLAMP BRACKET SHAFT

5

ANODE (MAGNESIUM) *{OPT}*

ANODE (MAGNESIUM) *{OPT}*

6

BOLT, CLAMP BRKT SHAFT (8X22)

BOLT, CLAMP BRKT SHAFT (8X22)

7

NUT, CLAMP BRACKET SHAFT

NUT, CLAMP BRACKET SHAFT

8

ZINC, PROTECTION

ZINC, PROTECTION

9

BOLT (6X25)

BOLT (6X25)

10

CAP, TRANSOM BOLT

CAP, TRANSOM BOLT

11-2

BOLT (12X150,PITCH:1.25) *{OPT}*

BOLT (12X150,PITCH:1.25) *{OPT}*

11-1

BOLT (12X115,PITCH:1.25)

BOLT (12X115,PITCH:1.25)

12

NUT

NUT

13

WASHER (12.5X22X3.0)

WASHER (12.5X22X3.0)

14

WASHER (12.5X35X3.2)

WASHER (12.5X35X3.2)

15

(NOTE): DF70A:110001~, DF80A:110001~, DF90A:110001~

(NOTE): DF70A:110001~, DF80A:110001~, DF90A:110001~
