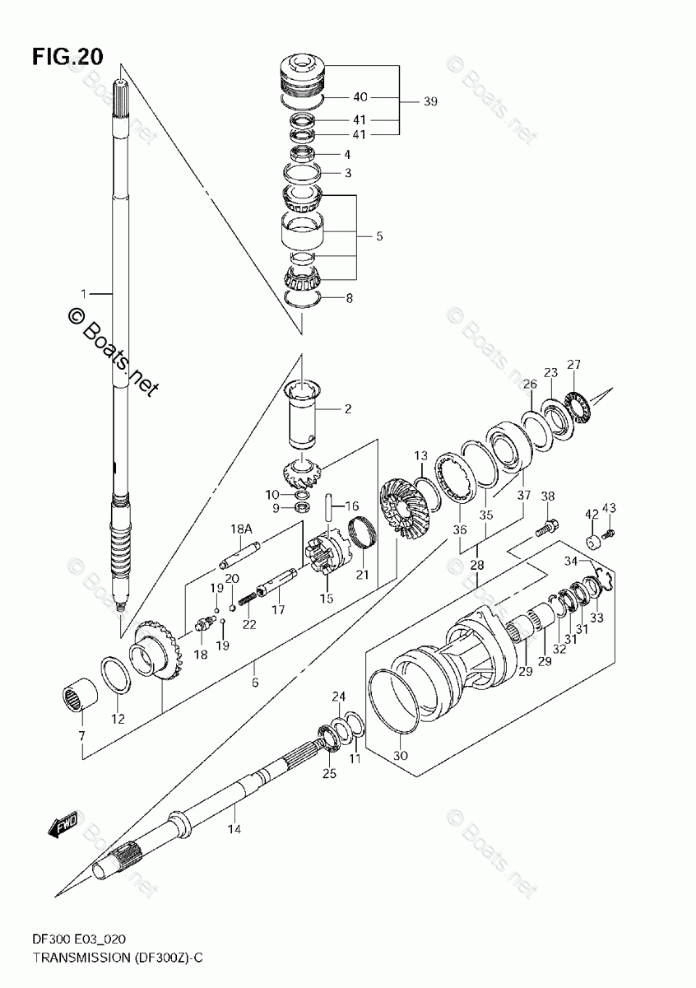

Transmission (DF300Z)
Transmission (DF300Z)

Transmission (DF300Z)

Suzuki Marine DF 300TXXZK10

oem код

название

цена

1-2

57110-98J11

SHAFT, DRIVE (XX)

1-1

57110-98J01

SHAFT, DRIVE (X)

57133-98J00

COLLAR, DRIVE SHAFT

57134-93J00

SPACER, DRIVE SHAFT BEARING

09159-28003

NUT, DRIVE SHAFT BEARING

09269-32001

BEARING, DRIVE SHAFT

6-1

57300-98830

PINION/GEAR SET *{->57300-98870 PINION/GEAR/PROP SHAFT SET}*

6-2

57300-98860

PINION/GEAR SET *{DF300Z:980242~}*

6-3

57300-98892

PINION/GEAR SET *{MODEL:10~}*

7-1

09263-25067

BEARING, PROP SHAFT FORWARD (25X32X26)

7-2

09263-28033

BEARING, PROP SHAFT FORWARD (28X37X30) *{DF300Z:980242~}*

8-10

09181-60013

SHIM (T:0.90)

8-9

09181-60012

SHIM (T:0.85)

8-8

09181-60011

SHIM (T:0.80)

8-7

09181-60010

SHIM (T:0.75)

8-6

09181-60009

SHIM (T:0.70)

8-5

09181-60008

SHIM (T:0.65)

8-3

09181-60006

SHIM (T:0.55)

8-2

09181-60005

SHIM (T:0.50)

8-1

09181-60004

SHIM (T:0.45)

8-4

09181-60007

SHIM (T:0.60)

09140-16026

NUT, PINION

08221-16256

WASHER, PINION NUT

11-6

09160-35002

WASHER (35X46X1)

11-8

09160-35003

WASHER (35X46X1.1)

11-4

09160-35006

WASHER (35X46X0.9)

11-5

09160-35008

WASHER (35X46X0.95)

11-7

09160-35009

WASHER (35X46X1.05)

11-9

09160-35010

WASHER (35X46X1.15)

11-3

09160-35013

WASHER (35X46X0.8)

11-2

09160-35014

WASHER (35X46X0.7)

11-1

09160-35015

WASHER (35X46X0.6) *{PROP SHAFT REV}*

12-3

09181-50022

SHIM (50X65X0.55)

12-4

09181-50023

SHIM (50X65X0.60)

12-1

09181-50020

SHIM (50X65X0.45) *{REV GEAR}*

12-5

09181-50024

SHIM (50X65X0.65)

12-6

09181-50025

SHIM (50X65X0.70)

12-7

09181-50026

SHIM (50X65X0.75)

12-8

09181-50027

SHIM (50X65X0.80)

12-9

09181-50028

SHIM (50X65X0.85)

12-10

09181-50029

SHIM (50X65X0.90)

12-2

09181-50021

SHIM (50X65X0.50)

13-9

09181-50036

SHIM (50X58X0.75)

13-5

09181-50032

SHIM (50X58X0.55)

13-10

09181-50037

SHIM (50X58X0.80)

13-3

09181-50030

SHIM (50X58X0.45)

13-6

09181-50033

SHIM (50X58X0.60)

13-7

09181-50034

SHIM (50X58X0.65)

13-8

09181-50035

SHIM (50X58X0.70)

13-1

09181-50041

SHIM (50X58X0.35) *{FWD GEAR}*

13-2

09181-50040

SHIM (50X58X0.40)

13-12

09181-50039

SHIM (50X58X0.90)

13-11

09181-50038

SHIM (50X58X0.85)

13-4

09181-50031

SHIM (50X58X0.50)

14-1

57610-98J10

SHAFT, PROPELLER *{->57600-98810 PROP SHAFT/REV GEAR SET}*

14-2

57610-98J30

SHAFT, PROPELLER *{DF300Z:980242~}*

15-1

57621-98J00

SHIFTER, CLUTCH DOG

15-2

57621-98J10

SHIFTER, CLUTCH DOG *{MODEL:08~}*

09202-08011

PIN, CLUTCH DOG SHIFTER

57631-98J00

PIN, CONNECTOR NO.1 *{DF300Z:~110055 ->57630-98810 PIN SET,CONNECTOR}*

18A

57631-98J10

PIN, CONNECTOR *{DF300Z:110056~}*

57632-98J00

PIN, CONNECTOR NO.2 *{DF300Z:~110055 ->57630-98810 PIN SET,CONNECTOR}*

06111-07004

BALL, DETENT NO.1

20-1

06111-11004

BALL, DETENT NO.2

20-2

06111-11004

BALL, DETENT NO.2 *{DF300Z:110056~}*

09440-56001

SPRING, CLUTCH DOG SHIFTER

09440-09040

SPRING, DETENT

57622-98J00

SPACER, FWD THRUST

09160-30056

WASHER, PROP REV (32X47X3)

09269-30014

BEARING, PROP SHAFT REV THRUS

09164-56001

WASHER, FWD THRUST (57X77)

09269-40006

BEARING, PROP SHAFT FWD THRUS (40X66X6)

56120-98J10-0EP

HOUSING, PROP SFT BRG (BLACK)

09263-30023

BEARING

09280-00040

O RING (D:3.1,ID:104.4)

OIL SEAL

СТОПОРНОЕ КОЛЬЦО

PROTECTOR, OIL SEAL

RING, PROP SHAFT OIL SEAL

56122-98J00

WASHER, FWD GEAR BEARING

56141-98J10

STOPPER, FWD GEAR BEARING

09265-50001

BEARING, FWD GEAR

09116-10145

BOLT, PROP SFT BRG HSG

56130-93J00

HOUSING, DRIVE SHAFT BRG

09280-66004

O RING (D:3.1,ID:65.4)

09282-24004

OIL SEAL

55321-87J00

ANODE, PROTECTION

09103-06281

BOLT, ANODE PROTECTION
