Upper Casing Каталог оригинальных запчастей для лодочных моторов Yamaha F200XB (2013)

ОПТОВО-РОЗНИЧНЫЙ МАГАЗИН МОТОЗАПЧАСТЕЙ

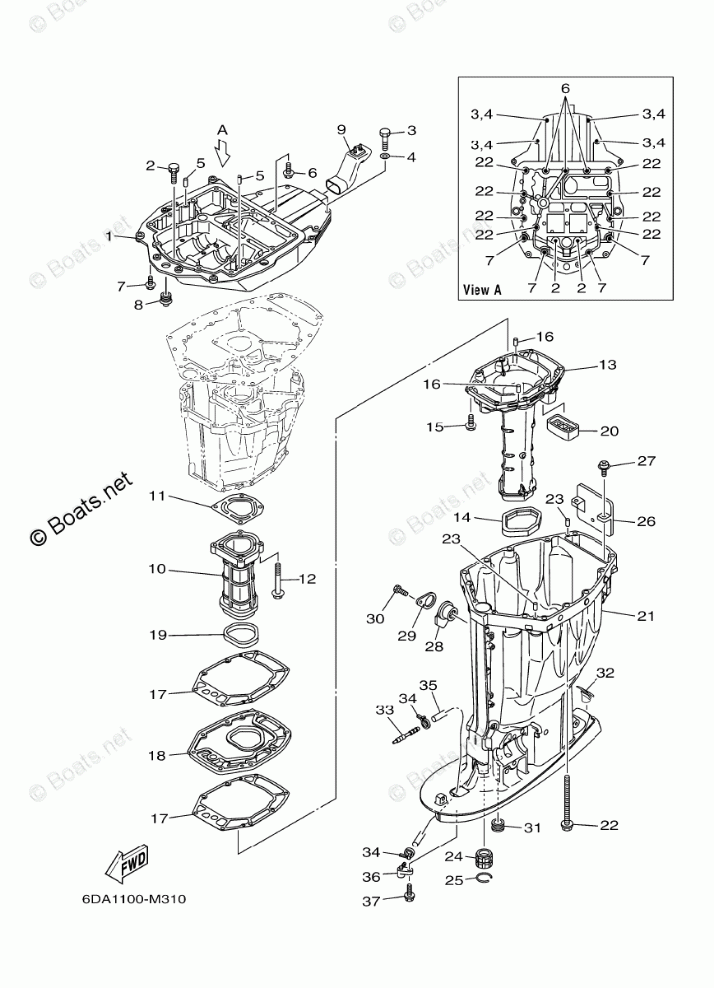

Upper Casing

Yamaha F200XB

Upper Casing

#

oem код

название

цена

1

63P-41137-03-CA

GUIDE, EXHAUST

GUIDE, EXHAUST

2

BOLT, WITH WASHER

BOLT, WITH WASHER

3

BOLT

BOLT

4

WASHER

WASHER

5

PIN, DOWEL

PIN, DOWEL

6

BOLT, WITH WASHER

BOLT, WITH WASHER

7

BOLT, WITH WASHER

BOLT, WITH WASHER

8

6E5-42724-00-00

GROMMET

GROMMET

9

6DA-42769-00-00

SEAL, RUBBER

SEAL, RUBBER

10

63P-41131-01-9S

MANIFOLD, EXT. 1

MANIFOLD, EXT. 1

11

63P-41133-A0-00

GASKET, EXHAUST MANIFOLD 1

GASKET, EXHAUST MANIFOLD 1

12

BOLT, WITH WASHER

BOLT, WITH WASHER

13

6DA-14711-00-9S

MUFFLER 1

MUFFLER 1

14

69J-45123-00-00

GASKET, MUFFLER

GASKET, MUFFLER

15

BOLT, WITH WASHER

BOLT, WITH WASHER

16

PIN, DOWEL

PIN, DOWEL

17

63P-41134-A1-00

GASKET, EXHAUST MANIFOLD

GASKET, EXHAUST MANIFOLD

18

63P-45181-01-9S

PLATE

PLATE

19

63P-41138-00-00

SEAL, EXT. 1

SEAL, EXT. 1

20

69J-45127-00-00

SEAL

SEAL

21

6DA-45111-00-8D

CASING, UPPER

CASING, UPPER

22

BOLT, WITH WASHER

BOLT, WITH WASHER

23

PIN, DOWEL

PIN, DOWEL

24

6E5-45318-00-00

BUSHING, DRIVE SHAFT

BUSHING, DRIVE SHAFT

25

СТОПОРНОЕ КОЛЬЦО

СТОПОРНОЕ КОЛЬЦО

26

69J-14624-01-00

COVER, EXHAUST

COVER, EXHAUST

27

SCREW, WITH WASHER

SCREW, WITH WASHER

28

6BB-15316-00-00

DAMPER 1

DAMPER 1

29

6BB-45152-01-00

COVER, UPPER CASING 2

COVER, UPPER CASING 2

30

BOLT

BOLT

31

6E5-44366-00-00

DAMPER, WATER SEAL 2

DAMPER, WATER SEAL 2

32

6DA-45155-00-00

CAP

CAP

33

6E5-83558-00-00

END, NIPPLE

END, NIPPLE

34

CLAMP

CLAMP

35

HOSE (L1400)

HOSE (L1400)

36

63P-45379-00-00

NIPPLE, HOSE

NIPPLE, HOSE

37

BOLT, WITH WASHER

BOLT, WITH WASHER
