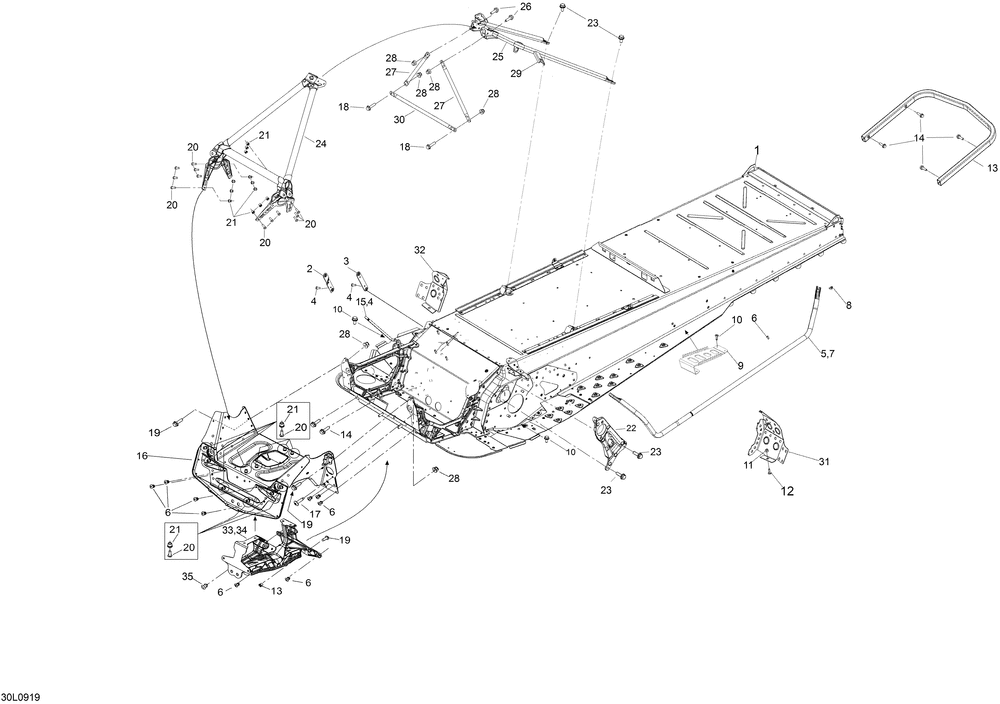

Рама

Ski-Doo (Bombardier) Expedition TUV 600 H.O. SDI REV-XU
Ski-Doo (Bombardier)
#oem кодцена
1
518326073
Chassis *frame
2
518326123
Gearbox Counter Plate Front
3
518326124
Gearbox Counter Plate Rear
4
390402200
Заклепка 3/16
5
605254999
Footboard Support Tube Lh
6
207662044
Винт
7
605255000
Footboard Support Tube Rh
8
207561644
Винт
9
605354068
Repose Pied *footrest
11
233281414
Гайка
12
250000128
Винт Torx (отпуск.по 10 шт)
13
511000563
Rack Bar
14
207661644
Винт
15
514054616
Attache Ressort*brachet-spring
16
518325924
Module S *cross Member
17
210262080
Винт
18
207662544
Винт
19
293150175
Monobolt 4.8 *monobolt 4.8
21
233261414
Гайка
22
518325933
Support Poulie *pulley Support
23
207582586
Винт
24
518325929
embrure Av *member-front
25
518326103
Upper Support Tube Weld
26
207562034
Винт
27
518325114
Support Colonne*support
29
414227300
Пружина
30
518325115
Support Colonne*upper Column
31
518325528
Toe Hook Lh
32
518325529
Toe Hook Rh
33
518325922
Longeron Dr *rh Member
34
518325923
Longeron Ga *lh Member
19
293150179
Magna-lok 6 *magna-lok 6
10
207662044
Винт
20
207662044
Винт
24
518326555
Membrure Av *member-front
28
233261414
Гайка
