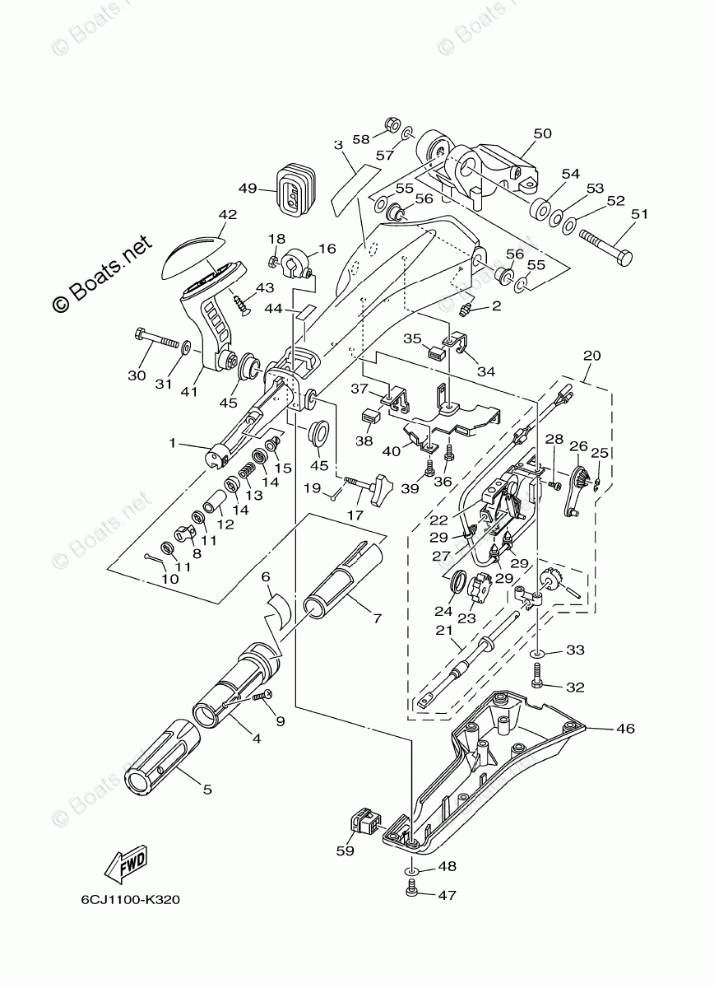

OPTIONAL PARTS 1

Yamaha F70LA
Yamaha
#oem кодцена
1
6X4-42111-02-8D
HANDLE, STEERING
2
93700-06M03-00
NIPPLE, GREASE
3
6X4-48215-00-00
GRAPHIC
4
6X4-42119-01-00
GRIP, STEERING HANDLE
5
6X4-42177-00-00
RUBBER, HANDLE
6
6X4-42137-00-00
INDICATOR, THROTTLE
7
6X4-41291-00-00
BUSHING
8
6X4-44139-01-00
COLLAR
9
90152-05007-00
SCREW, COUNTERSUNK
10
91490-20010-00
PIN. COTTER
11
6X4-44177-00-00
WASHER
12
6X4-42128-00-00
COLLAR, DISTANCE 1
13
90501-23215-00
SPRING, COMPRESSION
14
6X4-44188-00-00
WASHER
15
90386-08032-00
BUSH
16
63D-42126-00-00
FRICTION, STEERING HANDLE GRIP
17
6X4-48154-00-00
KNOB, THROTTLE
18
95380-06600-00
NUT, HEXAGON
19
91490-20010-00
PIN. COTTER
20
6X4-44100-00-00
SHIFT LINK ASSY
21
6X4-42115-00-00
SHAFT, STEERING HANDLE
22
6X4-44102-00-00
SHIFT ASSIST ASSY
23
6X4-47731-00-00
GEAR, DRIVE
24
6X4-44132-00-00
BUSHING
25
6X4-14137-00-00
CLIP
26
6X4-48261-00-00
ARM, THROTTLE
27
6X4-82540-00-00
NEUTRAL SWITCH ASSY
28
6A5-48129-10-00
SCREW 3
29
6X4-42821-00-00
BAND, CLAMP
30
97095-08040-00
BOLT
31
92995-08600-00
WASHER
32
97095-06030-00
BOLT
33
92995-06600-00
WASHER
34
6X4-48538-00-00
CLAMP, CABLE 1
35
6X4-26367-00-00
PROTECTOR
36
97095-06014-00
BOLT
37
6X4-48538-10-00
CLAMP, CABLE 1
38
6X4-26367-00-00
PROTECTOR
39
97095-06014-00
BOLT
40
6X4-42159-00-00
STAY
41
6X4-44159-00-8D
HANDLE, GEAR SHIFT
42
6X4-44173-00-00
LEVER, SHIFT CONTROL
43
97780-60920-00
SCREW, TAPPING
44
6G8-44191-00-00
INDICATOR, SHIFT
45
90386-26MA3-00
BUSH
46
6X4-42131-01-00
COVER, HANDLE STEERING
47
97885-06016-00
SCREW, PAN HEAD
48
92995-06600-00
WASHER
49
6X4-42725-01-00
GROMMET
50
63D-42121-22-8D
BRACKET
51
90101-12014-00
BOLT
52
92990-12200-00
WASHER, PLAIN
53
90206-12M22-00
WASHER, WAVE
54
90387-12M02-00
COLLAR
55
90201-12035-00
WASHER, PLATE
56
90386-12003-00
BUSH
57
92990-12600-00
WASHER, PLATE
58
90185-12M12-00
NUT, SELF-LOCKING
59
6X4-42728-10-00
CAP
