Control Каталог оригинальных запчастей для лодочных моторов Yamaha F115TJR (2010)

ОПТОВО-РОЗНИЧНЫЙ МАГАЗИН МОТОЗАПЧАСТЕЙ

Control

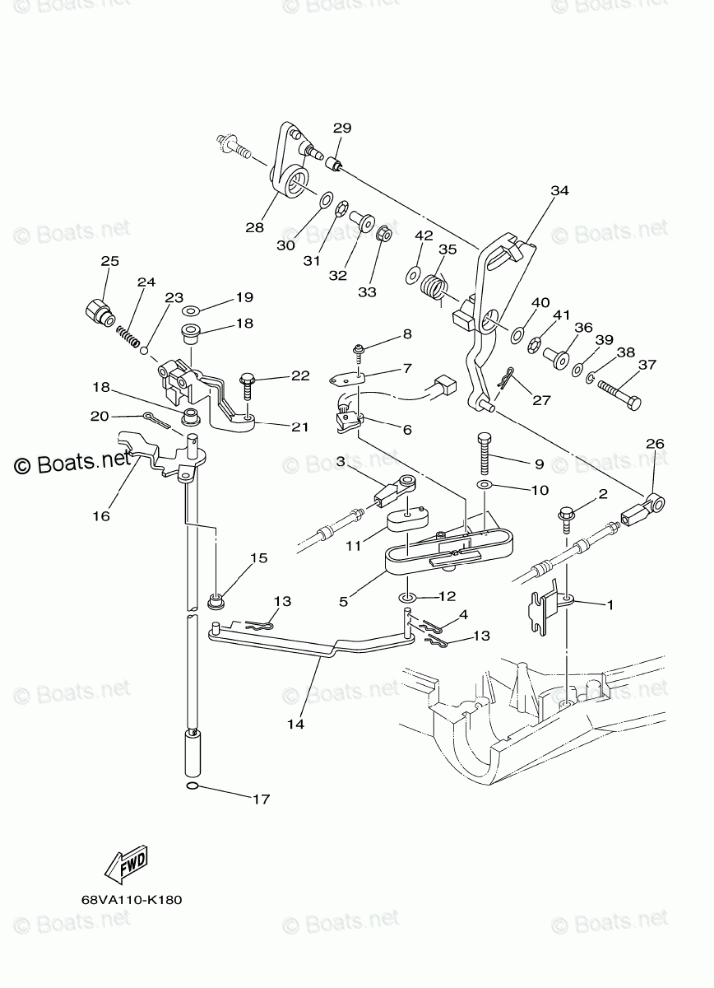

Yamaha F115TJR

Control

#

oem код

название

цена

1

67F-48538-00-00

CLAMP, CABLE 1

CLAMP, CABLE 1

2

BOLT

BOLT

3

663-48344-00-00

CABLE END, REMOTE CONTROL

CABLE END, REMOTE CONTROL

4

CLIP

CLIP

5

68V-44117-01-94

BRACKET

BRACKET

9

BOLT

BOLT

10

WASHER

WASHER

11

68V-44122-01-00

BUSHING, SHIFT ROD LEVER

BUSHING, SHIFT ROD LEVER

12

WASHER, PLATE

WASHER, PLATE

13

CLIP

CLIP

14

68V-44121-00-00

LEVER, SHIFT ROD

LEVER, SHIFT ROD

15

BUSH

BUSH

16

68V-44120-10-00

HANDLE GEAR SHIFT ASSY

HANDLE GEAR SHIFT ASSY

17

O-RING

O-RING

18

BUSH

BUSH

19

WASHER, PLATE

WASHER, PLATE

20

PIN. COTTER

PIN. COTTER

21

68V-44118-00-94

BRACKET

BRACKET

22

BOLT, WITH WASHER

BOLT, WITH WASHER

23

BALL

BALL

24

SPRING, COMPRESSION

SPRING, COMPRESSION

25

648-42715-00-00

BUSHING

BUSHING

26

663-48344-00-00

CABLE END, REMOTE CONTROL

CABLE END, REMOTE CONTROL

27

CLIP

CLIP

28

68V-42157-00-00

LEVER, THROTTLE

LEVER, THROTTLE

29

68V-42171-00-00

BUSHING

BUSHING

30

WASHER, PLATE

WASHER, PLATE

31

WASHER, WAVE

WASHER, WAVE

32

COLLAR

COLLAR

33

NUT

NUT

34

68V-42154-00-00

LEVER, THROTTLE CONTROL

LEVER, THROTTLE CONTROL

35

67F-44135-00-00

SPRING

SPRING

36

COLLAR

COLLAR

37

BOLT

BOLT

38

WASHER, SPRING

WASHER, SPRING

39

WASHER

WASHER

40

WASHER, PLATE

WASHER, PLATE

41

WASHER, WAVE

WASHER, WAVE

42

WASHER, PLATE

WASHER, PLATE
