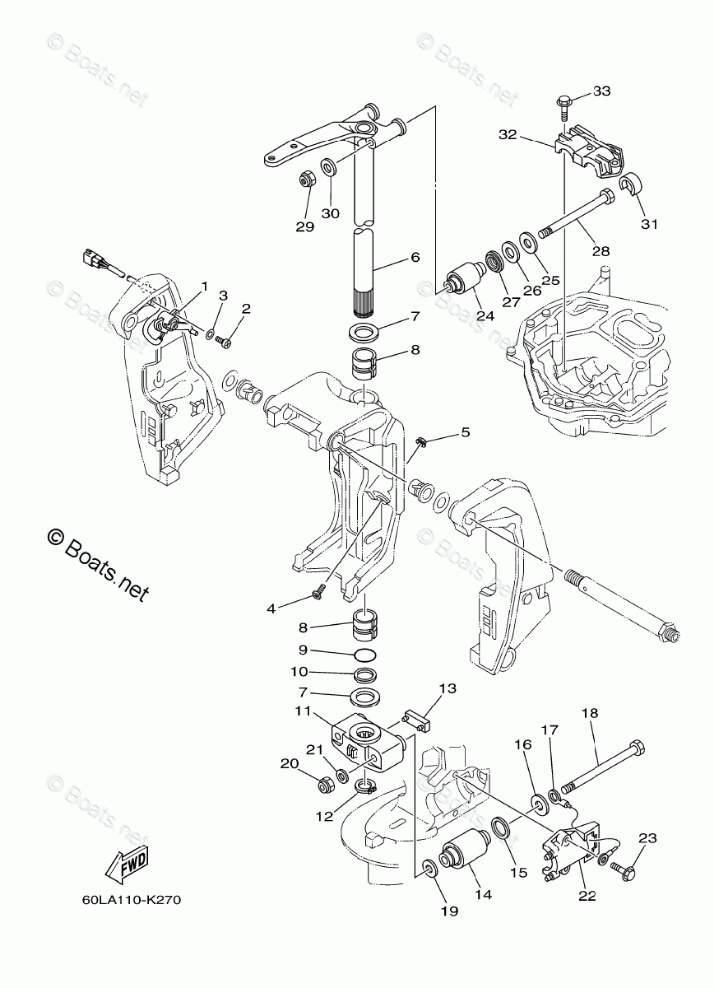

Bracket 2 Каталог оригинальных запчастей для лодочных моторов Yamaha F250TUR (2010)

ОПТОВО-РОЗНИЧНЫЙ МАГАЗИН МОТОЗАПЧАСТЕЙ

Bracket 2

Yamaha F250TUR

Bracket 2

#

oem код

название

цена

1

69J-83672-11-00

TRIM SENDER

TRIM SENDER

2

SCREW, PAN HEAD

SCREW, PAN HEAD

3

WASHER

WASHER

4

61A-43376-00-00

BOLT, THRUST RECEIVER

BOLT, THRUST RECEIVER

5

NUT, FLANGE

NUT, FLANGE

6

69J-42510-00-8D

STEERING BRACKET ASSY

STEERING BRACKET ASSY

7

WASHER, PLATE

WASHER, PLATE

8

BUSH

BUSH

9

O-RING

O-RING

10

WASHER, PLATE

WASHER, PLATE

11

69J-44551-00-8D

HOUSING, LOWER MOUNT RUBBER 1

HOUSING, LOWER MOUNT RUBBER 1

12

СТОПОРНОЕ КОЛЬЦО

СТОПОРНОЕ КОЛЬЦО

13

61A-44575-00-00

DAMPER, LOWER MOUNT RUBBER

DAMPER, LOWER MOUNT RUBBER

14

60X-44555-00-00

MOUNT DAMPER, LOWER SIDE

MOUNT DAMPER, LOWER SIDE

15

WASHER, PLATE

WASHER, PLATE

16

WASHER, PLATE

WASHER, PLATE

17

6E5-82149-00-00

WIRE, LEAD 3

WIRE, LEAD 3

18

BOLT

BOLT

19

WASHER, PLATE

WASHER, PLATE

20

NUT, SELF-LOCKING

NUT, SELF-LOCKING

21

WASHER

WASHER

22

61A-44552-01-CA

HOUSING, LOWER MOUNT RUBBER 2

HOUSING, LOWER MOUNT RUBBER 2

23

BOLT, WITH WASHER

BOLT, WITH WASHER

24

69J-44514-00-00

MOUNT DAMPER, UPPER SIDE

MOUNT DAMPER, UPPER SIDE

25

WASHER, PLATE

WASHER, PLATE

26

WASHER, PLATE

WASHER, PLATE

27

69J-44532-00-00

STOPPER, UPPER MOUNT

STOPPER, UPPER MOUNT

28

BOLT

BOLT

29

NUT, SELF-LOCKING

NUT, SELF-LOCKING

30

WASHER

WASHER

31

69J-44533-00-00

DAMPER, UPPER MOUNT RUBBER

DAMPER, UPPER MOUNT RUBBER

32

61A-44511-01-00

COVER, UPPER MOUNT

COVER, UPPER MOUNT

33

BOLT, WITH WASHER

BOLT, WITH WASHER
