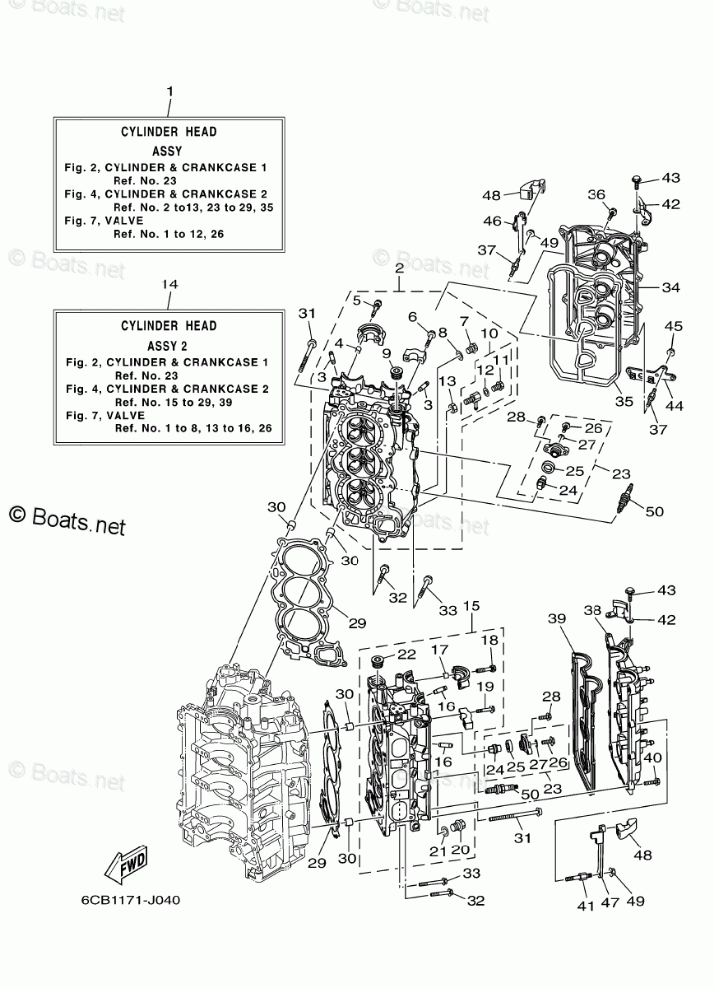

Cylinder Crankcase 2

Yamaha VF225LA
Yamaha
#oem кодцена
1
6CB-W009A-00-94
CYLINDER HEAD COMPLETE
2
6CB-11110-00-94
CYLINDER HEAD ASSY
3
6S5-11133-10-00
GUIDE, VALVE 1
4
91809-08006-00
PIN, DOWEL
5
90119-07001-00
BOLT, WITH WASHER
6
90119-07234-00
BOLT, WITH WASHER
7
90340-18M09-00
PLUG, STRAIGHT SCREW
8
90430-18130-00
GASKET
9
90340-27001-00
PLUG, STRAIGHT SCREW
10
6CB-83609-00-00
CONNECTOR ASSY
11
90340-14M06-00
PLUG, STRAIGHT SCREW
12
90430-14115-00
GASKET
13
95380-14700-00
NUT
14
6CB-W009C-00-94
CYLINDER HEAD 2 COMPLETE
15
6CB-11120-00-94
CYLINDER HEAD ASSY 2
16
6S5-11133-10-00
GUIDE, VALVE 1
17
91809-08006-00
PIN, DOWEL
18
90119-07001-00
BOLT, WITH WASHER
19
90119-07234-00
BOLT, WITH WASHER
20
90340-18M09-00
PLUG, STRAIGHT SCREW
21
90430-18130-00
GASKET
22
90340-27001-00
PLUG, STRAIGHT SCREW
23
67F-11301-00-00
ANODE COVER ASSY
24
67F-11325-01-00
ANODE
25
67F-11328-00-00
GROMMET, ANODE
26
90105-06M07-00
BOLT, FLANGE
27
90430-06M03-00
GASKET
28
95885-08025-00
BOLT, FLANGE
29
6CB-11181-00-00
GASKET, CYLINDER HEAD 1
30
90387-11005-00
COLLAR
31
90155-11002-00
SCREW, FLAT FILLISTER
32
90105-08175-00
BOLT, FLANGE
33
90105-08220-00
BOLT, FLANGE
34
6CB-11191-00-00
COVER, CYLINDER HEAD 1
35
6CB-11193-00-00
GASKET, HEAD COVER 1
36
95895-06030-00
BOLT, FLANGE
37
90109-06277-00
BOLT
38
6CB-11192-00-00
COVER, CYLINDER HEAD 2
39
6CB-11194-00-00
GASKET, HEAD COVER 2
40
95895-06030-00
BOLT, FLANGE
41
90109-06277-00
BOLT
42
6AW-15142-00-00
GUIDE 1
43
95885-06014-00
BOLT, FLANGE
44
6CB-2134V-00-00
BRACKET
45
90179-06M28-00
NUT
46
6CB-11998-00-00
BRACKET 1
47
6CB-11999-00-00
BRACKET 2
48
6CB-42662-00-00
DAMPER
49
90179-06M28-00
NUT
50
NGK-LFR6A-11-00
PLUG, SPARK (NGK LFR6A-11)
