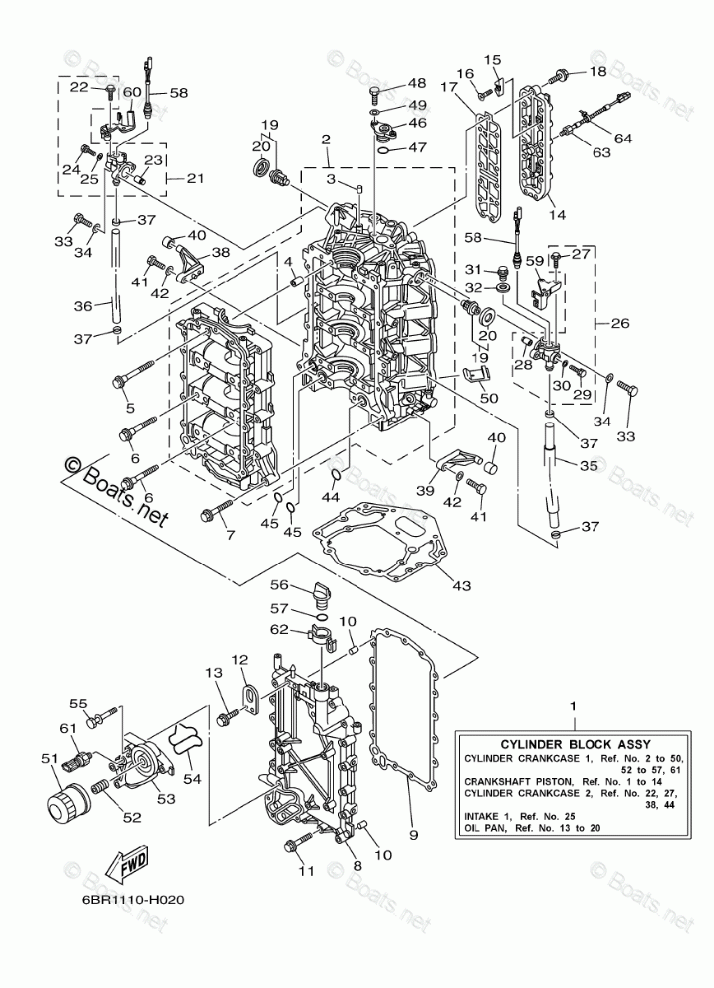

Cylinder Crankcase 1
Cylinder Crankcase 1

Cylinder Crankcase 1

Yamaha LF250BTUR

Cylinder Crankcase 1

#

oem код

название

цена

1

6BR-W009B-00-9S

CYLINDER BLOCK ASSY

CYLINDER BLOCK ASSY

2

6BR-15100-00-9S

CRANKCASE ASSY

CRANKCASE ASSY

3

PIN, DOWEL

PIN, DOWEL

4

PIN, DOWEL

PIN, DOWEL

5

69J-15187-00-00

BOLT

BOLT

6

69J-15481-00-00

BOLT 1

BOLT 1

7

BOLT, WITH WASHER

BOLT, WITH WASHER

8

6P2-15411-01-9S

COVER, CRANKCASE 1

COVER, CRANKCASE 1

9

69J-15451-00-00

GASKET, CRANKCASE COVER 1

GASKET, CRANKCASE COVER 1

10

PIN, DOWEL

PIN, DOWEL

11

BOLT, WITH WASHER

BOLT, WITH WASHER

12

69J-11119-00-00

HANGER, ENGINE

HANGER, ENGINE

13

BOLT, WITH WASHER

BOLT, WITH WASHER

14

6P2-1131C-00-9S

COVER, JOINT

COVER, JOINT

15

6E5-11325-00-00

ANODE

ANODE

16

SCREW, FLAT HEAD

SCREW, FLAT HEAD

17

6P2-1131B-00-00

GASKET, COVER

GASKET, COVER

18

BOLT, WITH WASHER

BOLT, WITH WASHER

19

67F-12411-01-00

THERMOSTAT

THERMOSTAT

20

67F-12412-00-00

SEAL, THERMOSTAT

SEAL, THERMOSTAT

21

6P2-1240H-00-9S

ANODE ASSY

ANODE ASSY

22

BOLT

BOLT

23

6P3-11325-00-00

ANODE

ANODE

24

BOLT, FLANGE

BOLT, FLANGE

25

GASKET

GASKET

26

6P3-1240H-00-9S

ANODE ASSY

ANODE ASSY

27

BOLT

BOLT

28

6P3-11325-00-00

ANODE

ANODE

29

BOLT, FLANGE

BOLT, FLANGE

30

GASKET

GASKET

31

PLUG, STRAIGHT SCREW

PLUG, STRAIGHT SCREW

32

GASKET

GASKET

33

BOLT

BOLT

34

WASHER

WASHER

35

6P2-1243A-00-00

HOSE 1

HOSE 1

36

69J-1243E-00-00

HOSE 2

HOSE 2

37

CLAMP

CLAMP

38

67F-42761-01-94

STOPPER

STOPPER

39

6P2-42761-00-94

STOPPER

STOPPER

40

68F-44533-01-00

DAMPER, UPPER MOUNT RUBBER

DAMPER, UPPER MOUNT RUBBER

41

BOLT

BOLT

42

WASHER

WASHER

43

69J-11351-11-00

GASKET, CYLINDER

GASKET, CYLINDER

44

O-RING

O-RING

45

O-RING

O-RING

46

69J-11313-00-94

PLUG, BLIND

PLUG, BLIND

47

O-RING

O-RING

48

BOLT

BOLT

49

WASHER

WASHER

50

69J-14664-00-00

GROMMET, WATER SHUT

GROMMET, WATER SHUT

51

69J-13440-01-00

ELEMENT ASSY, OIL CLEANER

ELEMENT ASSY, OIL CLEANER

52

69J-12858-00-00

BOLT, UNION

BOLT, UNION

53

6BR-13446-00-9S

CONNECTOR

CONNECTOR

54

6P2-13477-00-00

GASKET

GASKET

55

BOLT, WITH WASHER

BOLT, WITH WASHER

56

6G8-15363-00-00

PLUG, OIL

PLUG, OIL

57

O-RING

O-RING

58

6P2-82560-01-00

THERMO SWITCH ASSY

THERMO SWITCH ASSY

59

6P2-82588-00-00

PLATE

PLATE

60

6P2-82389-00-00

PLATE 2

PLATE 2

61

6AW-83651-00-00

SENDER, OIL PRESSURE

SENDER, OIL PRESSURE

62

6P2-83597-00-00

CLAMP

CLAMP

63

6P2-85780-00-00

SENSOR, KNOCK

SENSOR, KNOCK

64

CLAMP

CLAMP
