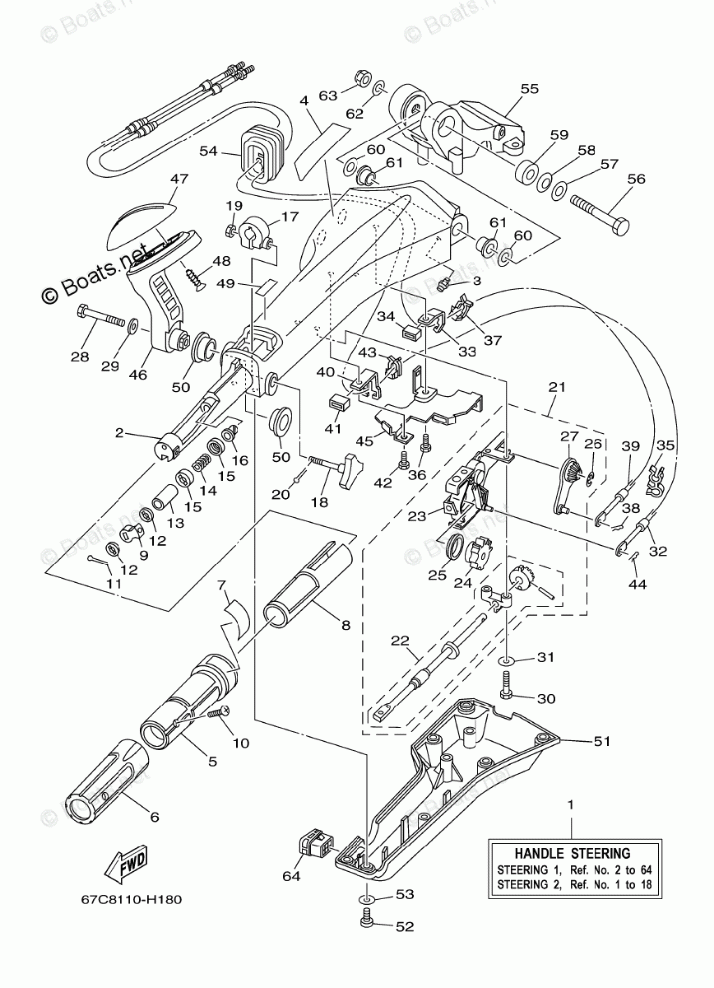

Steering 1

Yamaha F40BMLH

Steering 1

#

oem код

название

цена

1

6X4-42101-F2-4D

HANDLE, STEERING

HANDLE, STEERING

2

6X4-42111-01-4D

HANDLE, STEERING

HANDLE, STEERING

3

NIPPLE, GREASE

NIPPLE, GREASE

4

6X4-48215-10-00

GRAPHIC

GRAPHIC

5

6X4-42119-00-00

GRIP, STEERING HANDLE

GRIP, STEERING HANDLE

6

6X4-42177-00-00

RUBBER, HANDLE

RUBBER, HANDLE

7

6X4-42137-00-00

INDICATOR, THROTTLE

INDICATOR, THROTTLE

8

6X4-41291-00-00

BUSHING

BUSHING

9

6X4-44139-00-00

COLLAR

COLLAR

10

SCREW, COUNTERSUNK

SCREW, COUNTERSUNK

11

PIN. COTTER

PIN. COTTER

12

6X4-44177-00-00

WASHER

WASHER

13

6X4-42128-00-00

COLLAR, DISTANCE 1

COLLAR, DISTANCE 1

14

SPRING, COMPRESSION

SPRING, COMPRESSION

15

6X4-44188-00-00

WASHER

WASHER

16

BUSH

BUSH

17

63D-42126-00-00

FRICTION, STEERING HANDLE GRIP

FRICTION, STEERING HANDLE GRIP

18

6X4-48154-00-00

KNOB, THROTTLE

KNOB, THROTTLE

19

NUT, HEXAGON

NUT, HEXAGON

20

PIN. COTTER

PIN. COTTER

21

6X4-44100-10-00

SHIFT LINK ASSY

SHIFT LINK ASSY

22

6X4-42115-00-00

SHAFT, STEERING HANDLE

SHAFT, STEERING HANDLE

23

6X4-44102-00-00

SHIFT ASSIST ASSY

SHIFT ASSIST ASSY

24

6X4-47731-00-00

GEAR, DRIVE

GEAR, DRIVE

25

6X4-44132-00-00

BUSHING

BUSHING

26

6X4-14137-00-00

CLIP

CLIP

27

6X4-48261-00-00

ARM, THROTTLE

ARM, THROTTLE

28

BOLT

BOLT

29

WASHER

WASHER

30

BOLT

BOLT

31

WASHER

WASHER

32

67C-48321-11-00

CABLE

CABLE

33

6X4-48538-00-00

CLAMP, CABLE 1

CLAMP, CABLE 1

34

6X4-26367-00-00

PROTECTOR

PROTECTOR

35

CLAMP

CLAMP

36

BOLT

BOLT

37

63D-48538-00-00

CLAMP, CABLE 1

CLAMP, CABLE 1

38

CLIP

CLIP

39

69W-26301-00-00

THROTTLE CABLE ASSY

THROTTLE CABLE ASSY

40

6X4-48538-10-00

CLAMP, CABLE 1

CLAMP, CABLE 1

41

6X4-26367-00-00

PROTECTOR

PROTECTOR

42

BOLT

BOLT

43

63D-48538-00-00

CLAMP, CABLE 1

CLAMP, CABLE 1

44

CLIP

CLIP

45

6X4-42159-00-00

STAY

STAY

46

6X4-44159-00-4D

HANDLE, GEAR SHIFT

HANDLE, GEAR SHIFT

47

6X4-44173-00-00

LEVER, SHIFT CONTROL

LEVER, SHIFT CONTROL

48

SCREW, TAPPING

SCREW, TAPPING

49

6G8-44191-00-00

INDICATOR, SHIFT

INDICATOR, SHIFT

50

BUSH

BUSH

51

6X4-42131-01-00

COVER, HANDLE STEERING

COVER, HANDLE STEERING

52

SCREW, PAN HEAD

SCREW, PAN HEAD

53

WASHER

WASHER

54

6X4-42725-10-00

GROMMET

GROMMET

55

63D-42121-22-4D

BRACKET

BRACKET

56

BOLT

BOLT

57

WASHER, PLAIN

WASHER, PLAIN

58

WASHER, WAVE

WASHER, WAVE

59

COLLAR

COLLAR

60

WASHER, PLATE

WASHER, PLATE

61

BUSH

BUSH

62

WASHER, PLATE

WASHER, PLATE

63

NUT, SELF-LOCKING

NUT, SELF-LOCKING

64

6X4-42728-10-00

CAP

CAP
