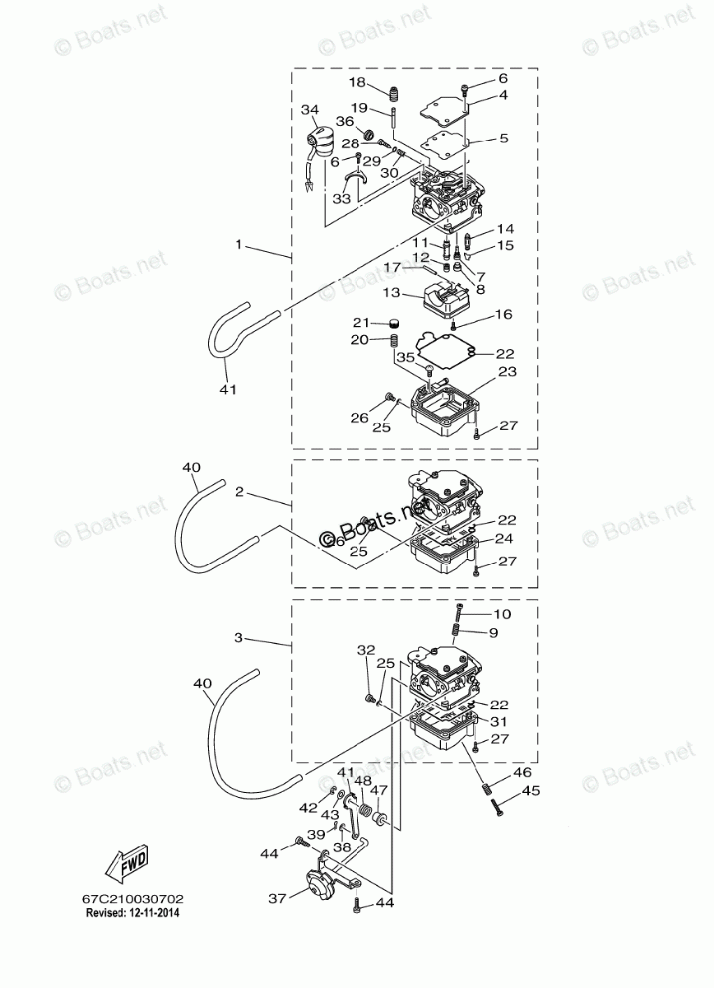

CARBURETOR

Yamaha F40BTLR
Yamaha
#oem кодцена
1
67C-14901-13-00
CARBURETOR ASSY 1
2
67C-14902-13-00
CARBURETOR ASSY 2
3
67C-14903-13-00
CARBURETOR ASSY 3
4
65W-14572-00-00
PLATE
5
65W-14126-10-00
GASKET
6
97803-04010-00
SCREW, PAN HEAD
7
67C-14948-02-00
JET (#38)
8
679-14966-00-00
RUBBER CAP
9
90501-10326-00
SPRING, COMPRESSION
10
63V-14523-00-00
SCREW, STOP
11
67C-14948-01-00
JET (#35)
12
67C-14943-25-00
JET, MAIN (#95)
13
63V-14985-00-00
FLOAT
14
6AH-14546-00-00
VALVE, NEEDLE
15
663-14159-00-00
CLIP
16
98580-04008-00
SCREW, PAN HEAD
17
6H4-14548-00-00
PIN, FLOAT ARM
18
65W-14373-01-00
COVER, PLUNGER CAP
19
67C-14379-10-00
ROD, STARTER
20
65W-14335-00-00
SPRING, PLUNGER
21
67C-14371-00-00
PLUNGER, STARTER
22
65W-14384-00-00
GASKET, FLOAT CHAMBER
23
67C-14980-00-00
BODY, FLOAT CHAMBER
24
67C-14981-00-00
BODY, FLOAT CHAMBER
25
65W-14398-00-00
GASKET
26
65W-14992-00-00
SCREW, DRAIN
27
97980-04114-00
SCREW, WITH WASHER
28
67C-14923-00-00
SCREW, PILOT
29
67C-14397-00-00
O-RING
30
67C-14555-00-00
SPRING
31
67C-14982-00-00
BODY, FLOAT CHAMBER
32
67C-14992-00-00
SCREW, DRAIN
33
65W-14346-00-00
PLATE
34
67C-14380-00-00
PRIME STARTER ASSY
35
67C-14567-00-00
SCREW
36
67C-1432A-10-00
PLUG
37
67C-14369-00-00
DIAPHRAGM ASSY 2
38
92990-04600-00
WASHER, PLATE
39
91490-06012-00
PIN. COTTER
40
67C-13974-00-00
PIPE, FUEL 4
41
67C-14974-00-00
LEVER, CONNECT
42
67C-14356-00-00
CLIP
43
67C-14398-00-00
WASHER
44
67C-14325-00-00
SCREW, PAN HEAD
45
67C-14245-00-00
SCREW, STOP
46
67C-14242-00-00
SPRING
47
67C-14264-00-00
COLLAR
48
67C-14275-00-00
SPRING
