Intake 1 Каталог оригинальных запчастей для лодочных моторов Yamaha F225TLR (2008)

ОПТОВО-РОЗНИЧНЫЙ МАГАЗИН МОТОЗАПЧАСТЕЙ

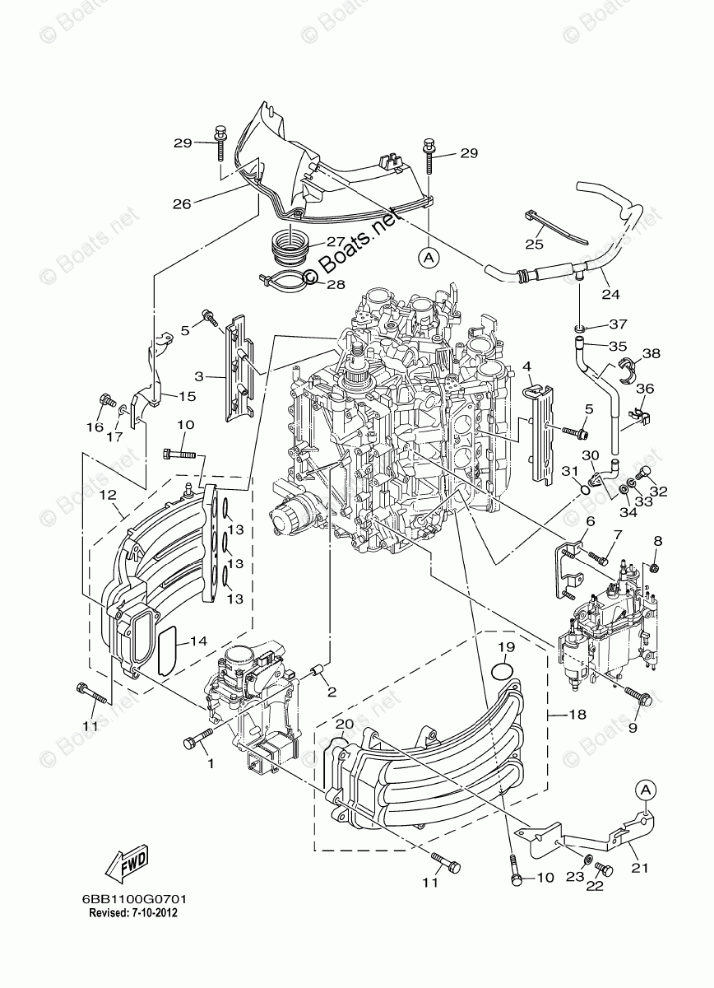

Intake 1

Yamaha F225TLR

Intake 1

#

oem код

название

цена

1

BOLT, WITH WASHER

BOLT, WITH WASHER

2

PIN, DOWEL

PIN, DOWEL

3

6P2-13564-00-00

COVER, MANIFOLD

COVER, MANIFOLD

4

6P2-13594-00-00

COVER, MANIFOLD 2

COVER, MANIFOLD 2

5

BOLT, HEXAGON SOCKET HEAD

BOLT, HEXAGON SOCKET HEAD

6

6P2-24422-00-00

PLATE

PLATE

7

BOLT, WITH WASHER

BOLT, WITH WASHER

8

NUT

NUT

9

BOLT, WITH WASHER

BOLT, WITH WASHER

10

BOLT, WITH WASHER

BOLT, WITH WASHER

11

BOLT, WITH WASHER

BOLT, WITH WASHER

12

6BB-13641-00-00

MANIFOLD 1

MANIFOLD 1

13

6P2-13645-00-00

GASKET, MANIFOLD 1

GASKET, MANIFOLD 1

14

6BB-13646-00-00

GASKET, MANIFOLD 2

GASKET, MANIFOLD 2

15

6BB-13898-00-00

HOLDER

HOLDER

16

BOLT

BOLT

17

WASHER

WASHER

18

6BB-13642-00-00

MANIFOLD 2

MANIFOLD 2

19

6P2-13645-00-00

GASKET, MANIFOLD 1

GASKET, MANIFOLD 1

20

6BB-13646-00-00

GASKET, MANIFOLD 2

GASKET, MANIFOLD 2

21

6BB-13898-10-00

HOLDER

HOLDER

22

BOLT

BOLT

23

WASHER

WASHER

24

6P2-15373-01-00

PIPE, BREATHER

PIPE, BREATHER

25

CLAMP

CLAMP

26

6P2-14440-00-00

SILENCER ASSY, INTAKE

SILENCER ASSY, INTAKE

27

6P2-1441J-00-00

PIPE, SILENCER

PIPE, SILENCER

28

CLAMP

CLAMP

29

BOLT, WITH WASHER

BOLT, WITH WASHER

30

6P2-11372-00-00

NIPPLE, HOSE

NIPPLE, HOSE

31

O-RING

O-RING

32

BOLT

BOLT

33

WASHER, SPRING

WASHER, SPRING

34

WASHER

WASHER

35

6P2-11377-00-00

HOSE

HOSE

36

CLAMP

CLAMP

37

CLAMP

CLAMP

38

CLAMP

CLAMP
