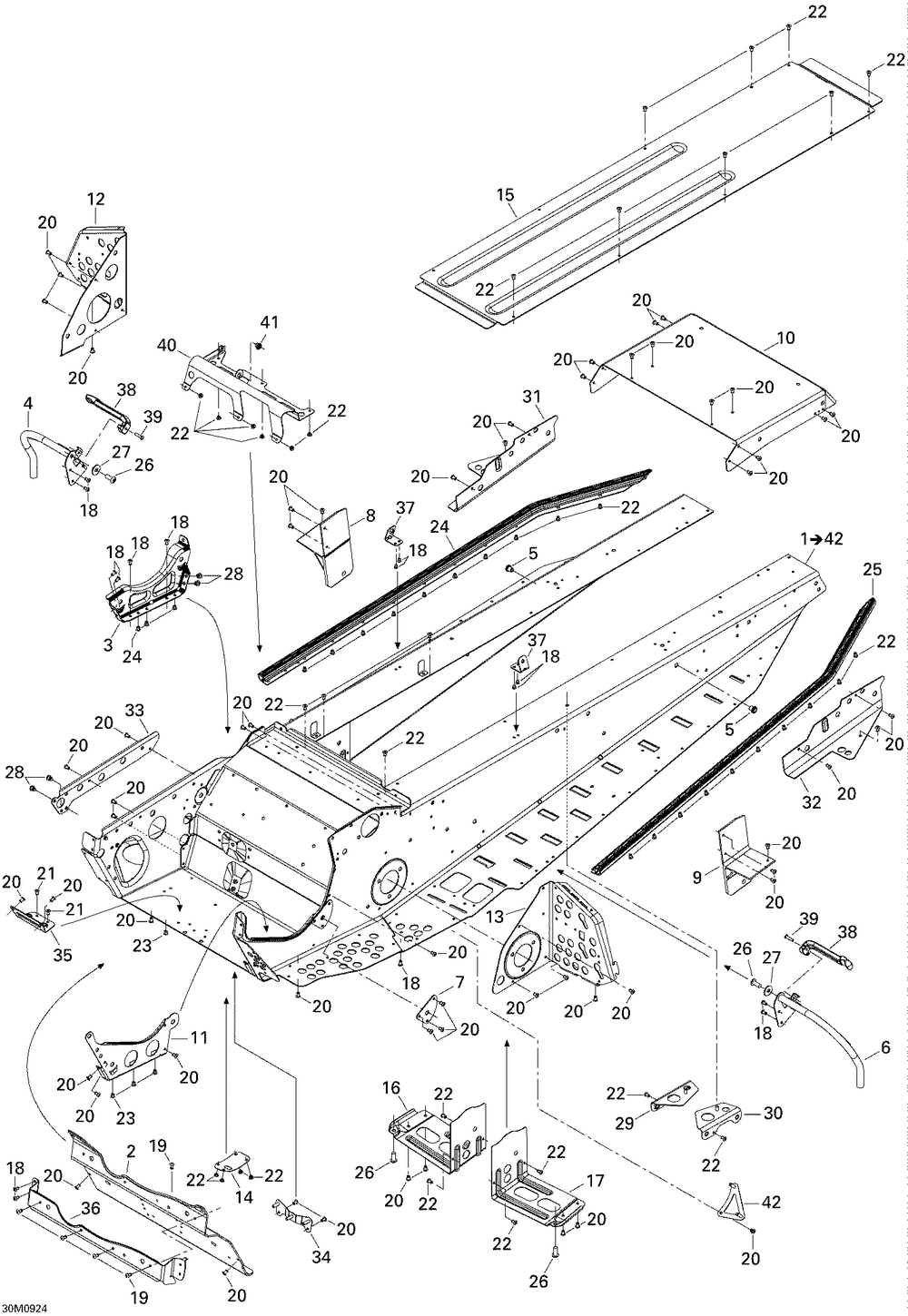

Рама

Ski-Doo (Bombardier) Skandic Tundra
Ski-Doo (Bombardier)
#oem кодцена
1
415129309
Chassis *frame Service (includes 1 To 43 )
2
518325042
Tablier Avant *front Pan
3
518323346
Supp.moteur *engine Support
4
518324162
Sup.acc.pi.dr.s*supp-toe Hold Rh Weld
5
415107300
Вставка
6
518324163
Sup.acc.pi.ga.s*supp-toe Hold Lh Weld
7
518323507
Renfort Ext. *reinf. Outer
8
518325343
Att.susp.dr. *slide Brkt Rh
9
518325344
Att.susp.ga. *slide Brkt Lh
10
518325199
Protecteur *wire Protector
11
518323995
Renfort Int. *inner Reinforc
12
518323805
Renfort Droit *rh.footrest
13
518324527
Renfort Gauche *reinforcement
14
518324169
Пластина
15
518323996
Пластина
16
518325345
Marche-pied Dr.*footrest-rh
17
518325346
Marche-pied Ga.*footrest-lh
18
390909200
Заклепка
19
390909100
Заклепка
20
390402200
Заклепка 3/16
21
390402300
Заклепка 3/16
22
390402400
Заклепка 3/16
23
390910300
Rivet Henrob *rivet-henrob
24
518324957
Rouleau Droit *rh.roller
25
518324958
Rouleau Gauche *lh.roller
26
205982086
Screw-socket Bn.hd.s.grip Iso.7380
27
234082410
Шайба
28
293150096
Заклепка
29
518324385
Renfort Tunnel *frame Form. Reinf.
30
518324386
Renfort Tunnel *frame Form. Reinf.
31
518325039
Doublure Tun.dr*liner-tun.rh
32
518325040
Doublure Tun.ga*liner-tun.lh<
33
518323328
Raidisseur *stiffener
34
518324599
Attache *holder
35
518324207
Attache Soude *weld Plate Hol
36
518324220
Renf. Frontale *front Reinf.
37
518324688
Attache *.bracket
38
517302448
Защелка панели
39
390410100
Заклепка 3/16
40
518323532
Supp.silenc.adm*sup-intake Air
41
293450232
Вставка
42
518324312
Attache Pompe *bracket Pump
