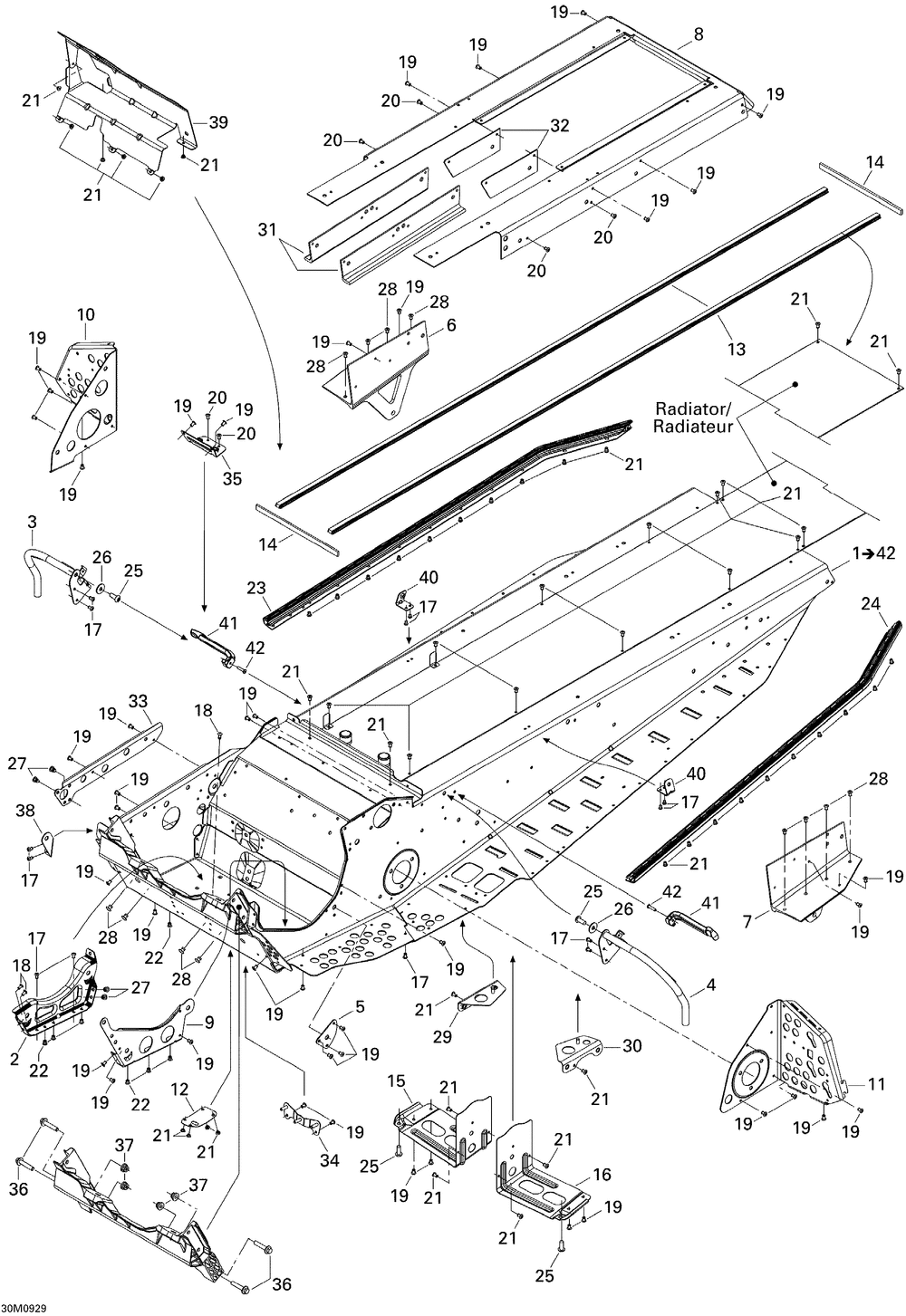

Рама

Ski-Doo (Bombardier) Skandic Tundra LT V800 4-TEC
Ski-Doo (Bombardier)
#oem кодцена
1
415129296
Chassis *frame Service (includes 1 To 42 )
2
518323346
Supp.moteur *engine Support
3
518324162
Sup.acc.pi.dr.s*supp-toe Hold Rh Weld
4
518324163
Sup.acc.pi.ga.s*supp-toe Hold Lh Weld
5
518323507
Renfort Ext. *reinf. Outer
6
518325485
Att.susp.dr. *slide Brkt Rh
7
518325483
Att.susp.ga. *slide Brkt Lh
8
518325495
Rallonge Tunnel*extention Frame
9
518323995
Renfort Int. *inner Reinforc
10
518325196
Renfort Droit *rh.footrest
11
518324527
Renfort Gauche *reinforcement
12
518324169
Пластина
13
518325532
Защита
14
293200104
Прокладка
15
518325549
Marche-pied Dr.*footrest-rh
16
518325551
Marche-pied Ga.*footrest-lh
17
390909200
Заклепка
18
390909100
Заклепка
19
390402200
Заклепка 3/16
20
390402300
Заклепка 3/16
21
390402400
Заклепка 3/16
22
390910300
Rivet Henrob *rivet-henrob
23
518325153
Rouleau Droit *rh.roller
24
518325154
Rouleau Gauche *lh.roller
25
205982086
Screw-socket Bn.hd.s.grip Iso.7380
26
234082410
Шайба
27
293150096
Заклепка
28
293150119
Заклепка
29
518324385
Renfort Tunnel *frame Form. Reinf.
30
518324386
Renfort Tunnel *frame Form. Reinf.
31
518325498
Corniere *corner
32
518325502
Проставка
33
518323328
Raidisseur *stiffener
34
518324599
Attache *holder
35
518324207
Attache Soude *weld Plate Hol
36
207684044
Винт
37
233281414
Гайка
38
518324906
Support Droit *right Support
39
514054097
Deflecteur *heat Shield
40
518324688
Attache *.bracket
41
517302448
Защелка панели
42
390410100
Заклепка 3/16
