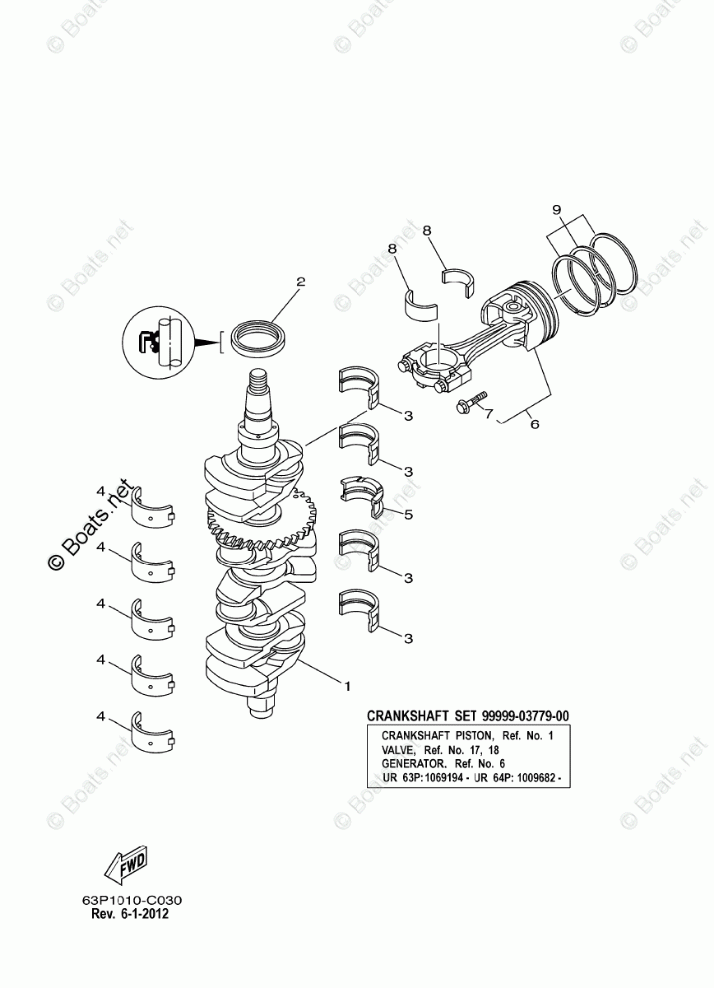

Crankshaft Piston

Yamaha LF150TXR
Yamaha
#oem кодцена
1
99999-03779-00
CRANKSHAFT SET
2
93102-60004-00
OIL SEAL
3
63P-11416-11-00
PLANE BEARING, CRANKSHAFT 1
3
63P-11416-01-00
PLANE BEARING, CRANKSHAFT 1
3
63P-11416-21-00
PLANE BEARING, CRANKSHAFT 1
4
63P-11417-11-00
PLANE BEARING, CRANKSHAFT 2
4
63P-11417-21-00
PLANE BEARING, CRANKSHAFT 2
4
63P-11417-31-00
PLANE BEARING, CRANKSHAFT 2
4
63P-11417-01-00
PLANE BEARING, CRANKSHAFT 2
5
63P-11426-00-00
BEARING, THRUST 1
5
63P-11426-10-00
BEARING, THRUST 1
5
63P-11426-20-00
BEARING, THRUST 1
6
63P-W1164-01-00
PISTON/CONROD ASSY(STD)
6
63P-W1164-10-00
PISTON/CON-ROD ASSY(0.25MM OS)
7
63P-11654-01-00
BOLT, CONNECTING ROD
8
63P-11656-01-00
PLANE BEARING, CONNECTING ROD
8
63P-11656-11-00
PLANE BEARING, CONNECTING ROD
8
63P-11656-21-00
PLANE BEARING, CONNECTING ROD
9
63P-11604-00-00
PISTON RING SET (0.25MM OS)
9
63P-11603-01-00
PISTON RING SET (STD)
