Bracket 2 TR Каталог оригинальных запчастей для лодочных моторов Yamaha F25ELH (2005)

ОПТОВО-РОЗНИЧНЫЙ МАГАЗИН МОТОЗАПЧАСТЕЙ

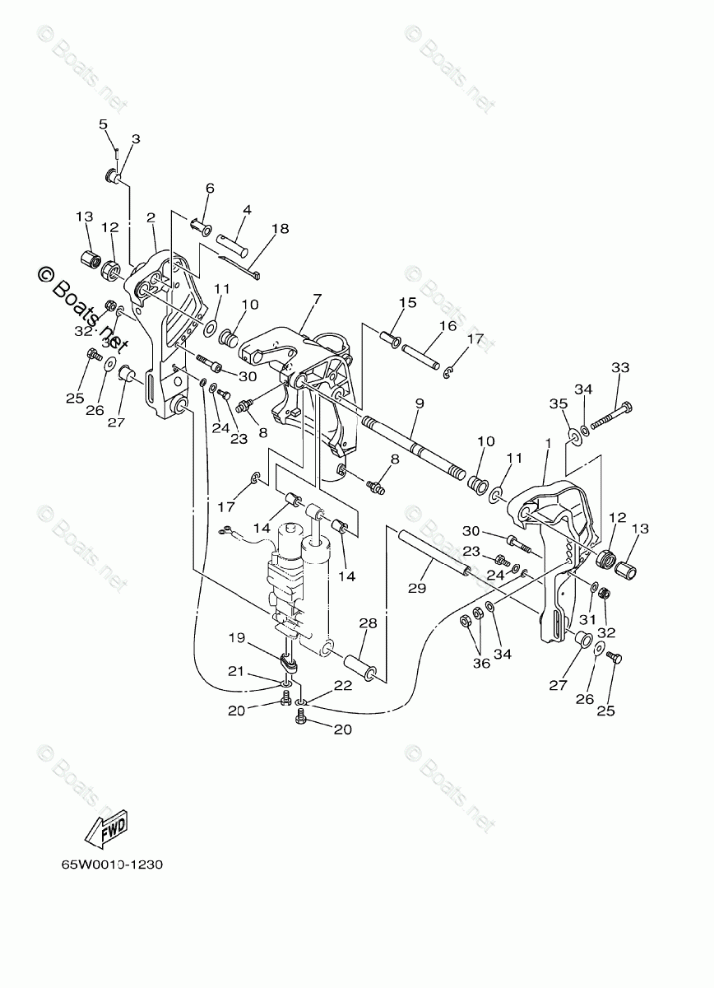

Bracket 2 TR

Yamaha F25ELH

Bracket 2 TR

#

oem код

название

цена

1

65W-43111-10-4D

BRACKET, CLAMP 1

BRACKET, CLAMP 1

2

65W-43112-10-4D

BRACKET, CLAMP 2

BRACKET, CLAMP 2

3

65W-43192-00-00

KNOB, STOPPER

KNOB, STOPPER

4

65W-43191-00-00

SHAFT, STOPPER

SHAFT, STOPPER

5

PIN, SPRING

PIN, SPRING

6

BUSH

BUSH

7

65W-43311-10-4D

BRACKET, SWIVEL 1

BRACKET, SWIVEL 1

8

NIPPLE, GREASE

NIPPLE, GREASE

9

63D-43131-01-00

BOLT, CLAMP BRACKET

BOLT, CLAMP BRACKET

10

BUSH

BUSH

11

WASHER, PLATE

WASHER, PLATE

12

NUT, SELF-LOCKING

NUT, SELF-LOCKING

13

6G5-43145-01-00

CAP, CLAMP BRACKET

CAP, CLAMP BRACKET

14

BUSH

BUSH

15

BUSH

BUSH

16

PIN

PIN

17

СТОПОРНОЕ КОЛЬЦО

СТОПОРНОЕ КОЛЬЦО

18

CLAMP

CLAMP

19

65W-45251-00-00

ANODE

ANODE

20

BOLT

BOLT

21

6H1-82148-00-00

WIRE, LEAD 4

WIRE, LEAD 4

22

6U0-82127-00-00

WIRE, LEAD 2

WIRE, LEAD 2

23

BOLT

BOLT

24

WASHER

WASHER

25

BOLT

BOLT

26

WASHER, PLATE

WASHER, PLATE

27

BUSH

BUSH

28

BUSH

BUSH

29

PIN

PIN

30

BOLT, HEXAGON SOCKET HEAD

BOLT, HEXAGON SOCKET HEAD

31

WASHER

WASHER

32

NUT, SELF-LOCKING

NUT, SELF-LOCKING

33

BOLT

BOLT

34

WASHER

WASHER

35

WASHER, PLATE

WASHER, PLATE

36

NUT

NUT
