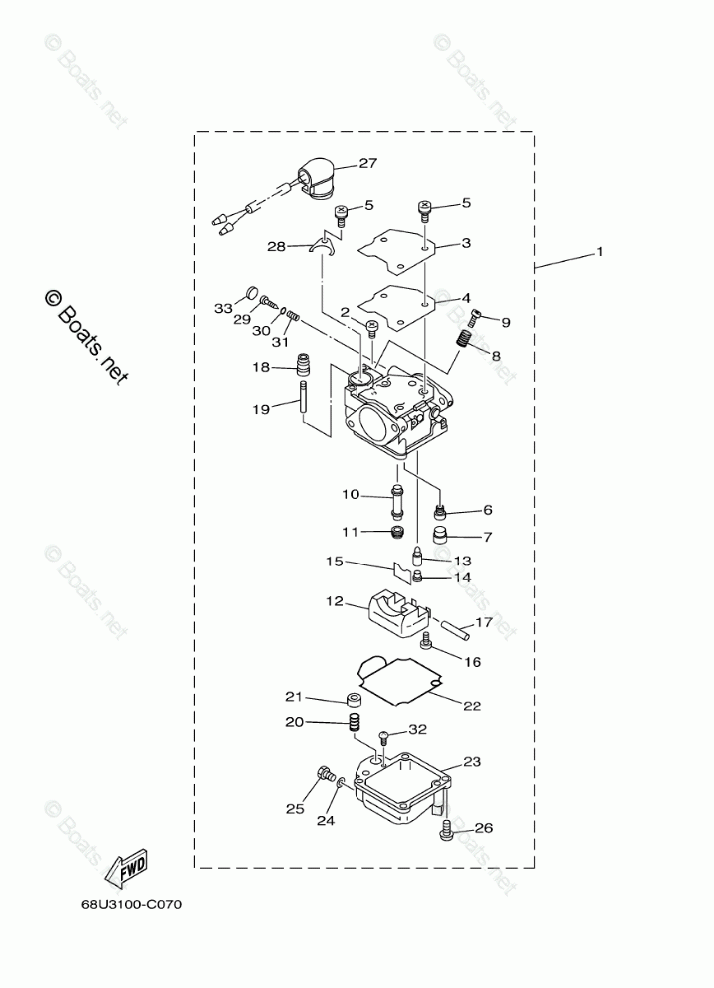

CARBURETOR

Yamaha F25ESR
Yamaha
#oem кодцена
1
65W-14901-60-00
CARBURETOR ASSY 1
1
65W-14901-50-00
CARBURETOR ASSY 1
2
98580-04006-00
SCREW, PAN HEAD
3
65W-14572-00-00
PLATE
4
65W-14126-10-00
GASKET
5
97803-04010-00
SCREW, PAN HEAD
6
676-14948-07-00
JET (#50)
7
679-14966-00-00
RUBBER CAP
8
90501-10326-00
SPRING, COMPRESSION
9
63V-14523-00-00
SCREW, STOP
10
65W-14947-00-00
JET, NEEDLE
11
65W-14943-29-00
JET, MAIN (#112)
12
63V-14985-00-00
FLOAT
13
6G1-14546-01-00
VALVE, NEEDLE
14
676-14186-00-00
PIN, FLOAT
15
663-14159-00-00
CLIP
16
98580-04008-00
SCREW, PAN HEAD
17
6H4-14548-00-00
PIN, FLOAT ARM
18
65W-14373-01-00
COVER, PLUNGER CAP
19
65W-14379-00-00
ROD, STARTER
20
65W-14335-00-00
SPRING, PLUNGER
21
65W-14371-00-00
PLUNGER, STARTER
22
65W-14384-00-00
GASKET, FLOAT CHAMBER
23
65W-14980-00-00
BODY, FLOAT CHAMBER
23
65W-14980-20-00
BODY, FLOAT CHAMBER
24
65W-14398-00-00
GASKET
25
65W-14992-00-00
SCREW, DRAIN
26
97980-04114-00
SCREW, WITH WASHER
27
65W-14380-00-00
PRIME STARTER ASSY
27
65W-14380-20-00
PRIME STARTER ASSY
28
65W-14346-00-00
PLATE
29
67C-14923-00-00
SCREW, PILOT
30
67C-14397-00-00
O-RING
31
67C-14555-00-00
SPRING
32
67C-14567-00-00
SCREW
33
67C-1432A-00-00
PLUG
