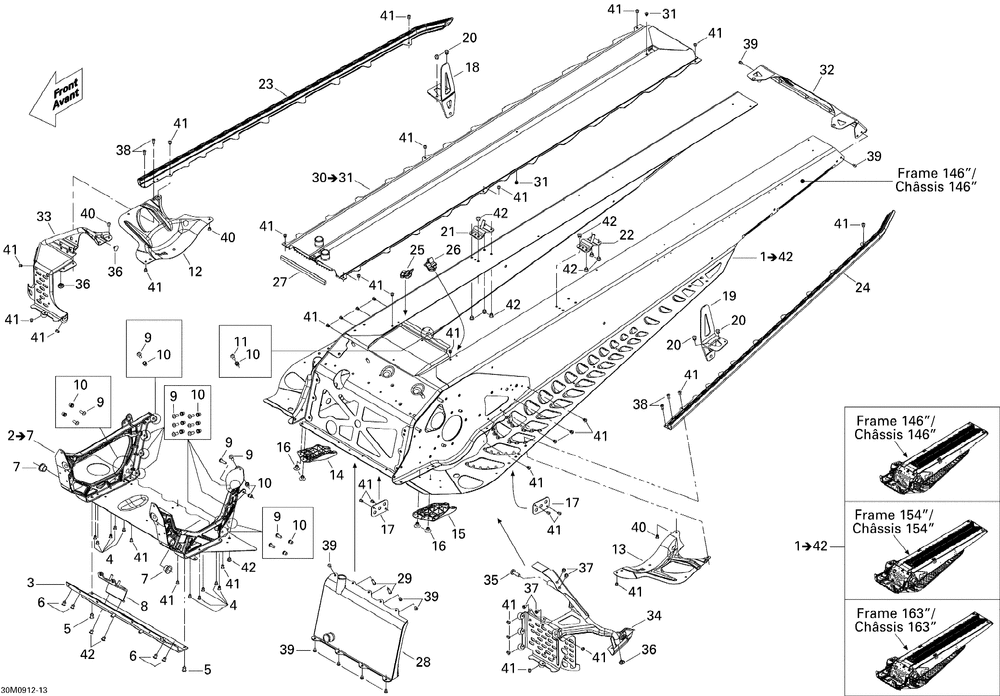

Рама Запчасти для снегоходов Ski-Doo (Bombardier) Summit X 800R Power T.E.K. (2009)

Рама

Ski-Doo (Bombardier) Summit X 800R Power T.E.K.

oem код

название

цена

415129389

Chassis *frame Service (includes 1 To 42 )

415129387

Chassis *frame Service (includes 1 To 42 )

415129386

Chassis *frame Service (includes 1 To 42 )

518326069

Module E *module E (includes 2 To 7 )

518325091

Traverse Avant *front Member

293150144

Rivet Stavex *stavex Rivet

293150147

Заклепка

293150119

Заклепка

505070954

Втулка уплотнительная

518325943

Support Mag *mag Support

207662044

Винт

233261414

Гайка

518324874

Renfort Dr *reinforcement

518324875

Renfort Ga *reinforcement

518325782

Deflecteur Dr. *rh Deflector

518325783

Deflecteur Ga. *lh Deflector

293150104

Заклепка 3/16

518201321

Plaque Renfort *plate-reinf.

518324976

Attache Droite *rh.bracket

518324977

Кронштейн

518325973

Embase Arrire *rear Base

518325974

Embase Arrire *rear Base

518325159

Rouleau Droit *rh.roller

518325160

Rouleau Gauche *lh.roller

518325653

Joint Droit *seal Rh

518325654

Joint Gauche *seal Lh

293200105

Joint Etanche *neoprene Seal

518325714

Radiateur Avant*front Radiator

250300027

Goujon Sertir*clinch Stud

518325668

Radiateur Arr.s*rear Rad. Weld (includes 30 To 31 )

518325669

Radiateur Arr.s*rear Rad. Weld (includes 30 To 31 )

518325670

Radiateur Arr.s*rear Rad. Weld (includes 30 To 31 )

518325421

Capuchon *rear Cap

518326032

Etrier Droit *rh.stirup

Etrier Ga *lh.stirup

Винт

Dard 5-6 *dart 5-6

Вставка

Заклепка 3/16

Заклепка

Заклепка

Rivet Hemlok *hemlok Rivet

518326070

Module E *module E (includes 2 To 7 )

518326486

Radiateur Avant*front Radiator

518326843

Module E *module E (includes 2 To 7 )

Изолирующая втулка

Винт

Заклепка

Radiateur Avant*front Radiator

293150144

Rivet Stavex *stavex Rivet

293150144

Rivet Stavex *stavex Rivet
