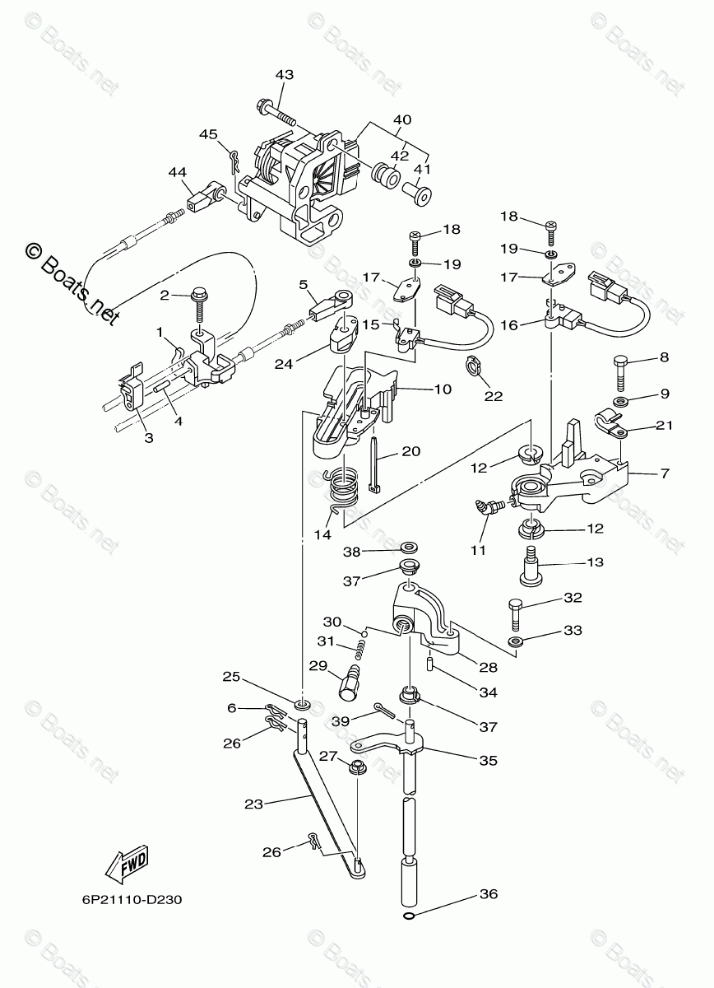

Control Каталог оригинальных запчастей для лодочных моторов Yamaha LF250TUR (2005)

ОПТОВО-РОЗНИЧНЫЙ МАГАЗИН МОТОЗАПЧАСТЕЙ

Control

Yamaha LF250TUR

Control

#

oem код

название

цена

1

6P2-48531-00-00

BRACKET, REMOTE CONTROL 1

BRACKET, REMOTE CONTROL 1

2

BOLT

BOLT

3

63P-48538-00-00

CLAMP, CABLE 1

CLAMP, CABLE 1

4

PIN, SPRING

PIN, SPRING

5

6E5-48344-00-00

CABLE END, REMOTE CONTROL

CABLE END, REMOTE CONTROL

6

CLIP

CLIP

7

69J-44117-00-1S

BRACKET

BRACKET

8

BOLT

BOLT

9

WASHER

WASHER

10

69J-44176-01-1S

BRACKET

BRACKET

11

NIPPLE, GREASE

NIPPLE, GREASE

12

BUSH

BUSH

13

BOLT

BOLT

14

SPRING, TORSION

SPRING, TORSION

15

60V-8259F-00-00

SWITCH ASSY

SWITCH ASSY

16

69J-8259F-00-00

SWITCH ASSY

SWITCH ASSY

17

61A-82588-01-00

PLATE

PLATE

18

SCREW, PAN HEAD

SCREW, PAN HEAD

19

WASHER

WASHER

20

CLAMP

CLAMP

21

CLAMP

CLAMP

22

CLAMP

CLAMP

23

6P2-44121-00-00

LEVER, SHIFT ROD

LEVER, SHIFT ROD

24

69J-44122-00-00

BUSHING, SHIFT ROD LEVER

BUSHING, SHIFT ROD LEVER

25

WASHER, PLATE

WASHER, PLATE

26

CLIP

CLIP

27

BUSH

BUSH

28

69J-44118-00-00

BRACKET

BRACKET

29

648-42715-00-00

BUSHING

BUSHING

30

BALL

BALL

31

SPRING, COMPRESSION

SPRING, COMPRESSION

32

BOLT

BOLT

33

WASHER

WASHER

34

PIN, SPRING

PIN, SPRING

35

69J-44120-10-00

HANDLE GEAR SHIFT ASSY

HANDLE GEAR SHIFT ASSY

35

69J-44120-00-00

HANDLE GEAR SHIFT ASSY

HANDLE GEAR SHIFT ASSY

36

O-RING

O-RING

37

BUSH

BUSH

38

WASHER, PLATE

WASHER, PLATE

39

PIN. COTTER

PIN. COTTER

40

6P2-8A410-00-00

SENSOR UNIT

SENSOR UNIT

41

6P2-44139-00-00

COLLAR

COLLAR

42

6P2-41273-00-00

GROMMET

GROMMET

43

BOLT, WITH WASHER

BOLT, WITH WASHER

44

6E5-48344-00-00

CABLE END, REMOTE CONTROL

CABLE END, REMOTE CONTROL

45

CLIP

CLIP
