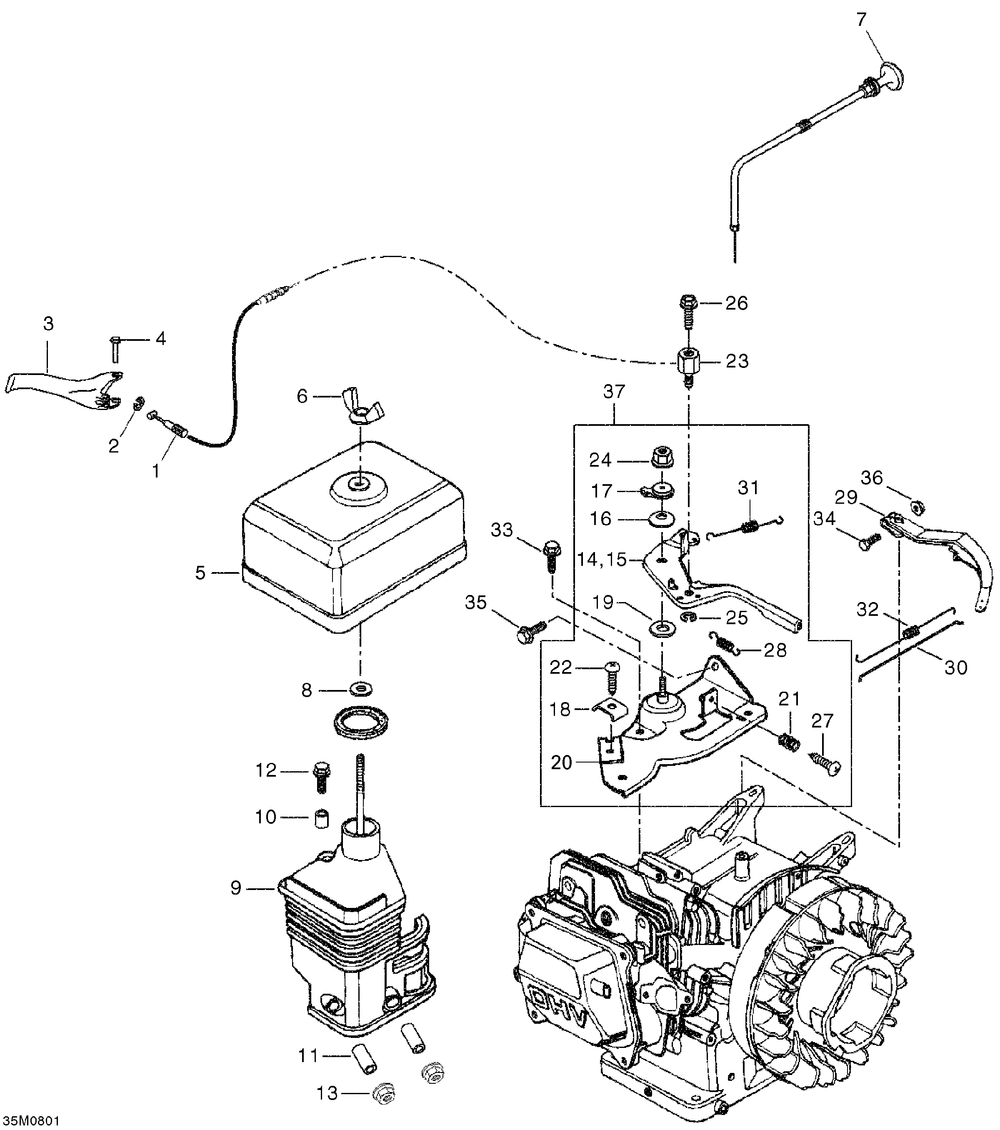

Система забора воздуха

Ski-Doo (Bombardier) Mini Z
Ski-Doo (Bombardier)
#oem кодцена
1
512060024
Трос газа
2
414274500
Стопор
5
H17230ZE0820
Couvercle Admi.*cover-intake
6
H90325044000
Гайка
7
415108600
Трос подсоса
8
234461608
Washer-lock Serrated Din.6798a-a2
9
H17410ZE0030
Coude *elbow (includes 23 - 25. )
10
H17239ZE1000
Collet B *collar B
11
H17238ZE0010
Хомут
12
H957010602000
Boulon Fl.6x20 *bolt Fl.6x20
13
H9405006080
Ecrou Fl.6mm *nut Fl.6mm
14
H16500ZH7810
Commande Ass. *control Assy. (includes 28 - 40. )
15
H16571ZH7000
Levier *lever Control
16
H16574ZE1000
Ressort *spring Lever
17
H16575ZH8000
Шайба
18
H16576891000
Porte Cable *holder-cable
19
H16578ZE1000
Втулка
20
H16580ZH7810
Base *base
21
H16584883300
Пружина
23
H16594883010
Porte Cable *holder-cable
24
H90114SA0000
Гайка
25
H90605230000
Стопорное кольцо
26
H93500040060H
Винт
27
H93500050250H
Винт
28
512059048
Пружина
29
H16551ZE1010
Bras *arm Governor
30
H16555ZE0000
Tige *rod Governor
31
H16561ZE0020
Ressort *spring Governor
32
H16562ZE0020
Ressort *spring Thro.
33
H90013883000
Винт
34
H90015ZE5010
Boulon *bolt
35
H90022888010
Vis *screw Fl.6x20
37
H16500ZK7U50
Commande Ass. *control Assy.
36
H9405006080
Ecrou Fl.6mm *nut Fl.6mm
