Рама Запчасти для снегоходов Ski-Doo (Bombardier) MX Z 600RS (2008)

ОПТОВО-РОЗНИЧНЫЙ МАГАЗИН МОТОЗАПЧАСТЕЙ

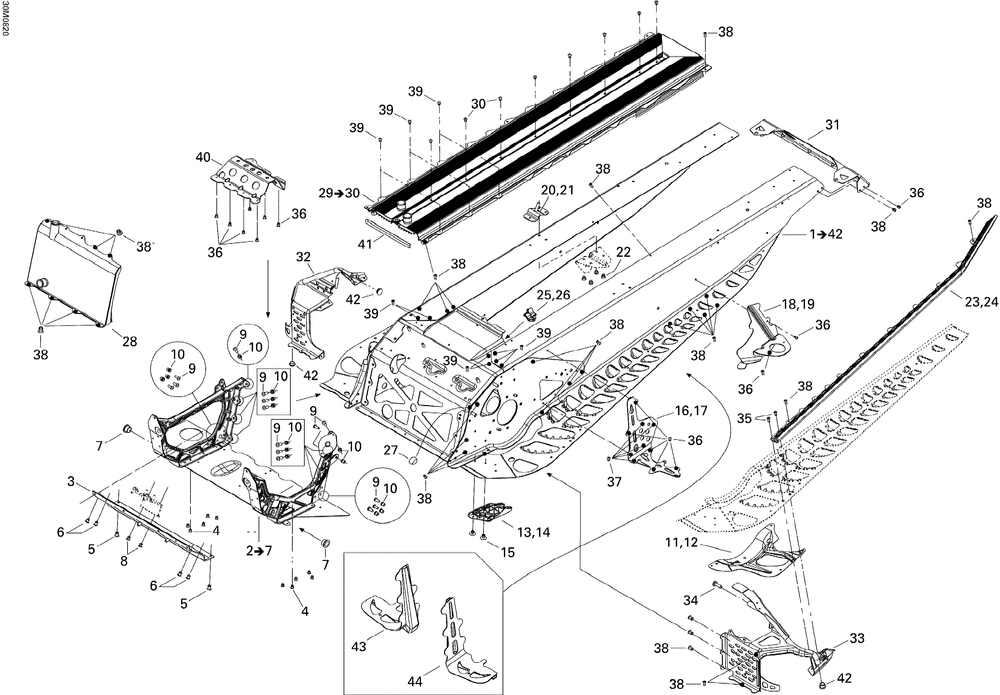

Рама

Ski-Doo (Bombardier) MX Z 600RS

Рама

#

oem код

название

цена

1

Chassis *frame Service (includes 1 To 42 )

Chassis *frame Service (includes 1 To 42 )

2

Module E *module E (includes 2 To 7 )

Module E *module E (includes 2 To 7 )

3

Traverse Avant *front Member

Traverse Avant *front Member

4

Rivet Stavex *stavex Rivet

Rivet Stavex *stavex Rivet

5

Заклепка

Заклепка

6

Заклепка

Заклепка

7

Втулка уплотнительная

Втулка уплотнительная

9

Винт

Винт

10

Гайка

Гайка

11

Renfort Dr *reinforcement

Renfort Dr *reinforcement

12

Renfort Ga *reinforcement

Renfort Ga *reinforcement

13

Deflecteur Dr. *rh Deflector

Deflecteur Dr. *rh Deflector

14

Deflecteur Ga. *lh Deflector

Deflecteur Ga. *lh Deflector

15

Заклепка 3/16

Заклепка 3/16

16

Attache Dr *rh Support

Attache Dr *rh Support

17

Attache Ga *lh Support

Attache Ga *lh Support

18

Attache Dr *rh Support

Attache Dr *rh Support

19

Attache Ga *lh Support

Attache Ga *lh Support

20

Embase Arrire *rear Base

Embase Arrire *rear Base

21

Embase Arrire *rear Base

Embase Arrire *rear Base

23

Rouleau Droit *roller-rh

Rouleau Droit *roller-rh

24

Rouleau *roller-lh

Rouleau *roller-lh

25

Joint Droit *seal Rh

Joint Droit *seal Rh

26

Joint Gauche *seal Lh

Joint Gauche *seal Lh

27

Rondelle *adhesive Patch

Rondelle *adhesive Patch

28

Radiateur Avant*front Radiator

Radiateur Avant*front Radiator

29

Radiateur Arr.s*rear Rad. Weld (includes 29 To 30 )

Radiateur Arr.s*rear Rad. Weld (includes 29 To 30 )

30

Заклепка

Заклепка

31

Capuchon *rear Cap

Capuchon *rear Cap

32

Repose Pied *rh.footrest

Repose Pied *rh.footrest

33

Repose Pied *lh.footrest

Repose Pied *lh.footrest

34

Винт

Винт

35

Заклепка 3/16

Заклепка 3/16

36

Заклепка

Заклепка

40

Traverse Centr.*cross-link

Traverse Centr.*cross-link

41

Joint Etanche *neoprene Seal

Joint Etanche *neoprene Seal

42

Dard 5-6 *dart 5-6

Dard 5-6 *dart 5-6

1

Chassis *frame Service (includes 1 To 42 )

Chassis *frame Service (includes 1 To 42 )

2

Module E *module E (includes 2 To 7 )

Module E *module E (includes 2 To 7 )

16

Attache Dr *rh Support

Attache Dr *rh Support

17

Attache Ga *lh Support

Attache Ga *lh Support

28

Radiateur Avant*front Radiator

Radiateur Avant*front Radiator

2

Module E *module E (includes 2 To 7 )

Module E *module E (includes 2 To 7 )

7

Изолирующая втулка

Изолирующая втулка

8

Заклепка

Заклепка

22

Заклепка

Заклепка

28

Radiateur Avant*front Radiator

Radiateur Avant*front Radiator

32

Etrier Droit *rh.stirup

Etrier Droit *rh.stirup

37

Заклепка

Заклепка

38

Rivet Stavex *stavex Rivet

Rivet Stavex *stavex Rivet
