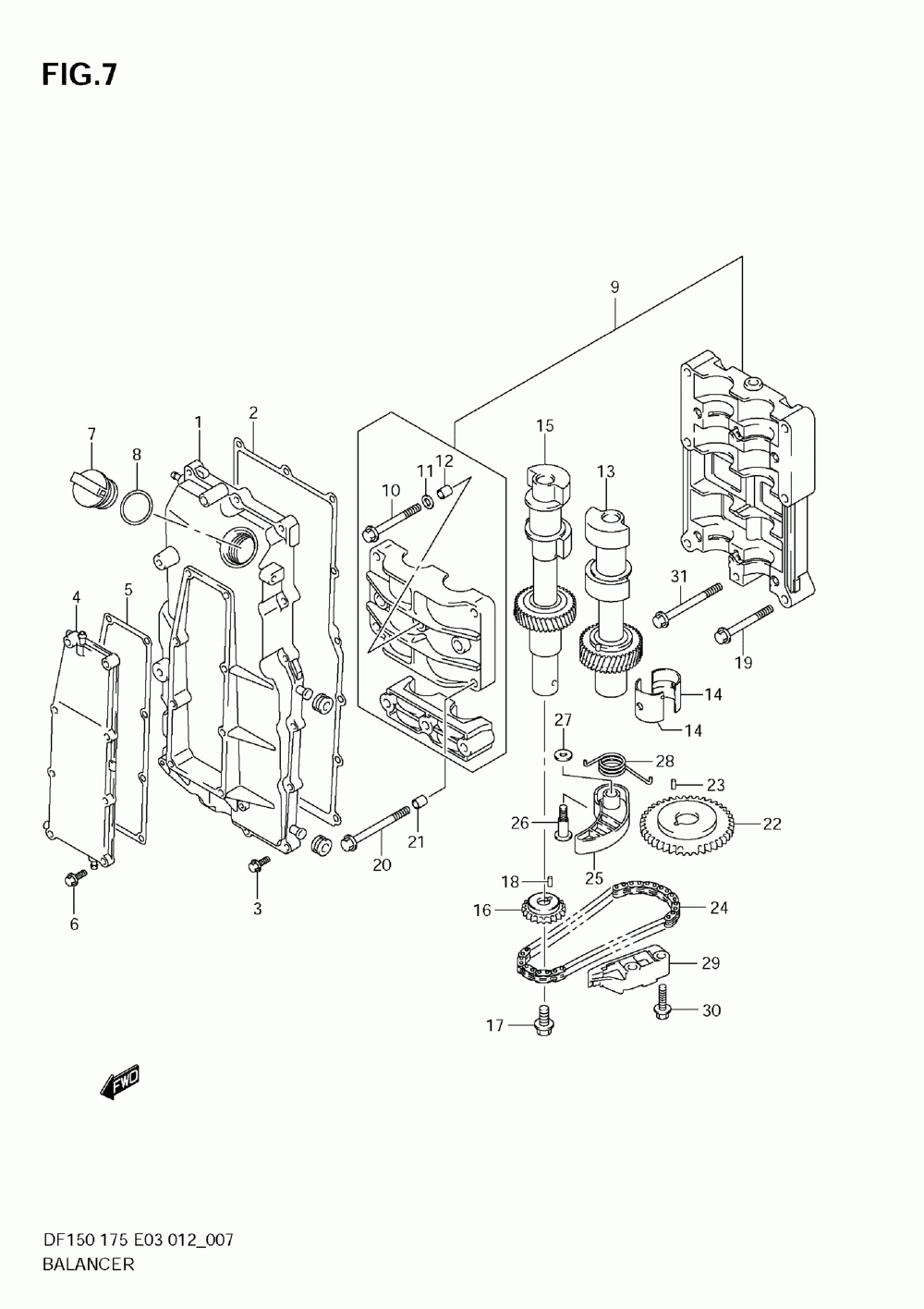

Валансирный вал

Suzuki Marine DF150/DF175 L2
Suzuki Marine
#oem кодцена
1
11330-96J10
Cover, Balancer
2
11332-96J00
Gasket, Balancer
3
01550-06257
Болт
4
11340-96J00
Cover Comp, Bala
5
11342-96J00
Gasket, Bal Wtr
6
01550-06257
Болт
7
11382-93J00
Крышка заливная
8
09280-26006
O Ring D:3.1 Id
10
12643-96J00
Bolt, Balancer
11
12644-96J00
Шайба
12
04211-11129
11 X 12 Dowel P
14
12645-96J00
Подшипник
16
12665-96J00
Sprocket, Bal Dr
17
01550-1020A
Болт
18
04221-04089
Pin 4x8
19
09103-08414
Bolt, Bal Housin
20
09103-08423
Bolt, Bal Housin
21
04211-11129
11 X 12 Dowel P
22
12662-96J00
Sprocket, Bal Dr
23
09202-05032
Pin, Camshaft Ti
24
12670-96J00
Chain Comp, Bala
25
12671-96J01
Tensioner, Balan
26
12672-96J01
Bolt, Balncr Cha
27
09160-08079
Шайба
28
12673-96J00
Spring, Bal Chai
29
12695-96J00
Guide, Balancer
30
01550-0825A
Болт
31
09103-08158
Bolt 8 X 75
17A
09160-10039
Cylinder Head W (not Illustrated (10.5x22x2.3) )
9-1
12600-96J01
Housing Assy, Ba
9-2
12600-96J01
Housing Assy, Ba (210508~ For Df150t 210020~ For Df175z )
13-1
12600-96800
Shaft Assy,bala (->12600-96800 Balancer Set, Stbd/port )
13-2
12660-96J02
Balancer, Port (210508~ For Df150t 210020~ For Df175z )
15-1
12600-96800
Shaft Assy,bala (->12600-96800 Balancer Set, Stbd/port )
15-2
12650-96J01
Balancer, Stbd (210508~ For Df150t 210020~ For Df175z )
