Suzuki Marine DF150/DF175 L2

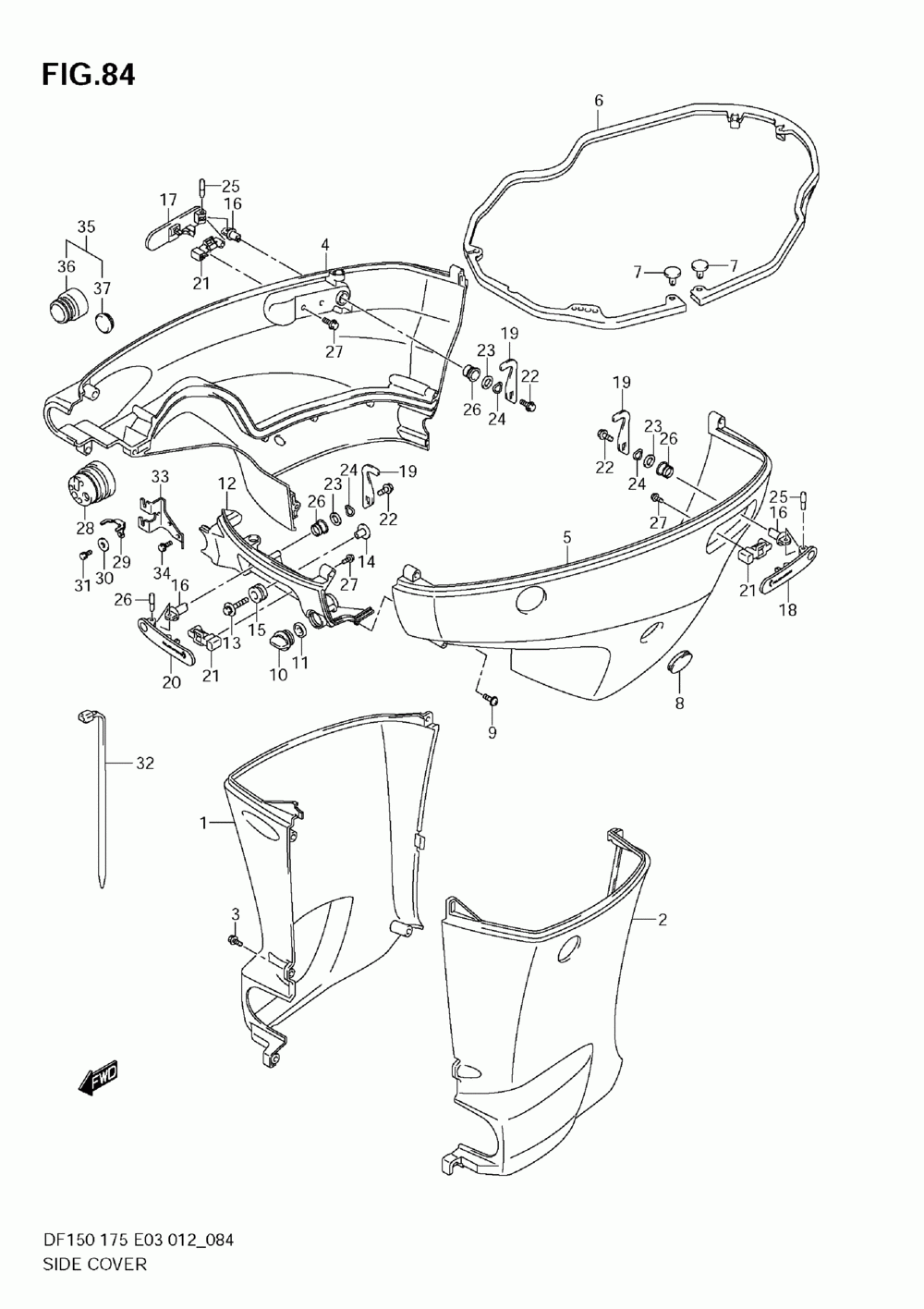

Side cover (df150z)

#

oem код

название

цена

1

61131-96J12-0EP

Cover, Oil Pan S ( (black) )

Cover, Oil Pan S ( (black) )

2

61141-96J12-0EP

Cover, Oil Pan P ( (black) )

Cover, Oil Pan P ( (black) )

3

Screw, Oil Pan C

Screw, Oil Pan C

4

61811-96J20-0EP

Cover, Side Stbd

Cover, Side Stbd

5

61821-96J10-0EP

Cover, Side Port

Cover, Side Port

6

Seal, Side Cover

Seal, Side Cover

7

09409-05302-5PK

Штифт

Штифт

8

Plug, Side Cover

Plug, Side Cover

9

Screw, 6x35

Screw, 6x35

10

Plug, Water

Plug, Water

11

Gasket, Water Pl

Gasket, Water Pl

13

Bolt 8 X 40

Bolt 8 X 40

14

Шайба

Шайба

15

Подушка

Подушка

16

Shaft, Engine Co

Shaft, Engine Co

17

Lever, Hook Rear

Lever, Hook Rear

18

Lever, Hook Rear

Lever, Hook Rear

19

Hook, Engine Cov

Hook, Engine Cov

20

Lever, Hook Fron

Lever, Hook Fron

21

Latch, Hook Leve

Latch, Hook Leve

22

Bolt 6x12

Bolt 6x12

23

Washer, 13.2x25x

Washer, 13.2x25x

24

Упругая Шайба

Упругая Шайба

25

Pin, Hook Lever,

Pin, Hook Lever,

26

Втулка

Втулка

27

Болт

Болт

28

Grommet, R/con C

Grommet, R/con C

29

Stopper, R/con C

Stopper, R/con C

30

Шайба

Шайба

31

Болт

Болт

32

Зажим

Зажим

33

Holder, R/con Ca

Holder, R/con Ca

34

Болт

Болт

35

Hose Adtdf150-d (opt)

Hose Adtdf150-d (opt)

36

Adapter, Hose (opt)

Adapter, Hose (opt)

37

Plug (opt)

Plug (opt)
