Side cover (df175t) Каталог оригинальных запчастей для лодочных моторов Suzuki Marine DF150/DF175 L2 (2012)

Главная
Каталог оригинальных запчастей для лодочных моторов
Suzuki Marine
2012
DF150/DF175 L2

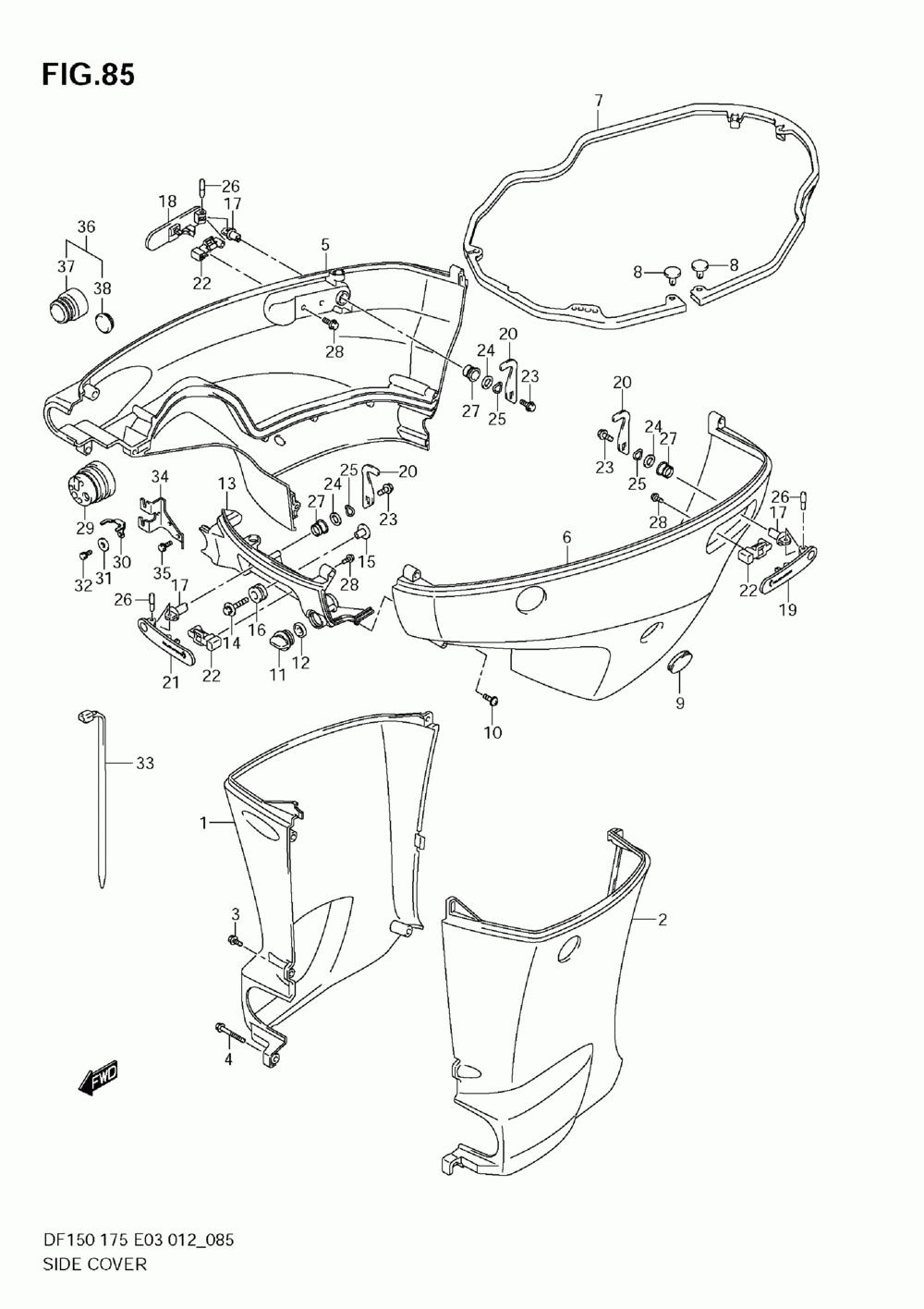

Side cover (df175t)
Side cover (df175t)

Side cover (df175t)

Suzuki Marine DF150/DF175 L2

oem код

название

цена

09139-06147

Bolt, Oil Pan Co (transom(l))

Cover, Side Stbd

Cover, Side Port

Seal, Side Cover

Штифт

Plug, Side Cover

Screw, 6x35

Plug, Water

Gasket, Water Pl

Bolt 8 X 40

Шайба

Подушка

Shaft, Engine Co

Lever, Hook Rear

Lever, Hook Rear

Hook, Engine Cov

Lever, Hook Fron

Latch, Hook Leve

Bolt 6x12

Washer, 13.2x25x

Упругая Шайба

Pin, Hook Lever,

Втулка

Болт

Grommet, R/con C

Stopper, R/con C

Шайба

Болт

Зажим

Holder, R/con Ca

Болт

Hose Adtdf150-d (opt)

67361-93J00

Adapter, Hose (opt)

09250-21003

Plug (opt)

1-1

61131-96J02-0EP

Cover, Oil Pan S ( (black) )

1-2

61131-96J12-0EP

Cover, Oil Pan S ( (black) )

2-1

61141-96J02-0EP

Cover, Oil Pan P ( (black) )

2-2

61141-96J12-0EP

Cover, Oil Pan P ( (black) )

3-1

09139-06135

Screw, Oil Pan C (transom(l))

3-2

09139-06135

Screw, Oil Pan C (transom(x))
