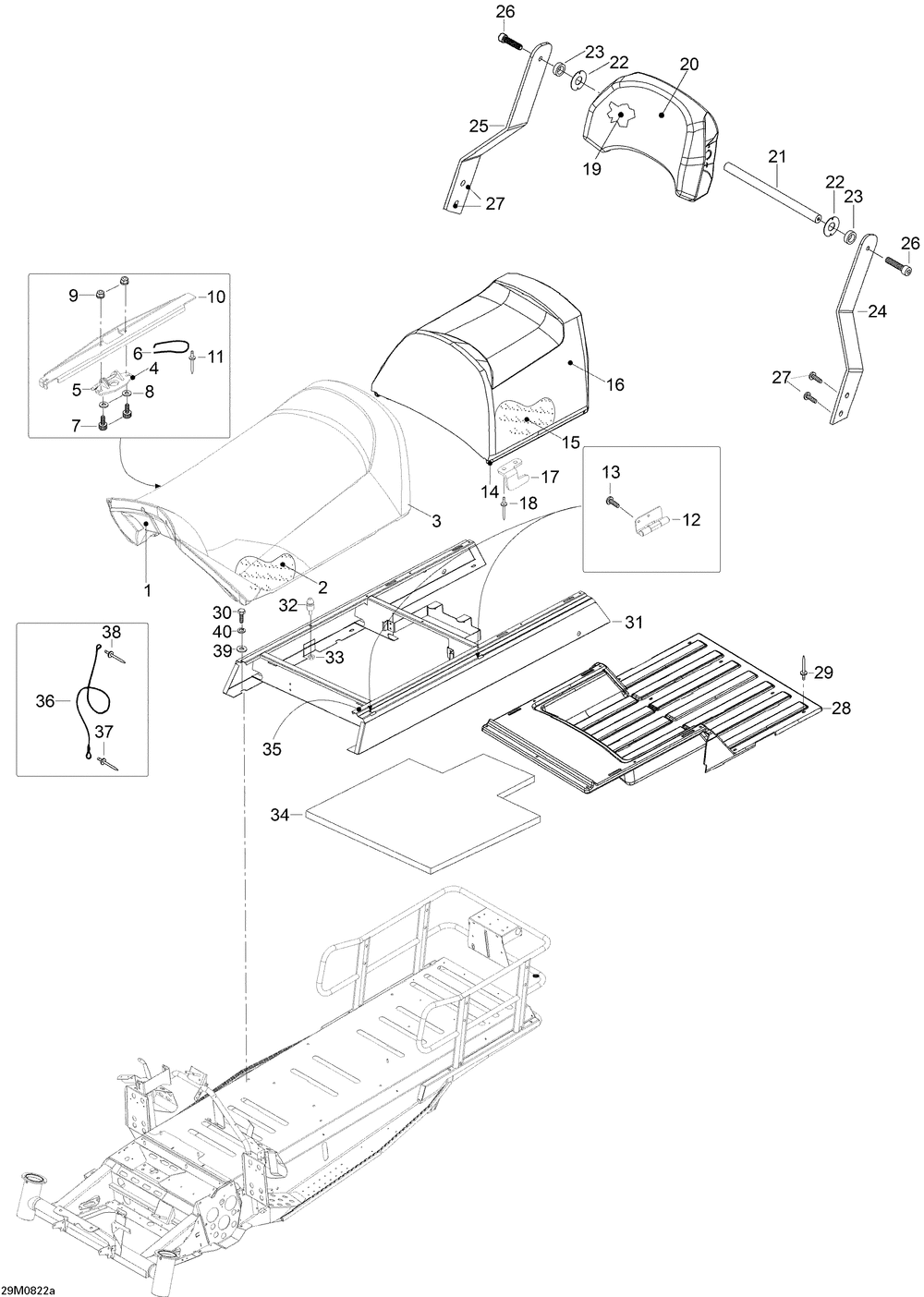

09- seat swt 550f

Ski-Doo (Bombardier) Skandic SWT 550F
Ski-Doo (Bombardier)
#oem кодцена
1
605251388
Sous Siege Ava.*front Seat Base (kit P/n 605155187 )
2
605255689
Front Foam Seat (kit P/n 605155187 )
3
605255216
Housse De Siege*seat Cover (kit P/n 605155187 )
4
269700076
Couv.loquet *cover-latch (kit P/n 605155187 )
5
269700077
Levier Loquet *lever-latch (kit P/n 605155187 )
6
269700017
Ressort Loquet *spring-latch (kit P/n 605155187 )
7
M40276
Allen Screw M6 X 25din 912m8.8zne (kit P/n 605155187 )
8
234061410
Washer-flat M6 Din.125a (kit P/n 605155187 )
9
232561414
Nut-stop Elastic Din.985 (kit P/n 605155187 )
10
605352483
Plaque Sup. *support Plate (kit P/n 605155187 )
11
M36088
Rivet *rivet (kit P/n 605155187 )
12
605351798
Charniere *hinge Plate Assy (kit P/n 605155187 )
13
M40890
Screw (kit P/n 605155187 )
14
605251390
Sous Siege Ar. *rear Seat Base (kit P/n 605155187 )
15
605255691
Rear Seat Foam High Density Foam (kit P/n 605155187 )
16
605255218
Seat Cover, Suv (rear) (kit P/n 605155187 )
17
605351808
Verrou *locking Plate L.h (kit P/n 605155187 )
17
605352007
Verrou *locking Plate R.h (kit P/n 605155187 )
18
M36087
Rivet *rivet (kit P/n 605155187 )
19
510004365
Mousse De Doss.*foam-backrest (kit P/n 605155187 )
20
605355498
Backrest Cover Tuv (kit P/n 605155187 )
21
605355357
Axle-backrest (kit P/n 605155187 )
22
605355358
Washer (kit P/n 605155187 )
23
510004378
Cale Caoutchouc*shim-rubber (kit P/n 605155187 )
24
605355503
Bras Ga *side Support Lh (kit P/n 605155187 )
25
605355504
Bras Dr *side Support Rh (kit P/n 605155187 )
26
605640010
Screw M10x20 Zn -10.9 Iso7380(1=25pcs) (kit P/n 605155187 )
27
M40316
Vis *screw (kit P/n 605155187 )
28
605154593
Couvercle *tunnel Cover
29
M36036
Заклепка
30
207161644
Винт
31
605254706
Base De Siege *seat Box Weld
32
605452035
Axe De Blocage *lock Pin
34
605352460
Поролон
35
M28413
Baguette Etan. *sealing Strip
36
M546777
Cable Retenue *cable-retainer
37
M36037
Заклепка
38
M36489
Заклепка
39
M20009
Шайба
40
234161471
Шайба
11
36088
Rivet Avibulb 4.8x8.8 Zn(1=25pcs) (kit P/n 605155187 )
33
232561414
Гайка с тефлоном
