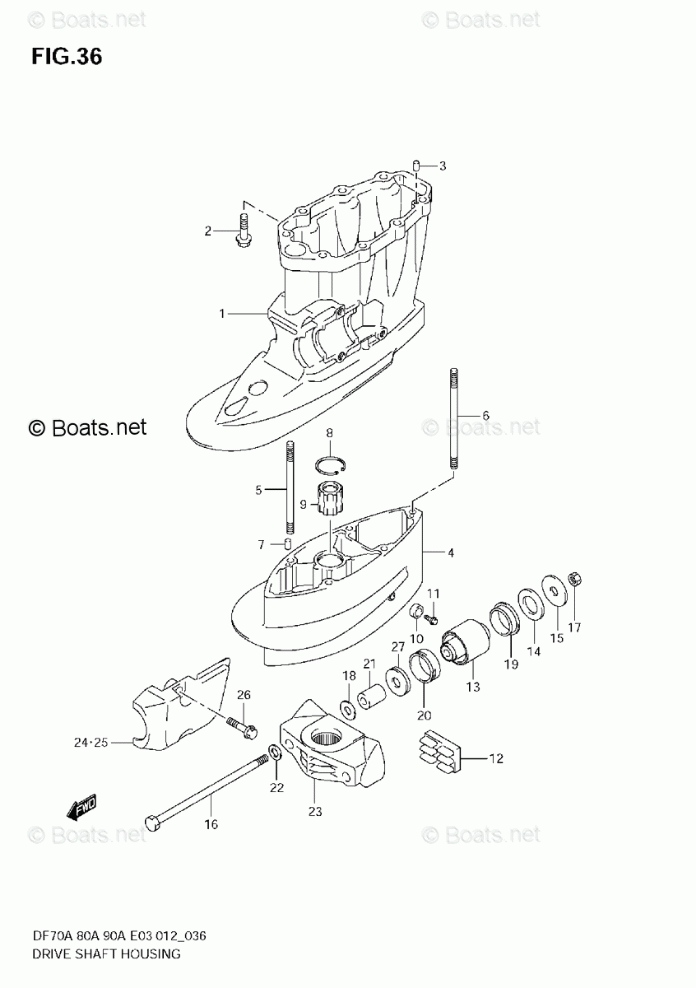

КОРПУС ПРИВОДНОГО ВАЛА

Suzuki Marine DF 80ATX
Suzuki Marine
#oem кодцена
1
52111-87L00-0EP
HOUSING, DRIVE SHAFT
2
09116-10139
BOLT (10X44)
3
09202-08006
PIN
4
52131-87L00-0EP
CASE, EXTENSION *{TRANSOM(X)}*
5
09108-10115
STUD BOLT *{TRANSOM(X)}*
6
09108-10157
STUD BOLT *{TRANSOM(X)}*
7
09202-08006
PIN *{TRANSOM(X)}*
8
09381-40005
CIRCLIP *{TRANSOM(X)}*
9
57130-87E02
BUSH, DRIVE SHAFT *{TRANSOM(X)}*
10-2
55321-87J10
ANODE (MAGNESIUM) *{OPT TRANSOM(X)}*
10-1
55321-87J00
ANODE, PROTECTION *{TRANSOM(X)}*
11
09103-06281
BOLT (6X14) *{TRANSOM(X)}*
12
54151-87L00
MOUNT, LOWER THRUST
13
54160-87L00
MOUNT, LOWER
14
54165-87L00
DAMPER, REVERSE STOPPER LWR
15
09160-12120
WASHER (12X48X3)
16
54166-88L00
BOLT, LOWER MOUNT
17
09159-12014
NUT
18
09160-12113
WASHER (12.5X30X2.5)
19
54167-87L01
MOUNT, LOWER SIDE
20
54167-87L10
MOUNT, FWD LOWER SIDE
21
54173-87L00
SPACER, LOWER MOUNT
22
54114-90J01
WASHER, LOWER MOUNT BOLT
23
54211-90J01-0EP
BRACKET, LOWER MOUNT
24
54221-87L00-0EP
COVER, LOWER MOUNT STBD
25
54231-87L00-0EP
COVER, LOWER MOUNT PORT
26
09116-10139
BOLT (10X44)
27
54180-87L00
DAMPER, FWD STOPPER
