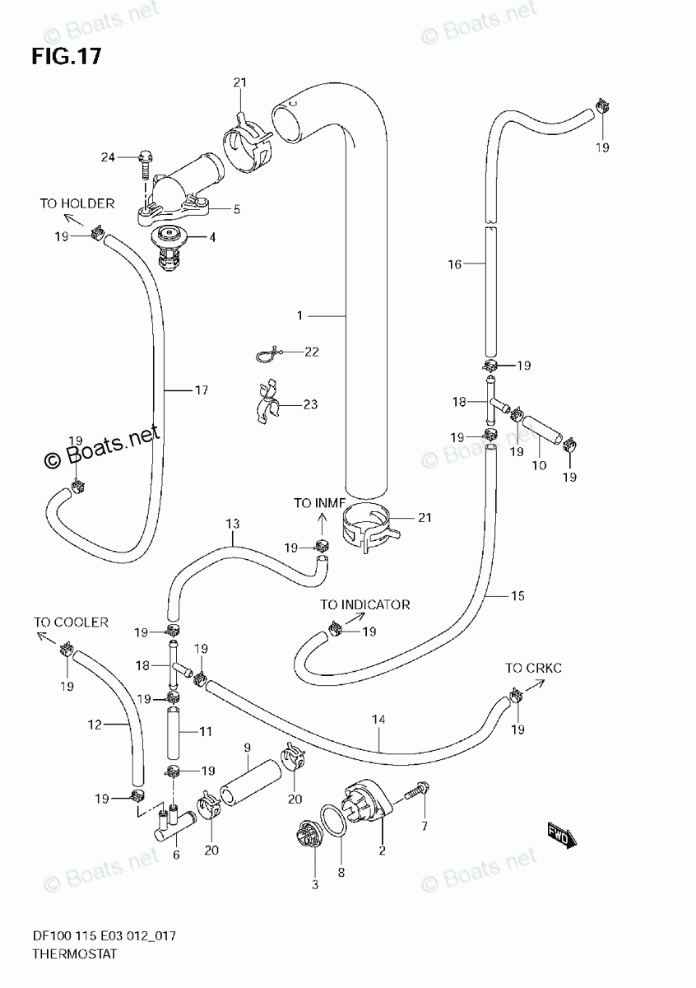

ТЕРМОСТАТ

Suzuki Marine DF100TX
Suzuki Marine
#oem кодцена
1
11196-90J00
HOSE, WATER RETURN
2
17611-90J00-0EP
COVER, WATER PRESS VALVE *{BLACK}*
3
17660-90J00
VALVE, WATER PRESSURE
4-1
17670-90J00
THERMOSTAT (60 C)
4-2
17670-90J10
THERMOSTAT (71 C) *{OPT}*
5
17681-90J01
COVER, THERMOSTAT
6
17711-90J00
3 WAY, WATER HOSE
7
09116-06121
BOLT (6X25)
8
09280-26006
O RING (D:3.1,ID:26.4)
9
09352-11153-600
HOSE (11X15X600) *{L:600->50 HOLDER TO 3 WAY}*
10
09352-50903-600
HOSE (5X9X600) *{L:600->50 INMF COVER TO 3 WAY}*
11
09352-50903-600
HOSE (5X9X600) *{L:600->70 3 WAY TO 3 WAY}*
12
09352-50903-600
HOSE (5X9X600) *{L:600->160 3 WAY TO COOLER}*
13
09352-50903-600
HOSE (5X9X600) *{L:600->200 3 WAY TO INMF}*
14
09352-50903-600
HOSE (5X9X600) *{L:600->370 3 WAY TO CRKC LOWER}*
15
09352-50903-600
HOSE (5X9X600) *{L:600->370 3 WAY TO INDICATOR}*
16
09352-50903-600
HOSE (5X9X600) *{L:600->450 CRKC UPPER TO 3 WAY}*
17
09352-50903-00B
HOSE (5X9X600) *{L:2000->690 COOLER TO HOLDER}*
18
09367-06002
JOINT,3 WAY
19
09401-08413
CLIP
20
09401-14409
CLIP
21
09401-31407
CLIP
22
09408-00024
CLIP
23
09408-00069
CLIP
24
01550-06257
BOLT
